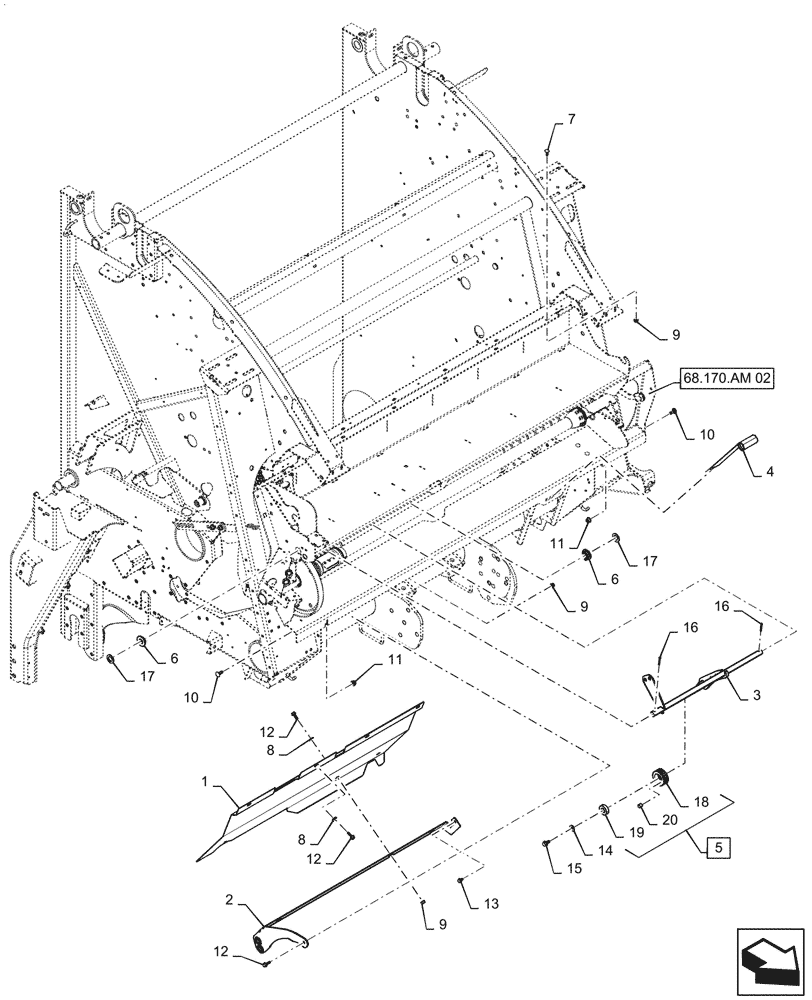

Запчасти Case IH RB465 (68.170.AM[04]) - VAR - 726666, 726964 - NET WRAP NET BRAKE AND SHIELD, YFN188619 AND AFTER (68) - TYING/WRAPPING

1

47925326

SHIELD

Net/Twine

1шт.

2

47894621

SUPPORT

1шт.

3

47756692

SHAFT

Net Counter Roller

1шт.

4

87026611

SHEET METAL

Net Stuffer

1шт.

5

84569292

ROLLER

Net Counter, Incl 18 - 20

1шт.

6

87521161

BUSHING,20.2mm ID x 44.5mm OD x 10.5mm Thk

2шт.

7

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

6шт.

8

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

6шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

10шт.

10

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

2шт.

11

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

12

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

13

381014

SCREW,Flng, M8 x 16mm

1шт.

14

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

15

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.

16

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

2шт.

17

140021

WASHER,22mm ID x 37mm OD x 3mm Thk

3шт.

18

NSS

NOT SOLD SEPARAT

Net Counter Roller, Incl with 5

1шт.

19

NSS

NOT SOLD SEPARAT

Net Counter Roller Bearing, Incl with 5

1шт.

20

NSS

NOT SOLD SEPARAT

Net Counter Pin, Incl with 5

1шт.
