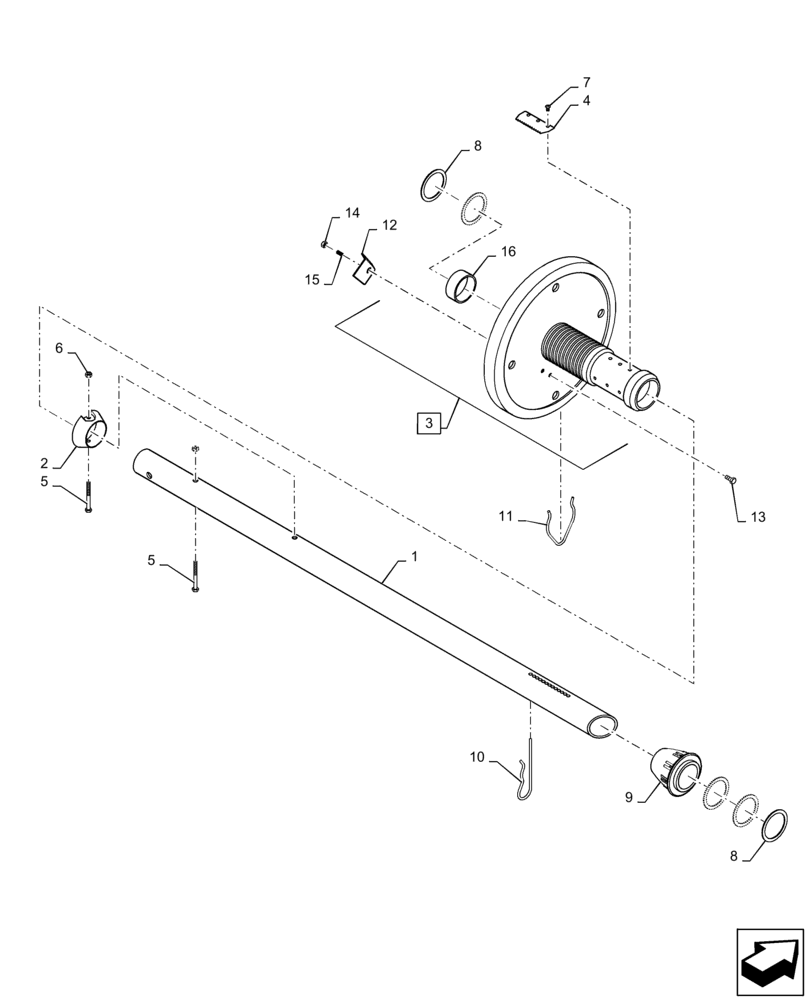

Запчасти Case IH RB465 (68.170.AF[02]) - VAR - 726666, 726964 - NET WRAP, ROLL TUBE, YFN188619 AND AFTER (68) - TYING/WRAPPING

1

47769065

TUBE

1шт.

2

87016039

CONE

1шт.

3

47936342

BRAKE DRUM

Incl 16

1шт.

4

86627923

STRIP

4шт.

5

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

6

353308

NUT,M6 x 1.0, Cl 8

2шт.

7

87684280

SELF-TAP SCREW,Pan, #8 - 18 x 1/4"

12шт.

8

87016189

WASHER,51.18mm ID x 63.5mm OD x 1.65mm Thk

5шт.

9

86540330

GUIDE

1шт.

10

86601285

COTTER PIN,26mm OD x 118.5mm L

1шт.

11

86613336

COTTER PIN

1шт.

12

47401690

STOP

1шт.

13

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

14

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

15

29840

SPRING,Compression, 11.91mm OD x 25.4mm L

1шт.

16

86617942

BUSHING,48.96mm ID x 57.23mm OD x 19.1mm L

1шт.
