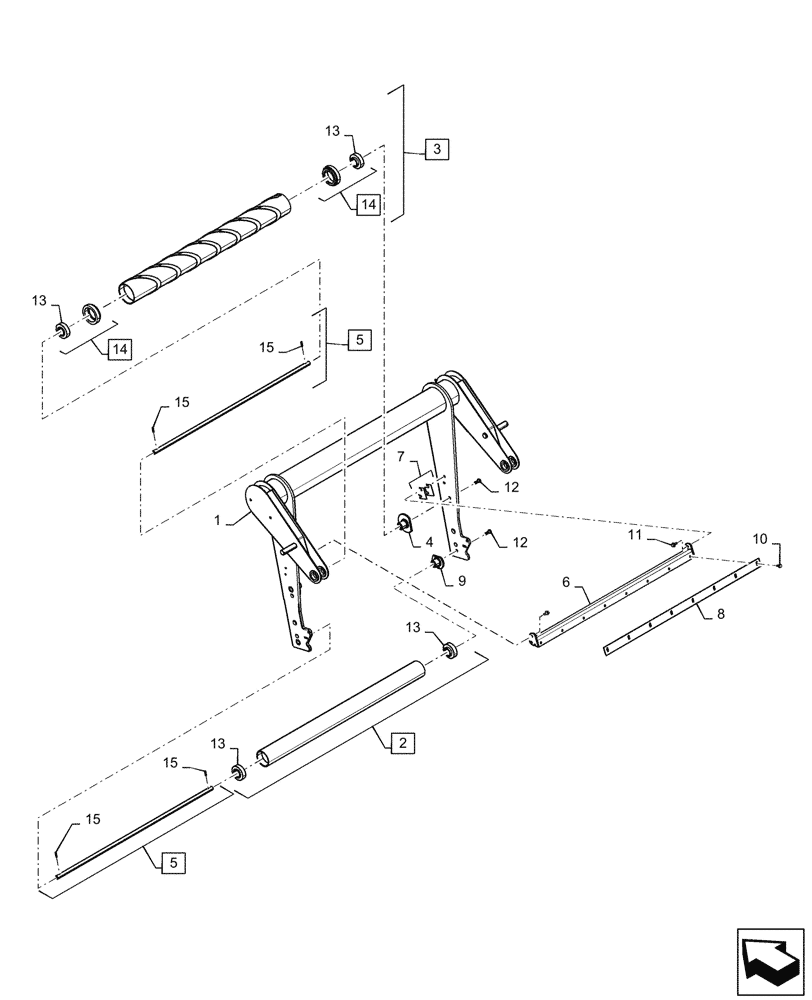

Запчасти Case IH RB465 (62.140.AR[04]) - BALE DENSITY TAKE UP ARM, ROLLERS, SCRAPER, SILAGE, YGN193203 AND AFTER (62) - PRESSING - BALE FORMATION

1

47689488

ARM

Take Up, with Single Bale Density Cylinder

1шт.

1

47689494

ARM

Take Up, with Dual Bale Density Cylinders

1шт.

2

47512226

ROLL

Incl 13

1шт.

3

84601406

ROLL

Incl 13

1шт.

4

86501067

SUPPORT

2шт.

5

9823372

SHAFT,1135mm L

Incl 15

1шт.

6

87040645

ANGLE

1шт.

7

47527692

SHIM,54mm OD x 0.4mm Thk

4шт.

8

9845575

SCRAPER BLADE

1шт.

9

47945176

BOLT

2шт.

10

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

11

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

12

86516322

SUPPORT

2шт.

13

47935418

BEARING HOUSING

Incl 14

2шт.

14

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

2шт.

15

130045

PIN,5mm OD x 26mm L, Slotted

2шт.
