(62.140.AR[03]) - BALE DENSITY TAKE UP ARM AND ROLLERS, DRY HAY, YGN193203 AND AFTER

Запчасти Case IH RB465 (62.140.AR[03]) - BALE DENSITY TAKE UP ARM AND ROLLERS, DRY HAY, YGN193203 AND AFTER (62) - PRESSING - BALE FORMATION

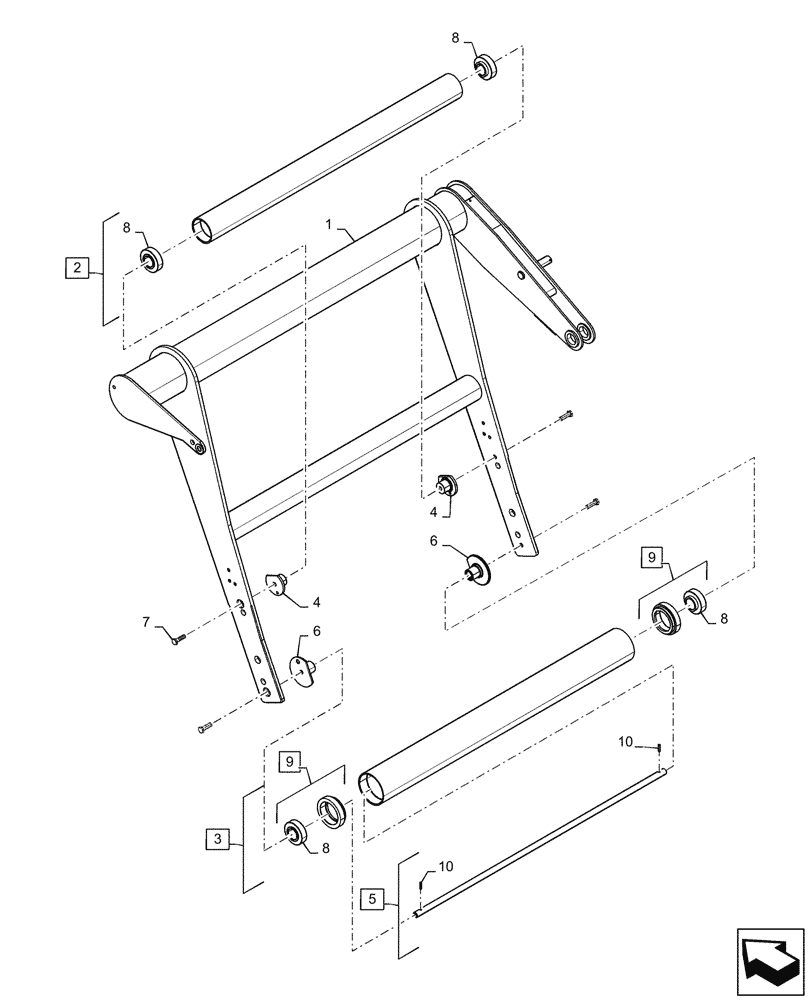

Схема запчастей Case IH RB465 - (62.140.AR[03]) - BALE DENSITY TAKE UP ARM AND ROLLERS, DRY HAY, YGN193203 AND AFTER (62) - PRESSING - BALE FORMATION
4
6
9
4
8
8
9
5
8
3
6
8
7
2
1
10
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47689488

ARM

Take Up

1шт.

2

84356720

ROLL,88.9mm OD x 1142mm L

Front Serpentine, Incl 8

1шт.

3

84601406

ROLL

Rear Serpentine, Incl 9

1шт.

4

86516321

SUPPORT

2шт.

5

9823372

SHAFT,1135mm L

Incl 10

1шт.

6

86516322

SUPPORT

2шт.

7

47945176

BOLT

2шт.

8

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

2шт.

9

47935418

BEARING HOUSING

Incl 8

2шт.

10

130045

PIN,5mm OD x 26mm L, Slotted

2шт.

Выбрано товаров: 10
