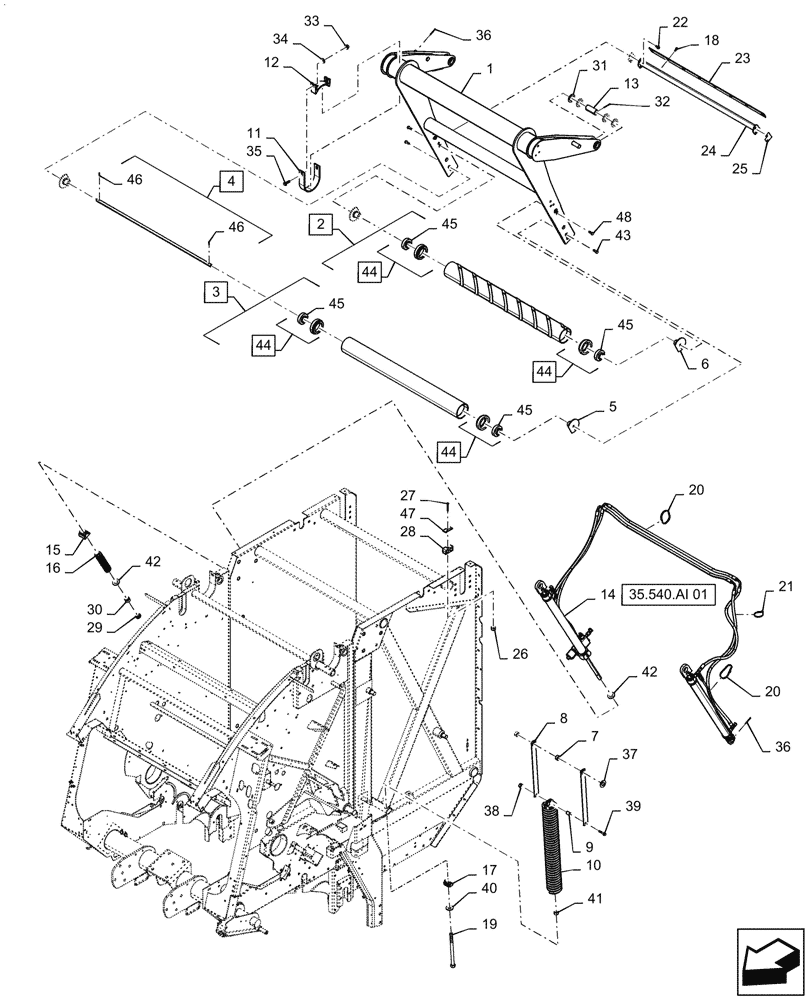

Запчасти Case IH RB465 (62.140.AQ[06]) - VAR - 726815 - BALE TENSION TAKE UP ARM AND TWO SPRINGS WITH LOOP ROLL, DUAL HYD. CYLINDERS, IN CAB CONTROL, YFN188619 AND AFTER (62) - PRESSING - BALE FORMATION

1

47689494

ARM

Take Up

1шт.

2

47512226

ROLL

Front Serpentine, Incl 44

1шт.

3

84601406

ROLL

Rear Serpentine, Incl 44

1шт.

4

9823372

SHAFT,1135mm L

Incl 46

1шт.

5

87654792

SUPPORT

2шт.

6

87646324

SUPPORT

2шт.

7

87655372

SPACER,25.9mm ID x 31.5mm OD x 16.8mm Thk

4шт.

8

86637229

LINK,489mm L

4шт.

9

86636659

SPACER,10.28mm ID x 15.85mm OD x 21.84mm L

2шт.

10

87654704

SPRING

2шт.

11

9617265

BAND

2шт.

12

86636552

BEARING CAP

2шт.

13

86637228

PIN,38.1mm OD x 91.5mm L

2шт.

14

0C

ORDER COMPONENTS

DUAL HYD. CYLINDERS, IN CAB CONTROL - VAR 726815

1шт.

15

87654703

PIVOT

1шт.

16

87655350

SPRING,Compression, 1.81" OD x 9.44" L

1шт.

17

84407658

PIVOT

2шт.

18

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

19

633038

THREADED ROD,3/4" - 10 x 11-1/2" L

2шт.

20

87034173

CABLE TIE,774.7mm L

6шт.

21

86566989

CABLE TIE,208mm L

2шт.

22

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

23

9845575

SCRAPER BLADE

1шт.

24

87040645

ANGLE

1шт.

25

47527692

SHIM,54mm OD x 0.4mm Thk

2шт.

26

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

27

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.

28

1589857

CLAMP

4шт.

29

87314

JAM NUT,Jam, 7/8"-9, G2

1шт.

30

9849647

NUT,7/8"-9, G5

1шт.

31

28581

WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk

8шт.

32

87400

COTTER PIN,3/16" x 2"

4шт.

33

86619803

FLANGE NUT

4шт.

34

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

35

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

4шт.

36

87399

COTTER PIN,1/2 x 3 Bolt

3шт.

37

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

4шт.

38

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

39

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

40

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

41

280954

NUT,3/4"-10, G5

2шт.

42

257163

WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk

2шт.

43

86627635

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

2шт.

44

47504953

BEARING HOUSING,73mm ID x 106.1mm OD x 30mm Thk

Incl 45

4шт.

45

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

4шт.

46

130045

PIN,5mm OD x 26mm L, Slotted

2шт.

47

87000230

PLATE

Clamp

2шт.

48

47945176

BOLT

2шт.
