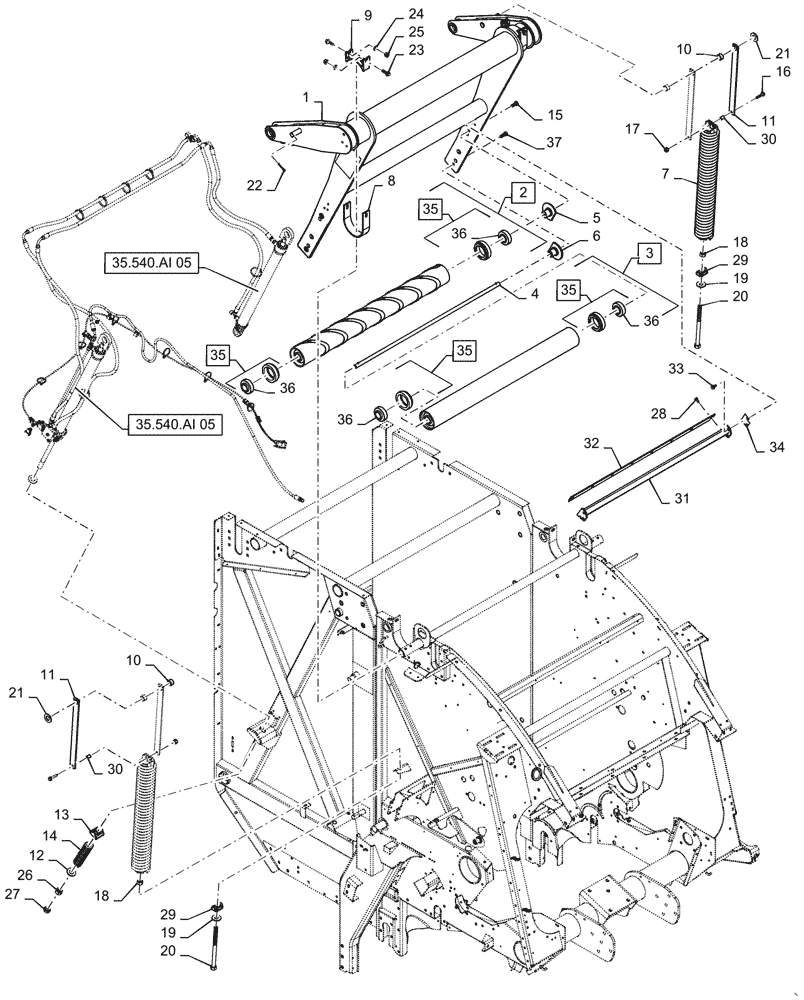

Запчасти Case IH RB465 (62.140.AQ[05]) - VAR - 726815, 727098 - BALE TENSION TAKE UP ARM AND TWO SPRINGS WITH LOOP ROLL, DUAL HYD. CYLINDERS, YFN188618 AND PRIOR (62) - PRESSING - BALE FORMATION

1

47689494

ARM

Take Up

1шт.

2

47512225

ROLL

Front Serpentine, Loop, Incl 35

1шт.

3

84601406

ROLL

Rear Serpentine, Incl 35

1шт.

4

9823372

SHAFT,1135mm L

1шт.

5

86501067

SUPPORT

2шт.

6

86516322

SUPPORT

2шт.

7

87654704

SPRING

2шт.

8

9617265

BAND

2шт.

9

9617266

BEARING CAP,145.6 mm OD

2шт.

10

32406

SPACER,25.9mm ID x 31.5mm OD x 16.8mm L

4шт.

11

86517077

CONNECTING LINK

4шт.

12

257163

WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk

2шт.

13

226131

PIVOT

1шт.

14

9846489

SPRING,Compression, 1.81" OD x 9.44" L

1шт.

15

86627635

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

2шт.

16

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

17

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

18

280954

NUT,3/4"-10, G5

2шт.

19

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

20

633038

THREADED ROD,3/4" - 10 x 11-1/2" L

2шт.

21

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

4шт.

22

87399

COTTER PIN,1/2 x 3 Bolt

3шт.

23

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

4шт.

24

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

25

100038

NUT,M12 x 1.75, Cl 8

4шт.

26

9849647

NUT,7/8"-9, G5

1шт.

27

87314

JAM NUT,Jam, 7/8"-9, G2

1шт.

28

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

10шт.

29

625098

PIVOT

2шт.

30

768624

SPACER

2шт.

31

87040645

ANGLE

1шт.

32

9845575

SCRAPER BLADE

1шт.

33

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

34

47527692

SHIM,54mm OD x 0.4mm Thk

4шт.

35

47504953

BEARING HOUSING,73mm ID x 106.1mm OD x 30mm Thk

Incl 36

4шт.

36

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

4шт.

37

47945176

BOLT

2шт.
