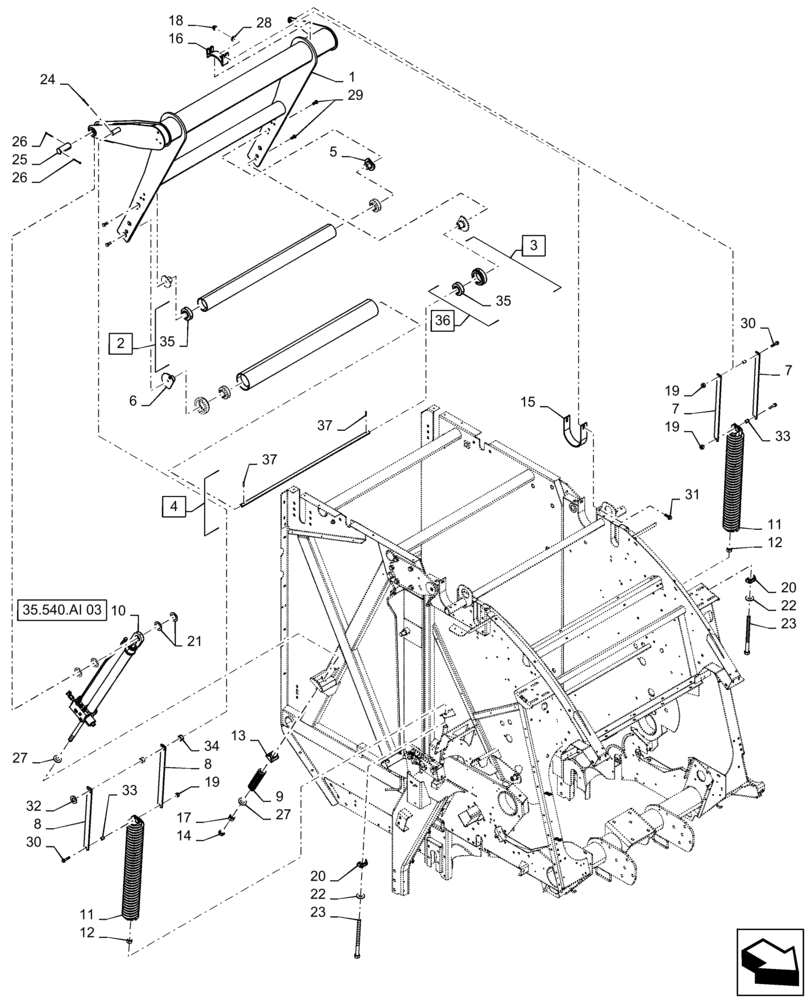

Запчасти Case IH RB465 (62.140.AQ[04]) - VAR - 727159 - BALE TENSION TAKE UP ARM AND TWO SPRINGS, SINGLE HYD. CYLINDER, OVERSHOT FEEDER, IN CAB CONTROL, YFN188619 AND AFTER (62) - PRESSING - BALE FORMATION

1

47689488

ARM

Take Up

1шт.

2

84356720

ROLL,88.9mm OD x 1142mm L

Front Serpentine, Incl 35

1шт.

3

84601406

ROLL

Rear Serpentine, Incl 36

1шт.

4

9823372

SHAFT,1135mm L

Incl 37

1шт.

5

87654791

SUPPORT

2шт.

6

87654792

SUPPORT

2шт.

7

86978164

LINK,520mm L

2шт.

8

86637229

LINK,489mm L

2шт.

9

87655350

SPRING,Compression, 1.81" OD x 9.44" L

1шт.

10

0C

ORDER COMPONENTS

SINGLE HYD. CYLINDER, OVERSHOT FEEDER, IN CAB CONTROL - VAR 727159

1шт.

11

87654704

SPRING

2шт.

12

280954

NUT,3/4"-10, G5

2шт.

13

226131

PIVOT

1шт.

14

87314

JAM NUT,Jam, 7/8"-9, G2

1шт.

15

9617265

BAND

2шт.

16

86636552

BEARING CAP

2шт.

17

9849647

NUT,7/8"-9, G5

1шт.

18

86619803

FLANGE NUT

4шт.

19

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

20

84407658

PIVOT

2шт.

21

28581

WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk

4шт.

22

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

23

633038

THREADED ROD,3/4" - 10 x 11-1/2" L

2шт.

24

87399

COTTER PIN,1/2 x 3 Bolt

1шт.

25

86637228

PIN,38.1mm OD x 91.5mm L

1шт.

26

87400

COTTER PIN,3/16" x 2"

2шт.

27

257163

WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk

2шт.

28

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

29

86627635

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

4шт.

30

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

3шт.

31

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

4шт.

32

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

1шт.

33

768624

SPACER

3шт.

34

32406

SPACER,25.9mm ID x 31.5mm OD x 16.8mm L

2шт.

35

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

2шт.

36

47504953

BEARING HOUSING,73mm ID x 106.1mm OD x 30mm Thk

Incl 35

2шт.

37

130045

PIN,5mm OD x 26mm L, Slotted

2шт.
