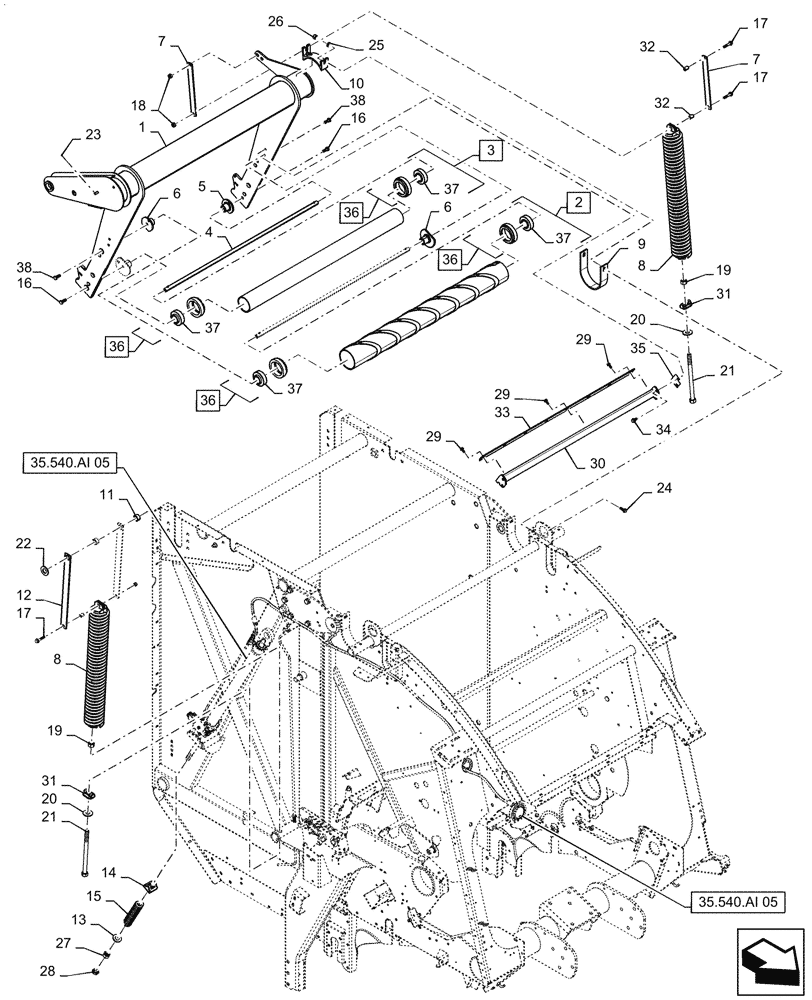

Запчасти Case IH RB465 (62.140.AQ[04]) - VAR - 726813, 727097 - BALE TENSION TAKE UP ARM AND TWO SPRINGS WITH LOOP ROLL, SINGLE HYD. CYLINDER, YFN188618 AND PRIOR (62) - PRESSING - BALE FORMATION

1

47463771

ARM

Take Up

1шт.

2

47512225

ROLL

Front Loop, Incl 36

1шт.

3

84601406

ROLL

Rear Serpentine, Incl 36

1шт.

4

9823372

SHAFT,1135mm L

1шт.

5

86501067

SUPPORT

2шт.

6

86516322

SUPPORT

2шт.

7

9829324

CONNECTING LINK

2шт.

8

87654704

SPRING

2шт.

9

9617265

BAND

2шт.

10

9617266

BEARING CAP,145.6 mm OD

2шт.

11

32406

SPACER,25.9mm ID x 31.5mm OD x 16.8mm L

2шт.

12

86517077

CONNECTING LINK

2шт.

13

257163

WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk

2шт.

14

226131

PIVOT

1шт.

15

9846489

SPRING,Compression, 1.81" OD x 9.44" L

1шт.

16

86627635

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

2шт.

17

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

3шт.

18

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

19

280954

NUT,3/4"-10, G5

2шт.

20

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

21

633038

THREADED ROD,3/4" - 10 x 11-1/2" L

2шт.

22

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

1шт.

23

87399

COTTER PIN,1/2 x 3 Bolt

1шт.

24

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

4шт.

25

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

26

100038

NUT,M12 x 1.75, Cl 8

4шт.

27

9849647

NUT,7/8"-9, G5

1шт.

28

87314

JAM NUT,Jam, 7/8"-9, G2

1шт.

29

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

10шт.

30

87040645

ANGLE

1шт.

31

625098

PIVOT

2шт.

32

86636659

SPACER,10.28mm ID x 15.85mm OD x 21.84mm L

3шт.

33

9845575

SCRAPER BLADE

1шт.

34

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

35

47527692

SHIM,54mm OD x 0.4mm Thk

2шт.

36

47504953

BEARING HOUSING,73mm ID x 106.1mm OD x 30mm Thk

Incl 37

4шт.

37

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

4шт.

38

47945176

BOLT

2шт.
