Запчасти Case IH RB465 (62.140.AQ[02]) - VAR - 726813, 727097 - BALE TENSION TAKE UP ARM AND TWO SPRINGS, SINGLE HYD. CYLINDER, YFN188618 AND PRIOR (62) - PRESSING - BALE FORMATION

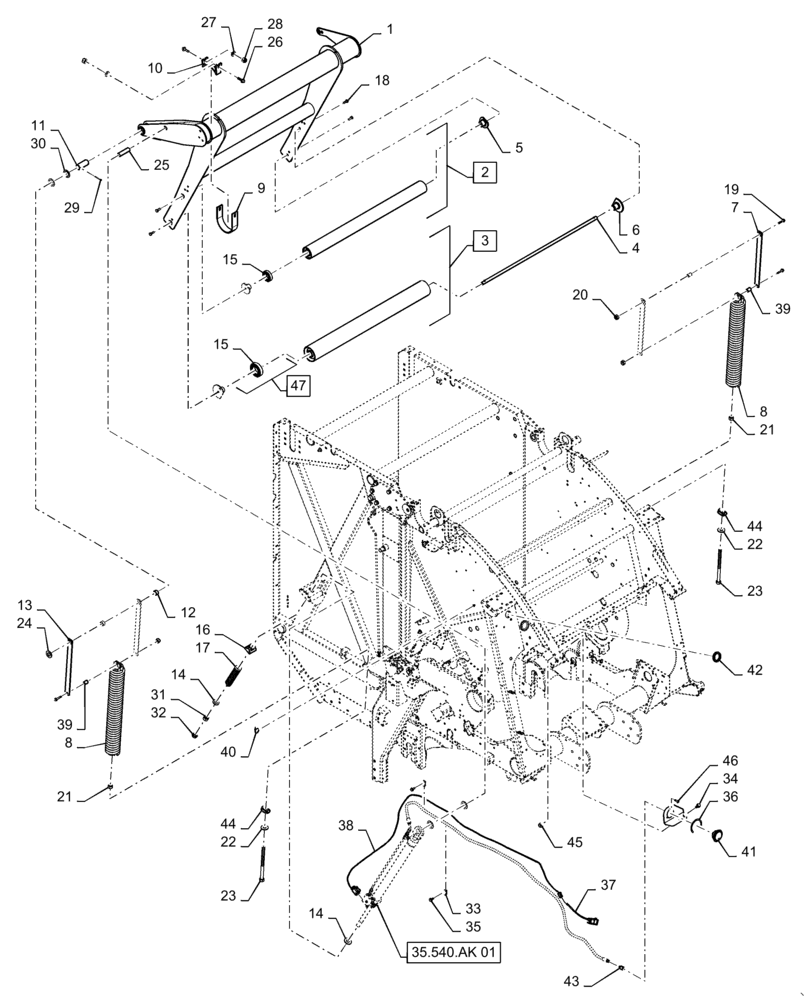

Схема запчастей Case IH RB465 - (62.140.AQ[02]) - VAR - 726813, 727097 - BALE TENSION TAKE UP ARM AND TWO SPRINGS, SINGLE HYD. CYLINDER, YFN188618 AND PRIOR (62) - PRESSING - BALE FORMATION
5
15
8
8
17
2
13
31
6
21
20
29
27
30
9
32
34
14
35
25
26
39
39
44
41
15
45
38
19
40
18
12
23
36
23
1
14
4
28
22
33
3
42
37
21
16
47
7
44
46
11
43
22
10
24
35.540.ak 01

Артикул

Название

Примечание

Количество

1

47689488

ARM

Takeup

1шт.

2

84356720

ROLL,88.9mm OD x 1142mm L

Front Serpentine, Incl 15

1шт.

3

84601406

ROLL

Rear Serpentine, Incl 47

1шт.

4

9823372

SHAFT,1135mm L

1шт.

5

86516321

SUPPORT

2шт.

6

86516322

SUPPORT

2шт.

7

9829324

CONNECTING LINK

2шт.

8

9608196

SPARE PART

2шт.

9

9617265

BAND

2шт.

10

9617266

BEARING CAP,145.6 mm OD

2шт.

11

86515940

PIN,38.1mm OD x 91.5mm L

1шт.

12

32406

SPACER,25.9mm ID x 31.5mm OD x 16.8mm L

2шт.

13

86517077

CONNECTING LINK

2шт.

14

257163

WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk

2шт.

15

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

2шт.

16

226131

PIVOT

1шт.

17

9846489

SPRING,Compression, 1.81" OD x 9.44" L

1шт.

18

86627635

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

4шт.

19

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

3шт.

20

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

21

280954

NUT,3/4"-10, G5

2шт.

22

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

23

633038

THREADED ROD,3/4" - 10 x 11-1/2" L

2шт.

24

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

1шт.

25

87399

COTTER PIN,1/2 x 3 Bolt

1шт.

26

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

4шт.

27

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

28

100038

NUT,M12 x 1.75, Cl 8

4шт.

29

87400

COTTER PIN,3/16" x 2"

2шт.

30

28581

WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk

4шт.

31

9849647

NUT,7/8"-9, G5

1шт.

32

87314

JAM NUT,Jam, 7/8"-9, G2

1шт.

33

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

34

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

35

381014

SCREW,Flng, M8 x 16mm

2шт.

36

84603728

DECAL

1шт.

37

47563962

WIRE HARNESS

Guage

1шт.

38

47563960

WIRE HARNESS

Bale Tension

1шт.

39

768624

SPACER

2шт.

40

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

2шт.

41

84384411

PRESSURE GAUGE,3000 PSI, 1/4" NPT

1шт.

42

529828

GROMMET,2 1/8" x 2 7/8" x 2 1/2"

1шт.

43

241971

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, Fem Pipe

1шт.

44

625098

PIVOT

2шт.

45

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

46

425520

RIVET,Pop, 3.96mm OD x 10.4mm L

3шт.

47

47504953

BEARING HOUSING,73mm ID x 106.1mm OD x 30mm Thk

Incl 15

2шт.

48

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

2шт.

Выбрано товаров: 48
