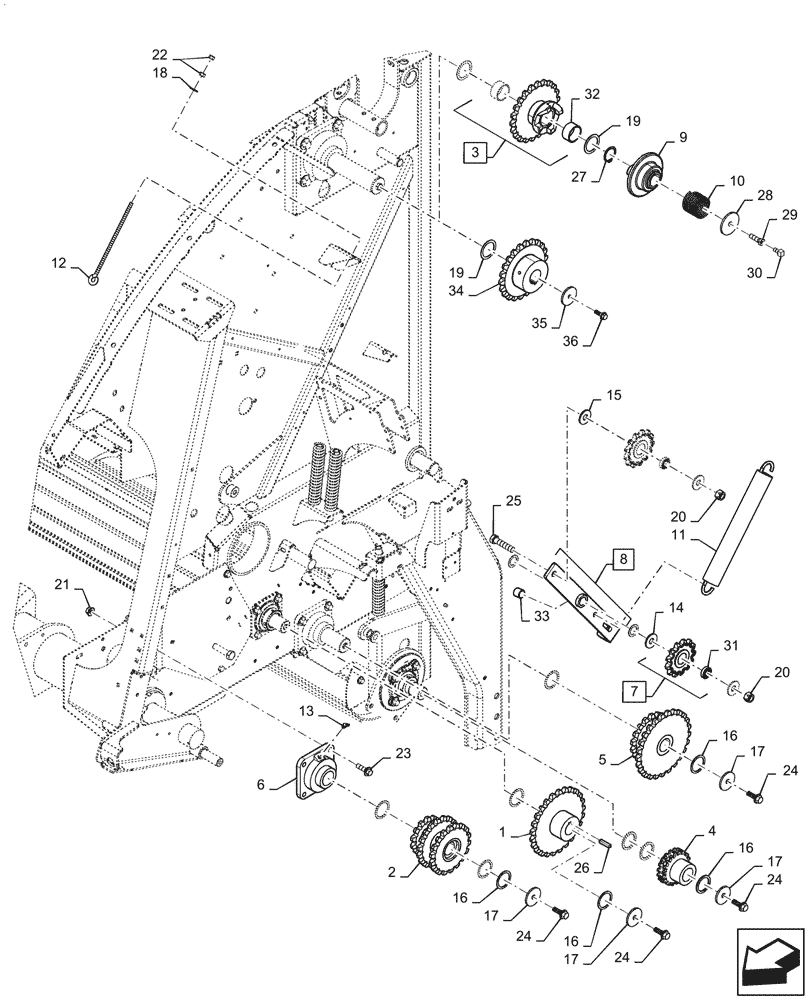

Запчасти Case IH RB465 (62.140.AJ[05]) - DRIVE SPROCKETS, LH, OVERSHOT FEEDER (62) - PRESSING - BALE FORMATION

1

84280322

SPROCKET,RC80, 25T

25T, RC80

1шт.

2

84406459

SPROCKET

Triple, 18T-18T RC80, 13T RC80

1шт.

3

87032323

SPROCKET

& Clutch, Incl 32

1шт.

4

84594180

SPROCKET,27T Internal, 17T/17T External

Double, 17T-17T RC60

1шт.

5

84594720

SPROCKET,27T Internal, 16T/16T/25T External

Triple, 16T-16T RC60, 25T RC80

1шт.

6

86609558

BEARING ASSY,45mm ID

1шт.

7

84401598

SPROCKET,39.967mm ID x 118.4mm OD x 14.61mm Thk

Idler, 13T RC80, Incl 31

4шт.

8

84262617

ARM

Idler, Incl 33, Serial Range: -YFN188618

1шт.

8

47748078

ARM

Idler, Incl 33, Start Serial: YFN188619

1шт.

9

87028608

CLUTCH

1шт.

10

86640119

SPRING,Compression, 2.438" OD x 4.5" L

1шт.

11

86512547

SPRING,Extension, 1.94" OD x 13 - 1/8" L

1шт.

12

183356

EYEBOLT,3/8" - 16 x 10" L

1шт.

13

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

1шт.

14

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

4шт.

15

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

16

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

9шт.

17

694478

WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk

4шт.

18

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

19

9808110

WASHER,46mm ID x 60mm OD x 1.64mm Thk

2шт.

20

86000441

NUT,M16 x 2.0, Cl 8

5шт.

21

9804279

FLANGE NUT,Hex, M12, Cl 8

4шт.

22

9628503

NUT,3/8"-16, G5

2шт.

23

9671487

BOLT,Hex, M12 x 50mm, Cl 8.8

4шт.

24

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

4шт.

25

120092

BOLT,M16 x 70mm, Cl 8.8

1шт.

26

87483

KEY,0.31" x 1.5" L

1шт.

27

45440

SNAP RING,#162, Ext

1шт.

28

9829364

CAP COVER

1шт.

29

86618213

SPECIAL BOLT,M12 x 40mm, Drilled

1шт.

30

691873

ELBOW,90 Degree Elbow, 1/8" Male NPT x 1/8" Female NPT

1шт.

31

66553

BALL BEARING,16.13mm ID x 40mm OD x 12.12mm W

4шт.

32

86977429

BUSHING,44.62mm ID x 50.93mm OD x 22.2mm L

1шт.

33

84019797

SLEEVE,25mm ID x 28mm OD x 25mm L

1шт.
