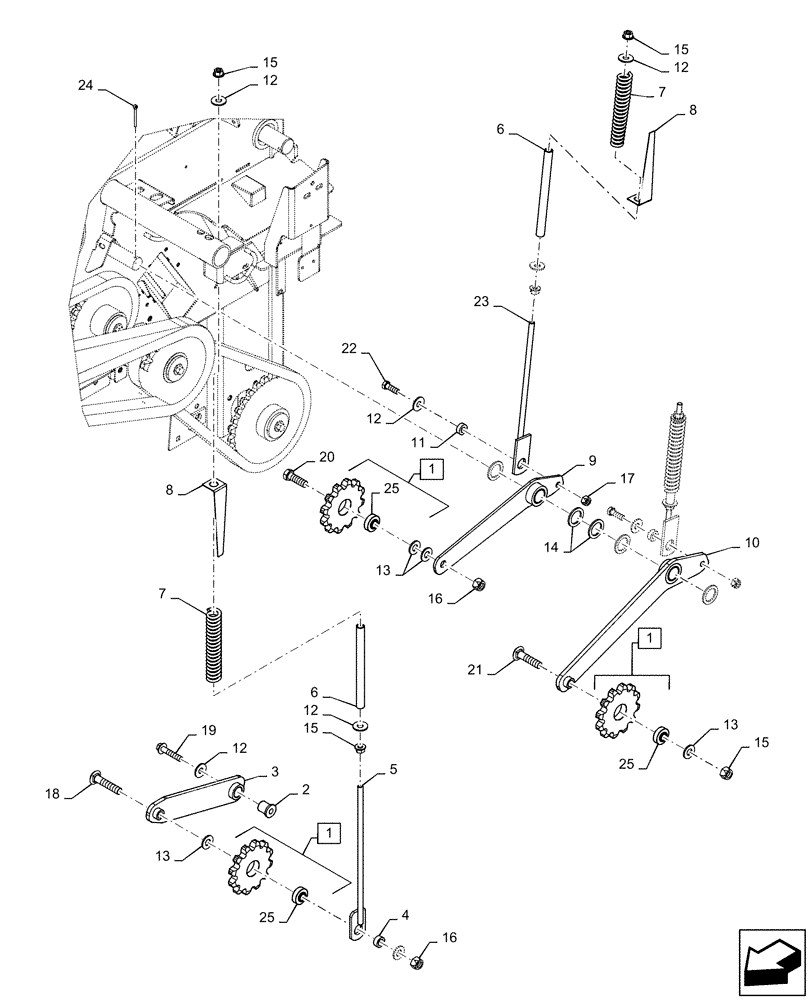

Запчасти Case IH RB465 (62.140.AJ[04]) - DRIVE IDLERS, LH, UNDERSHOT ROTOR (62) - PRESSING - BALE FORMATION

1

84401598

SPROCKET,39.967mm ID x 118.4mm OD x 14.61mm Thk

13T, RC80, Incl 25

3шт.

2

84376806

SPACER,13mm ID x 31.75mm OD x 32.5mm L

1шт.

3

84582099

ARM

1шт.

4

46710

SPACER,16.27mm ID x 25.48mm OD x 11.1mm Thk

1шт.

5

47388340

TENSIONER

1шт.

6

86543175

TUBE,19.05 mm OD x 228.60 mm L

3шт.

7

64861

SPRING

3шт.

8

86643093

INDICATOR

1шт.

9

84582052

ARM

Fixed Roll

1шт.

10

84582051

ARM

1шт.

11

45455

SPACER,13.5mm ID x 25.4mm OD x 9.5mm Thk

2шт.

12

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

13

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

5шт.

14

142656

WASHER,33.35mm ID x 47.63mm OD x 3.43mm Thk

5шт.

15

9804279

FLANGE NUT,Hex, M12, Cl 8

6шт.

16

86000441

NUT,M16 x 2.0, Cl 8

3шт.

17

100038

NUT,M12 x 1.75, Cl 8

2шт.

18

120048

CARRIAGE BOLT,M16 x 80mm, Cl 8.8

1шт.

19

9804270

BOLT,Hex, M12 x 60mm, Cl 8.8

1шт.

20

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

1шт.

21

120047

CARRIAGE BOLT,M16 x 70mm, Cl 8.8

1шт.

22

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

2шт.

23

86633971

BOLT,M12 x 1.75 x 377.5mm L

2шт.

24

86633971

BOLT,M12 x 1.75 x 377.5mm L

1шт.

25

66553

BALL BEARING,16.13mm ID x 40mm OD x 12.12mm W

3шт.
