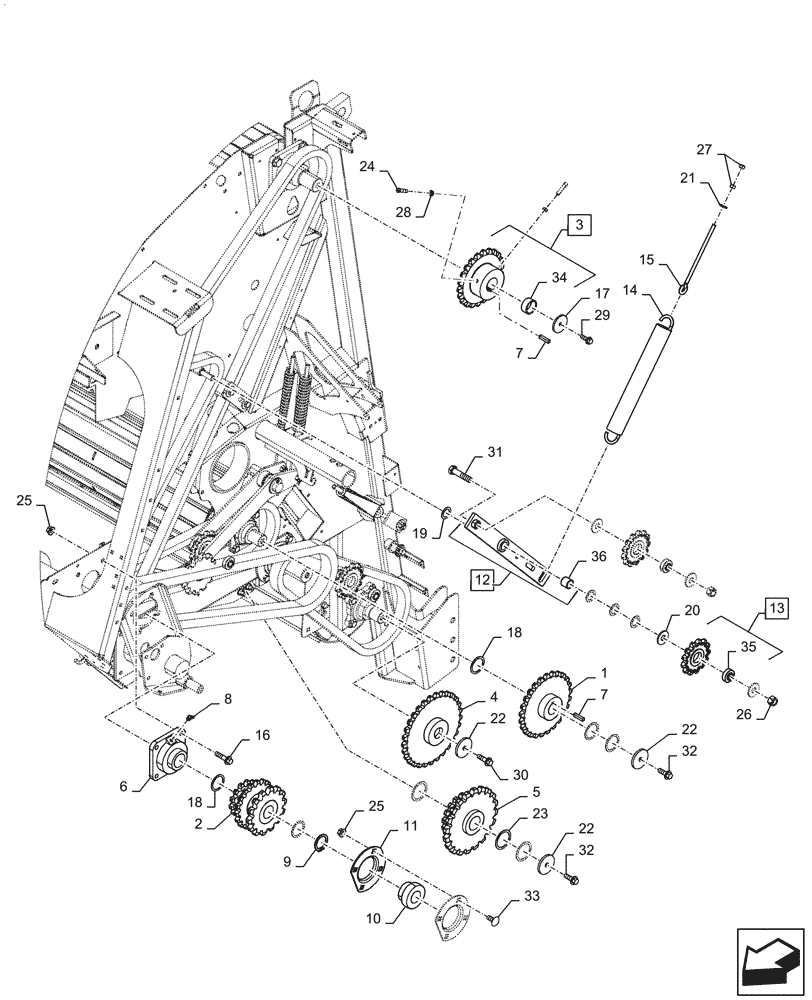

Запчасти Case IH RB465 (62.140.AJ[03]) - DRIVE SPROCKETS, LH, UNDERSHOT ROTOR (62) - PRESSING - BALE FORMATION

1

84280322

SPROCKET,RC80, 25T

1шт.

2

47617881

SPROCKET,27T Internal, 13T/18T/14T External

1шт.

3

86637269

DRIVEN SPROCKET,RC80, 22T

Incl 34

1шт.

4

84282584

SPROCKET,RC80, 29T

Floor Roll

1шт.

5

84289456

SPROCKET,31T Internal, 17T/20T External

1шт.

6

86609558

BEARING ASSY,45mm ID

1шт.

7

87483

KEY,0.31" x 1.5" L

1шт.

8

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

1шт.

9

86515809

SNAP RING,#175, Ext

1шт.

10

412441

ROLLER BEARING,40mm ID x 80mm OD x 21mm W, Round Bore

1шт.

11

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

2шт.

12

84262617

ARM

Idler, Incl 36, Serial Range: -YFN188618

1шт.

12

47748078

ARM

Idler, Incl 36, Start Serial: YFN188619

1шт.

13

84401598

SPROCKET,39.967mm ID x 118.4mm OD x 14.61mm Thk

13T, RC80, Incl 35

4шт.

14

86512547

SPRING,Extension, 1.94" OD x 13 - 1/8" L

1шт.

15

47687089

EYEBOLT

1шт.

16

9671487

BOLT,Hex, M12 x 50mm, Cl 8.8

4шт.

17

86624647

WASHER,10.8mm ID x 57mm OD x 6.1mm Thk

1шт.

18

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

5шт.

19

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

4шт.

20

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

21

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

22

128784

WASHER

2шт.

23

67517

WASHER

5шт.

24

86542824

SET SCREW,Sq Hd, 3/8" - 16 x 1-1/2"

2шт.

25

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

26

86000441

NUT,M16 x 2.0, Cl 8

5шт.

27

9628503

NUT,3/8"-16, G5

2шт.

28

86509499

JAM NUT,3/8"-16, G2

2шт.

29

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

30

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

1шт.

31

120092

BOLT,M16 x 70mm, Cl 8.8

1шт.

32

9670288

BOLT,Hex, M12 x 35mm, Cl 8.8

2шт.

33

335890

CARRIAGE BOLT,Sq Nk, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

34

86977429

BUSHING,44.62mm ID x 50.93mm OD x 22.2mm L

1шт.

35

66553

BALL BEARING,16.13mm ID x 40mm OD x 12.12mm W

4шт.

36

84019797

SLEEVE,25mm ID x 28mm OD x 25mm L

1шт.
