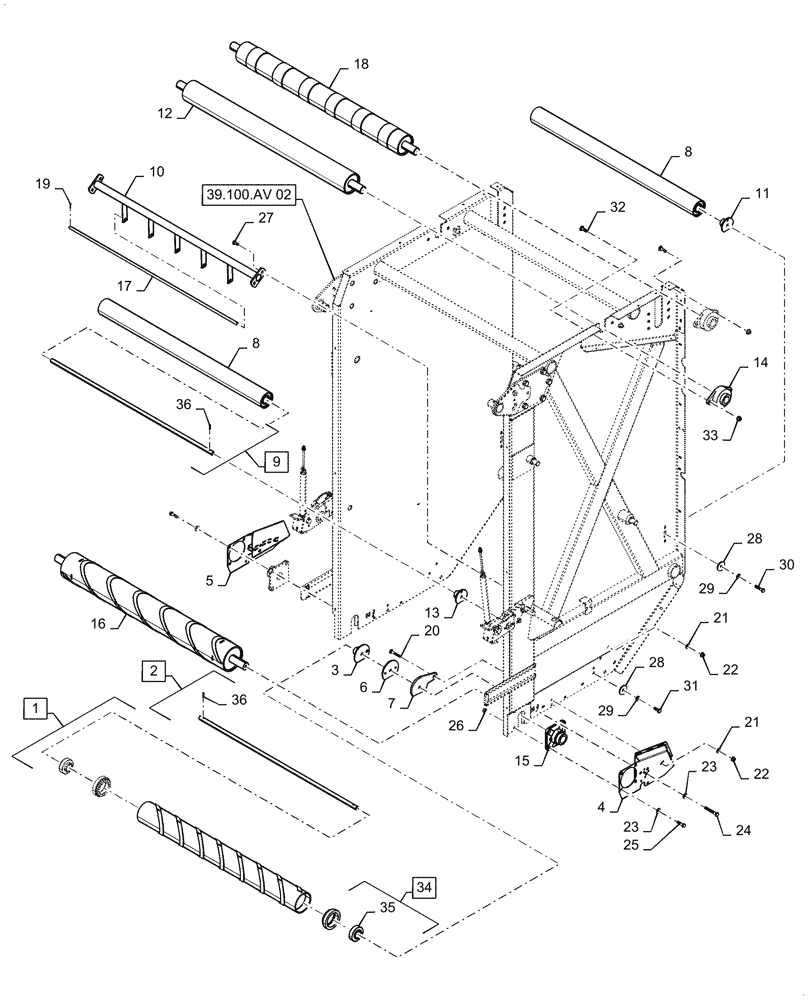

Запчасти Case IH RB465 (62.140.AC[13]) - TAILGATE CHOPPING ROLL, OSF - OVERSHOT FEEDER (62) - PRESSING - BALE FORMATION

1

47512226

ROLL

Rear Tailgate Chopping, Incl 34

1шт.

2

9823372

SHAFT,1135mm L

Incl 36

1шт.

3

87654792

SUPPORT

2шт.

4

48105367

LH

BRACKET

1шт.

5

48105369

RH

BRACKET

1шт.

6

48105329

LH

PLATE

1шт.

7

48105332

RH

PLATE

1шт.

8

84600572

ROLL

Lower Rear Tailgate and Belt Tracking

2шт.

9

9823371

SHAFT

Incl 36

1шт.

10

86628013

GUIDE

Belt

1шт.

11

86516321

SUPPORT

2шт.

12

84560941

ROLL

Front Tailgate, Smooth

1шт.

13

86521602

SUPPORT

2шт.

14

47538078

BEARING ASSY,40mm ID x 60.3mm H

4шт.

15

84098253

BEARING HOUSING

2шт.

16

86611454

ROLLER

Front Tailgate Chopping Nose, Loop

1шт.

17

9800832

ROD

1шт.

18

47450975

ROLL

Rubber Guide

1шт.

19

80756

COTTER PIN,1/8" x 3/4"

2шт.

20

374894

CARRIAGE BOLT,Sq Nk, M10 x 70mm, Cl 8.8

4шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

22

9804278

FLANGE NUT,M10 x 1.5, Cl 8

8шт.

23

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

10шт.

24

412085

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

2шт.

25

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

8шт.

26

9706685

NUT,M12 x 1.75, Cl 8

4шт.

27

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

28

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

4шт.

29

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

30

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

31

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

32

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

8шт.

33

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

34

47935418

BEARING HOUSING

Incl 35

2шт.

35

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

1шт.

36

130045

PIN,5mm OD x 26mm L, Slotted

2шт.
