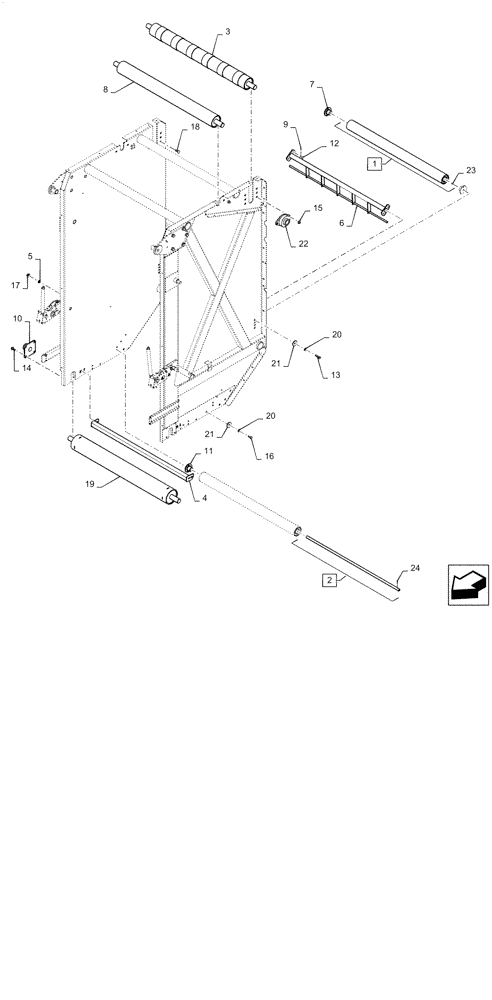

Запчасти Case IH RB465 (62.140.AC[04]) - TAILGATE SMOOTH ROLLS (62) - PRESSING - BALE FORMATION

1

84600572

ROLL

Tailgate Idler, Incl 23

2шт.

2

9823371

SHAFT

Incl 24

1шт.

3

47450975

ROLL

Rubber Guide

1шт.

4

47440959

ANGLE

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

6

86628013

GUIDE

Belt

1шт.

7

86516321

SUPPORT

2шт.

8

84560941

ROLL

Smooth

1шт.

9

80756

COTTER PIN,1/8" x 3/4"

2шт.

10

85005084

BEARING ASSY

2шт.

11

86521602

SUPPORT

2шт.

12

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

8шт.

13

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

14

9670288

BOLT,Hex, M12 x 35mm, Cl 8.8

8шт.

15

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

16

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

17

9804278

FLANGE NUT,M10 x 1.5, Cl 8

8шт.

18

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

8шт.

19

86978348

ROLL

1шт.

20

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

21

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

4шт.

22

47538078

BEARING ASSY,40mm ID x 60.3mm H

Loop

1шт.

23

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

2шт.

24

130045

PIN,5mm OD x 26mm L, Slotted

1шт.
