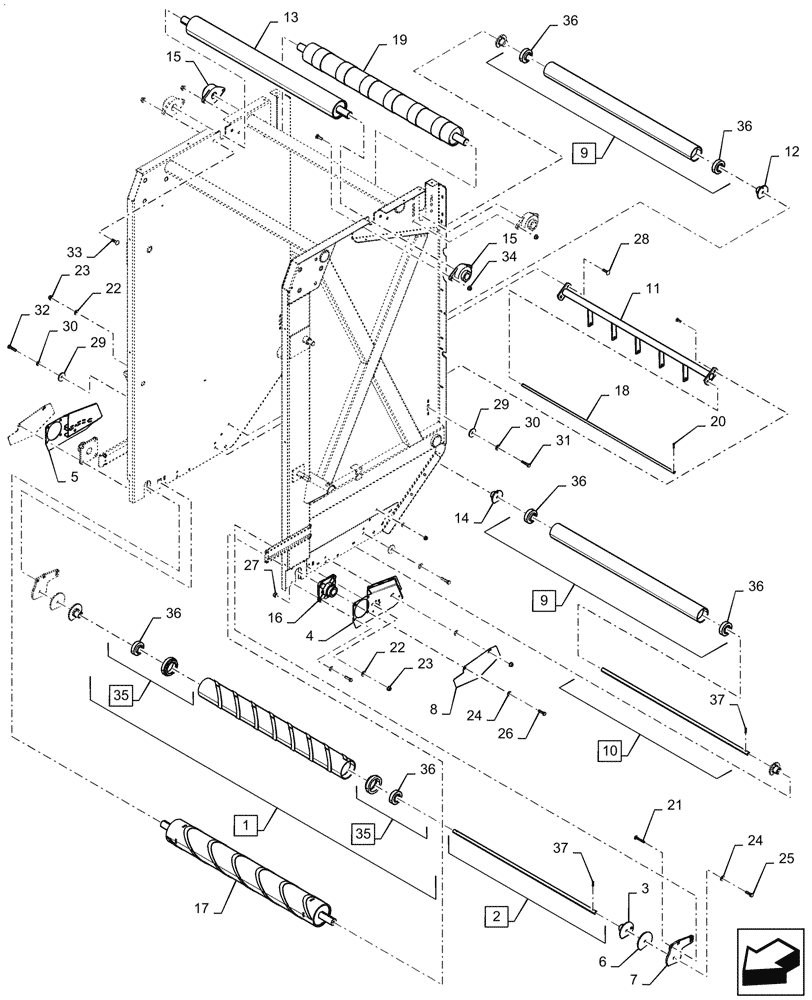

Запчасти Case IH RB465 (62.140.AC[03]) - TAILGATE LOOP ROLLS ,YGN193203 AND AFTER (62) - PRESSING - BALE FORMATION

1

47512226

ROLL

Chop, Incl 35

1шт.

2

9823372

SHAFT,1135mm L

1шт.

3

87654792

SUPPORT

1шт.

4

48105367

BRACKET

1шт.

5

48105369

BRACKET

1шт.

6

47876890

PLATE

2шт.

7

47876893

PLATE

2шт.

8

47876969

SHIELD

2шт.

9

84600572

ROLL

Adjustable & Lower, Incl 36

2шт.

10

9823371

SHAFT

Incl 37

1шт.

11

86628013

GUIDE

1шт.

12

86516321

SUPPORT

2шт.

13

84560941

ROLL

Upper Tailgate

1шт.

14

86521602

SUPPORT

2шт.

15

47538078

BEARING ASSY,40mm ID x 60.3mm H

4шт.

16

85005084

BEARING ASSY

2шт.

17

86611454

ROLLER

Loop Tailgate

1шт.

18

9800832

ROD

1шт.

19

47450975

ROLL

Rubber Belt Guide

1шт.

20

80756

COTTER PIN,1/8" x 3/4"

2шт.

21

374894

CARRIAGE BOLT,Sq Nk, M10 x 70mm, Cl 8.8

6шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

23

9804278

FLANGE NUT,M10 x 1.5, Cl 8

10шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

10шт.

25

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

2шт.

26

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

8шт.

27

9706685

NUT,M12 x 1.75, Cl 8

4шт.

28

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

29

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

4шт.

30

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

31

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

32

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

33

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

8шт.

34

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

35

47935418

BEARING HOUSING

Incl 36

2шт.

36

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

2шт.

37

130045

PIN,5mm OD x 26mm L, Slotted

2шт.
