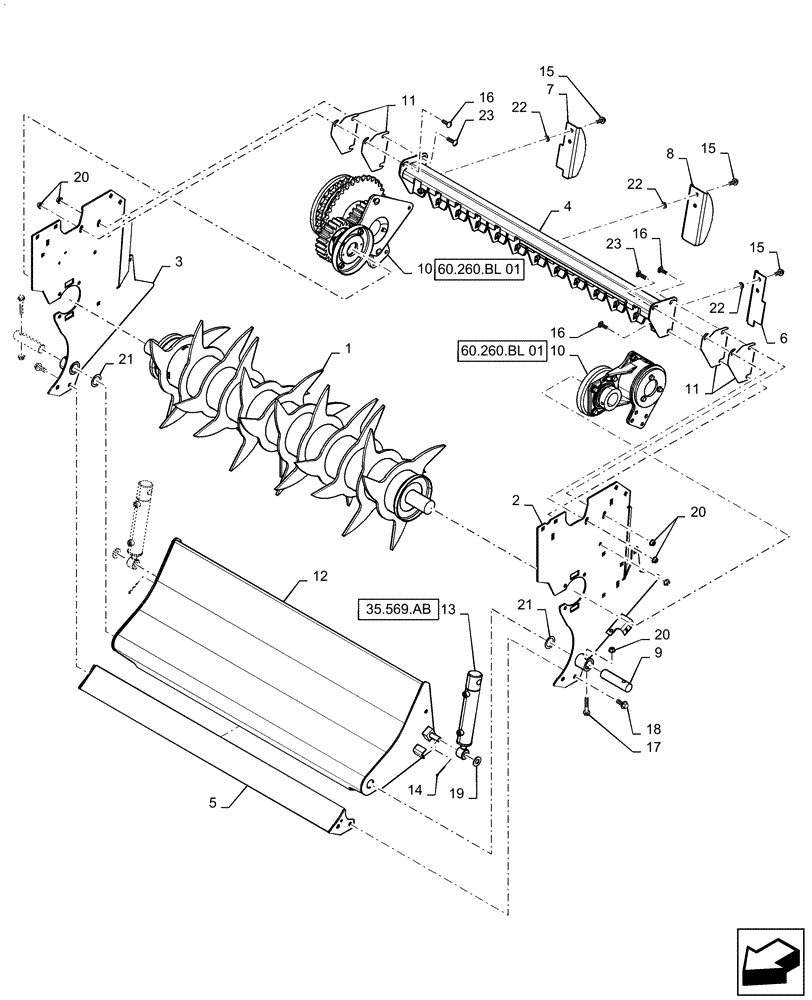

Запчасти Case IH RB465 (60.260.CC[01]) - ROTOR FEEDER, DROP FLOOR (60) - PRODUCT FEEDING

1

84513341

ROTOR

Feeder

1шт.

2

47837508

SHEET

LH

1шт.

3

47837500

SHEET

RH

1шт.

4

47917110

RAKE

1шт.

5

47837398

FLOOR

1шт.

6

84309329

SHEET

LH

1шт.

7

84309324

STRIP

RH

1шт.

8

87648312

CHANNEL

11шт.

9

47534410

SHAFT,30mm OD x 120mm L

2шт.

10

0C

ORDER COMPONENTS

Rotor Drives

1шт.

11

87648668

SHIM,125mm OD x 1mm Thk

4шт.

12

84416740

FLOOR

Drop

1шт.

13

87029395

CYLINDER ASSY.,Double Acting, 19.05mm Rod, 119.89mm Stroke

2шт.

14

80708

COTTER PIN,1/8" x 1 1/2"

2шт.

15

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

26шт.

16

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

3шт.

17

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

2шт.

18

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

4шт.

19

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

20

9804278

FLANGE NUT,M10 x 1.5, Cl 8

7шт.

21

441176

WASHER,31mm ID x 45mm OD x 0.87mm Thk

2шт.

22

140017

WASHER,M10 x 20mm OD x 2mm Thk

6шт.

23

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

2шт.
