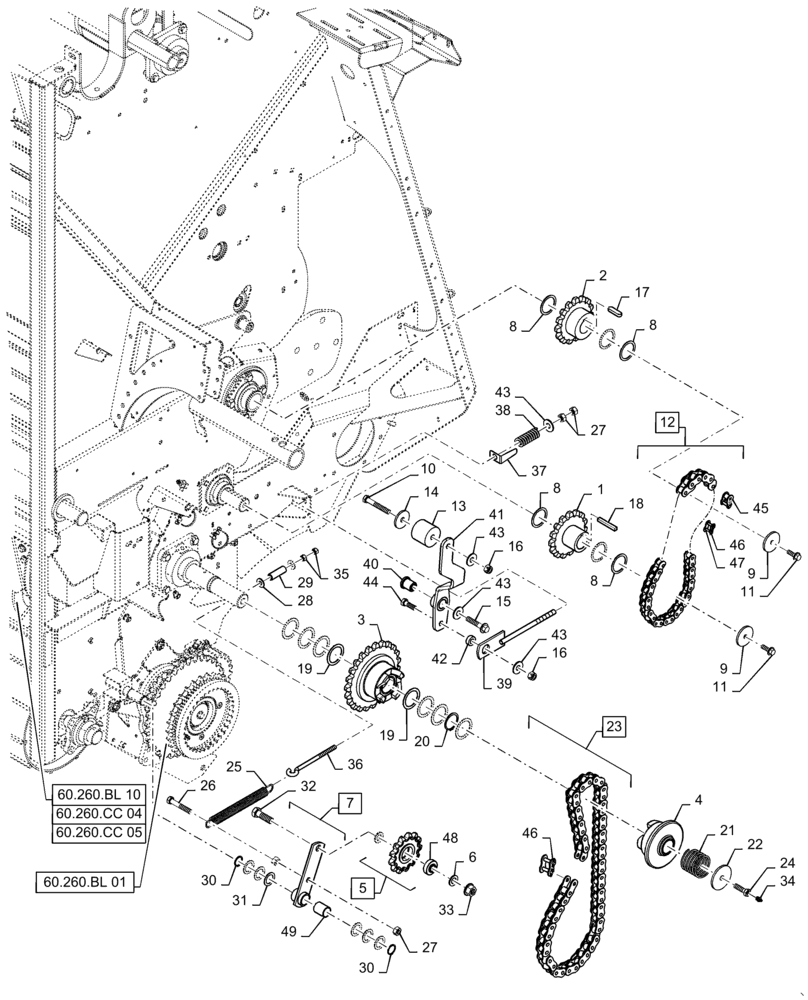

Запчасти Case IH RB465 (60.260.BL[02]) - ROTOR, DRIVE, RH (60) - PRODUCT FEEDING

1

84349215

SPROCKET,15T, RC80

15T, RC80, Fixed, RH

1шт.

2

84533097

SPROCKET,15T, RC80

15T, RC80, Pivot Roll

1шт.

3

84350406

SPROCKET

& Clutch

1шт.

4

86705492

CLUTCH

Half

1шт.

5

84401598

SPROCKET,39.967mm ID x 118.4mm OD x 14.61mm Thk

13T, RC80, Incl 48

1шт.

6

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

7

87647763

ARM

Incl 49

1шт.

8

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

6шт.

9

86624647

WASHER,10.8mm ID x 57mm OD x 6.1mm Thk

2шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

11

9804262

BOLT,M10 x 39.2mm, Cl 8.8

2шт.

12

87707866

CHAIN

37 Pitches, Incl 45, 46

1шт.

RB455

1шт.

12

87627269

CHAIN (AG),80, 38 Links x 25.4mm = 965.2mm

38 Pitches, Incl 47

1шт.

RB465

1шт.

13

47493781

IDLER

Block

1шт.

14

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

1шт.

15

9804270

BOLT,Hex, M12 x 60mm, Cl 8.8

1шт.

16

100038

NUT,M12 x 1.75, Cl 8

2шт.

17

170055

KEY

Parallel

1шт.

18

87495

KEY,0.31" x 2.50" L

Square

1шт.

19

87644681

SHIM,46mm ID x 60mm OD x 1.50mm Thk

8шт.

20

11487

SNAP RING,#175, Ext

1шт.

21

196303

SPRING,2.44" OD x 4.5" L

1шт.

22

9829364

CAP COVER

1шт.

23

84345656

CHAIN,80, 62 Links x 25.4mm = 1574.8mm

Incl 46

1шт.

24

86618213

SPECIAL BOLT,M12 x 40mm, Drilled

1шт.

25

87054556

TENSION SPRING

9.25" Long

1шт.

26

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

1шт.

27

9706685

NUT,M12 x 1.75, Cl 8

2шт.

28

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

29

32318

BUSHING,11.94mm ID x 17.27mm OD x 50.8mm L

1шт.

30

25121

SNAP RING,#100, Ext

2шт.

31

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

6шт.

32

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

1шт.

33

9804280

FLANGE NUT,Hex, M16, Cl 8

1шт.

34

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

1шт.

35

9628503

NUT,3/8"-16, G5

2шт.

36

36835

EYEBOLT,G2, 3/8"-16 x 6-1/2"

1шт.

37

47493774

INDICATOR

1шт.

38

86635754

SPRING,Compression, 1.029" OD x 2.73" L

2.73" Long

1шт.

39

47494243

TENSIONER

1шт.

40

84376806

SPACER,13mm ID x 31.75mm OD x 32.5mm L

1шт.

41

47587896

ARM

1шт.

42

45455

SPACER,13.5mm ID x 25.4mm OD x 9.5mm Thk

1шт.

43

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

44

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

1шт.

45

86977428

CONNECTING LINK

Offset

1шт.

46

84356440

LINK,25.4mm Pitch

1шт.

47

86643889

CONNECTING LINK

1шт.

48

66553

BALL BEARING,16.13mm ID x 40mm OD x 12.12mm W

1шт.

49

612945

SPACER

1шт.
