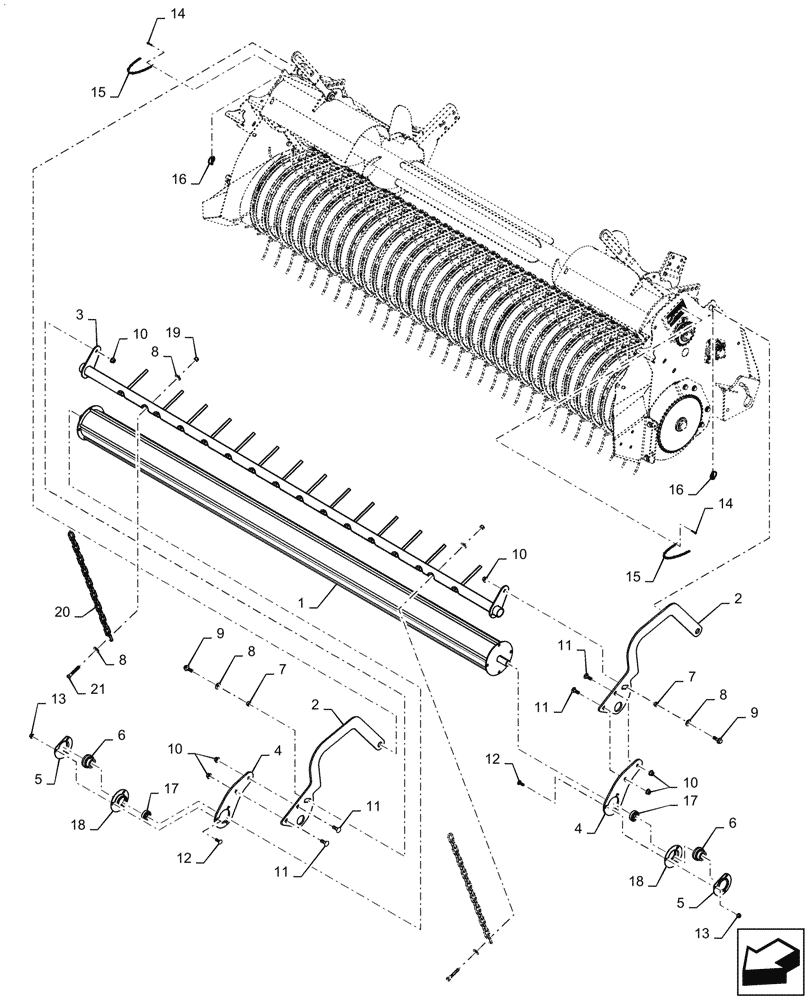

Запчасти Case IH RB465 (60.220.CC[08]) - VAR - 726922 - 2.0M ROLLER WINDGUARD, USED WITH TOP ASSIST ROLL (60) - PRODUCT FEEDING

1

84488984

ROLLER

1шт.

2

47361881

ARM

2шт.

3

47362425

WINDGUARD

1шт.

4

84426074

ARM

2шт.

5

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

2шт.

6

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

7

84238738

SPACER,10.34mm ID x 15.88mm OD x 12mm L

2шт.

8

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

9

9804262

BOLT,M10 x 39.2mm, Cl 8.8

2шт.

10

9804278

FLANGE NUT,M10 x 1.5, Cl 8

6шт.

11

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

12

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

6шт.

13

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

14

80756

COTTER PIN,1/8" x 3/4"

2шт.

15

197559

CHAIN,9" L

2шт.

16

86508947

LINCH PIN,18.8mm OD

2шт.

17

47507709

SPACER,24.88mm ID x 41mm OD x 13mm Thk

2шт.

18

47505113

BEARING HOUSING

2шт.

19

9637692

NUT,3/8"-16, GB

2шт.

20

87027237

CHAIN,18 Links x 37.2mm = 670mm L

2шт.

21

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.
