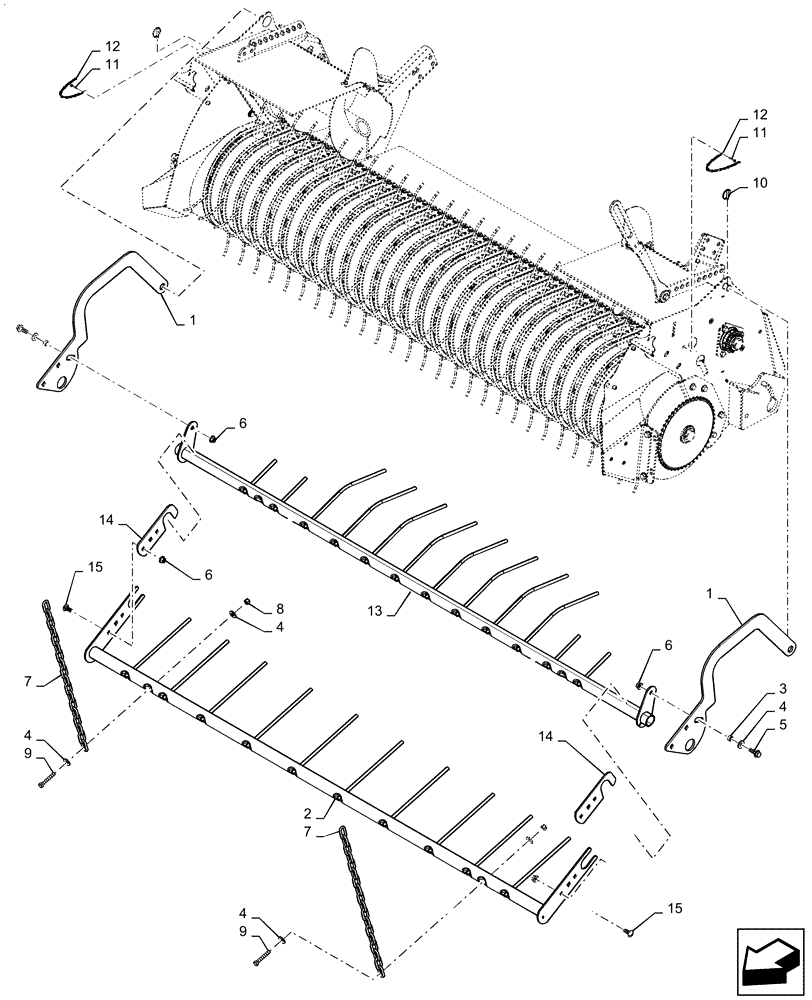

Запчасти Case IH RB465 (60.220.CC[04]) - VAR - 726917 - 1.8M TINE WINDGUARD, USED WITHOUT TOP ASSIST ROLL (60) - PRODUCT FEEDING

1

47361881

ARM

2шт.

2

84495729

WINDGUARD

1шт.

3

84238738

SPACER,10.34mm ID x 15.88mm OD x 12mm L

2шт.

4

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

6шт.

5

9804262

BOLT,M10 x 39.2mm, Cl 8.8

2шт.

6

9804278

FLANGE NUT,M10 x 1.5, Cl 8

6шт.

7

87027237

CHAIN,18 Links x 37.2mm = 670mm L

2шт.

8

88902

NUT,3/8"-16

2шт.

9

86575418

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

2шт.

10

86508947

LINCH PIN,18.8mm OD

2шт.

11

80756

COTTER PIN,1/8" x 3/4"

2шт.

12

197559

CHAIN,9" L

2шт.

13

47362955

WINDGUARD

1шт.

14

47467993

RETAINER

2шт.

15

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

4шт.
