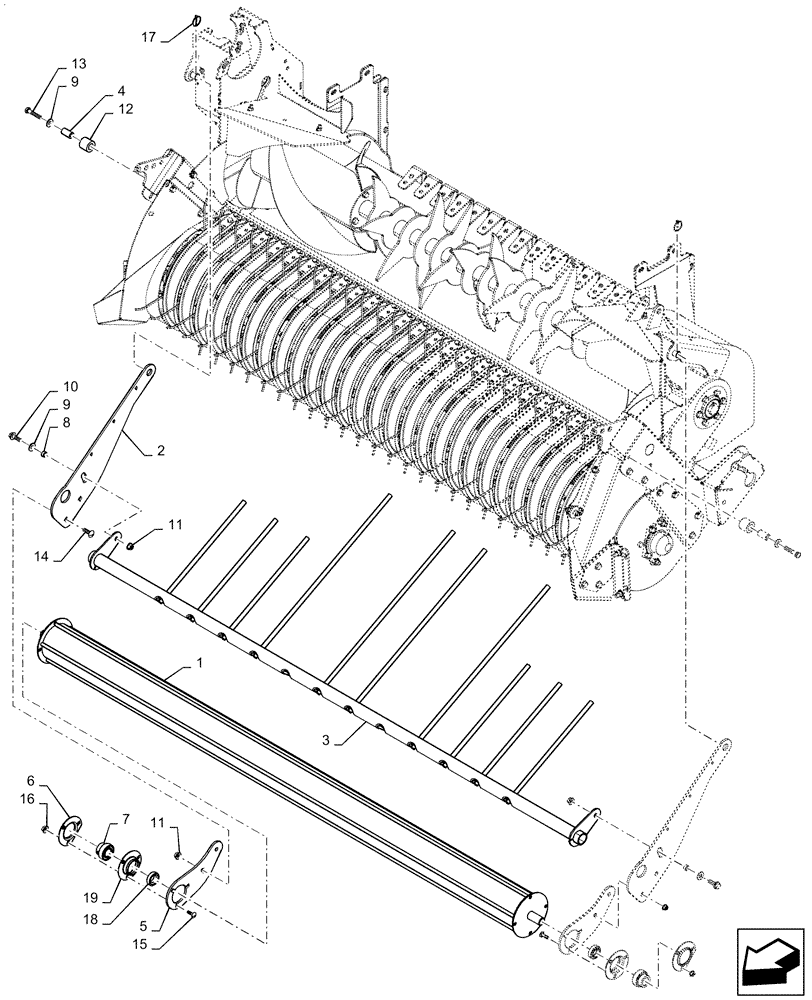

Запчасти Case IH RB465 (60.220.CC[03]) - VAR - 726819 - 1.8M ROLLER WINDGUARD, OVERSHOT FEEDER (60) - PRODUCT FEEDING

1

84488987

ROLLER

1шт.

2

84425604

ARM

2шт.

3

84412946

WINDGUARD

1шт.

4

84563993

SPACER,10.31mm ID x 18.24mm OD x 33.53mm L

2шт.

5

84426074

ARM

2шт.

6

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

4шт.

7

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

8

84238738

SPACER,10.34mm ID x 15.88mm OD x 12mm L

2шт.

9

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

10

9804262

BOLT,M10 x 39.2mm, Cl 8.8

2шт.

11

9804278

FLANGE NUT,M10 x 1.5, Cl 8

6шт.

12

47361097

SPACER,20mm ID x 34.9mm OD x 31mm L

2шт.

13

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

14

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

15

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

6шт.

16

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

17

86508947

LINCH PIN,18.8mm OD

2шт.

18

47507709

SPACER,24.88mm ID x 41mm OD x 13mm Thk

2шт.

19

47505113

BEARING HOUSING

2шт.
