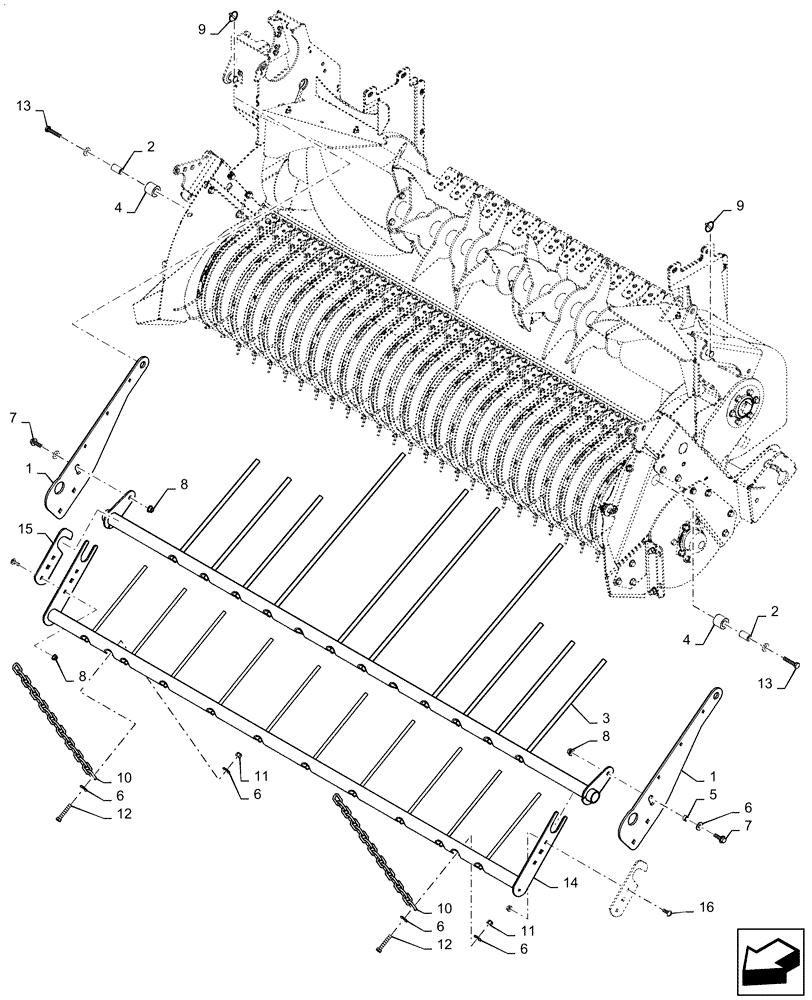

Запчасти Case IH RB465 (60.220.CC[02]) - VAR - 726817 - 1.8M TINE WINDGUARD, OVERSHOT FEEDER (60) - PRODUCT FEEDING

1

84425604

ARM

2шт.

2

84563993

SPACER,10.31mm ID x 18.24mm OD x 33.53mm L

2шт.

3

84412946

WINDGUARD

1.8M OSR Tine

1шт.

4

47361097

SPACER,20mm ID x 34.9mm OD x 31mm L

2шт.

5

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

2шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.

7

9804262

BOLT,M10 x 39.2mm, Cl 8.8

2шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

9

86508947

LINCH PIN,18.8mm OD

2шт.

10

87027237

CHAIN,18 Links x 37.2mm = 670mm L

2шт.

11

9637692

NUT,3/8"-16, GB

2шт.

12

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

13

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

14

84495729

WINDGUARD

1шт.

15

87043879

RETAINER

2шт.

16

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

4шт.
