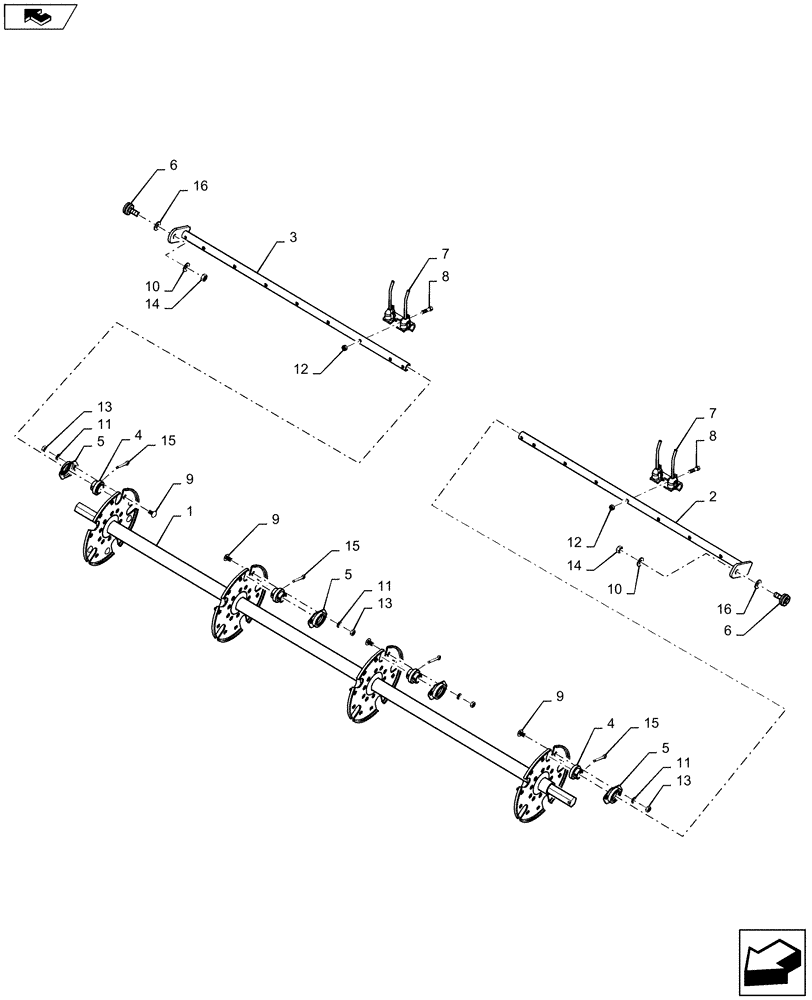

Запчасти Case IH RB465 (60.220.BG[05]) - VAR - 726918, 726989 - 2M REEL ASSEMBLY, 5-BAR WITH RUBBER MOUNTED TINES (60) - PRODUCT FEEDING

1

84293577

PLATE

LH

1шт.

2

84293578

PLATE

RH

1шт.

3

84291845

CAM

LH, Outer

1шт.

4

84291843

CAM

RH, Outer

1шт.

5

578189

FLANGE

4шт.

6

84327847

CAM

RH, Inner

1шт.

7

84327846

CAM

LH, Inner

1шт.

8

84324246

SPHERICAL BEARING,31.75mm ID x 72mm OD x 25mm Thk

2шт.

9

47431597

SPACER,Hex, 33mm ID x 45mm OD x 1.98mm Thk

2шт.

10

84405631

REEL

1шт.

11

47432155

COILED PIN,7/32" OD x 1-3/4" L

2шт.

12

84405642

TINE BAR

LH

5шт.

13

84405638

TINE BAR

RH

5шт.

14

88130

NUT,1/2"-20, GC

10шт.

15

84420719

WASHER,13.08mm ID x 31.8mm OD x 1.5mm Thk

20шт.

16

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

10шт.

17

86641856

BEARING,27.1 mm ID x 47 mm OD x 25.4 mm

20шт.

18

54695

BEARING HOUSING

20шт.

19

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

2шт.

20

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

21

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

40шт.

22

80680

LOCK WASHER,3/8 0.381 CST ZND

40шт.

23

9637692

NUT,3/8"-16, GB

40шт.

24

84364049

SPROCKET

48T, RC50

1шт.

25

84362185

SPROCKET

1шт.

26

84404537

TINE,2 Prong, 96.5mm W x 162.4mm L

60шт.

27

86629544

NUT,5/16” – 18, GR B

80шт.

28

136521

COTTER PIN,5.7mm OD x 44.45mm L

20шт.

29

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

80шт.

30

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

6шт.

31

47395016

TINE

20шт.
