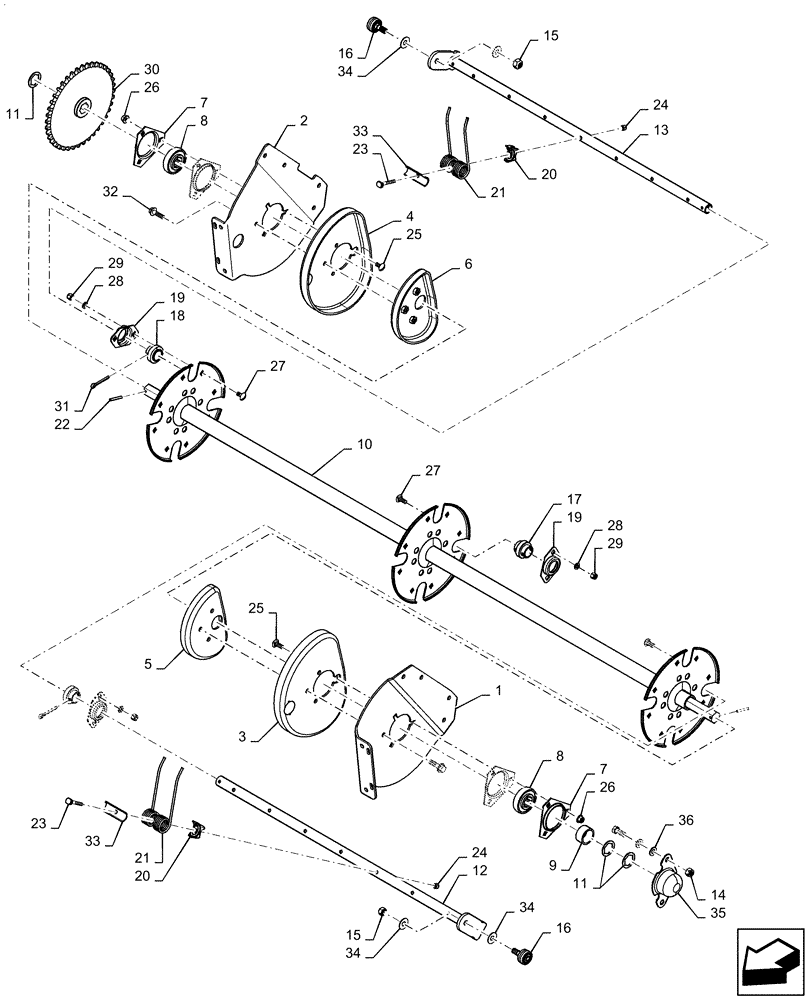

Запчасти Case IH RB465 (60.220.BG[03]) - VAR - 726916 - 1.8M REEL ASSEMBLY, 4-BAR, OVERSHOT FEEDER (60) - PRODUCT FEEDING

1

84532236

PLATE

LH

1шт.

2

84424256

PLATE

RH

1шт.

3

84291845

CAM

LH Outer

1шт.

4

84291843

CAM

RH Outer

1шт.

5

84327846

CAM

LH Inner

1шт.

6

84327847

CAM

RH Inner

1шт.

7

578189

FLANGE

4шт.

8

86594423

BEARING,28.6mm Hex x 72mm OD x 25mm W

2шт.

9

84427184

SPACER,37.3mm ID x 45.3mm OD x 22.5mm Thk

1шт.

10

84296759

REEL

1шт.

11

47447659

SPACER,44 mm OD x 2mm Thk

3шт.

12

84296780

ARM

LH

4шт.

13

84296784

ARM

RH

4шт.

14

100038

NUT,M12 x 1.75, Cl 8

2шт.

15

88130

NUT,1/2"-20, GC

8шт.

16

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

8шт.

17

84266808

BEARING ASSY,27.28mm ID x 47mm OD x 12.7mm W

4шт.

18

86641856

BEARING,27.1 mm ID x 47 mm OD x 25.4 mm

8шт.

19

54695

BEARING HOUSING

12шт.

20

84427925

TINE BAR

56шт.

21

84133738

TINE

56шт.

22

47432155

COILED PIN,7/32" OD x 1-3/4" L

2шт.

23

130891

BOLT,Tine, 5/16" - 18 x 2"

56шт.

24

86629544

NUT,5/16” – 18, GR B

56шт.

25

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

2шт.

26

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

27

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

24шт.

28

80680

LOCK WASHER,3/8 0.381 CST ZND

24шт.

29

9637692

NUT,3/8"-16, GB

24шт.

30

87053413

SPROCKET

40T, RC60

1шт.

31

136521

COTTER PIN,5.7mm OD x 44.45mm L

12шт.

32

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

6шт.

33

134921

BRACKET

56шт.

34

84420719

WASHER,13.08mm ID x 31.8mm OD x 1.5mm Thk

16шт.

35

47390411

COVER

1шт.

36

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.
