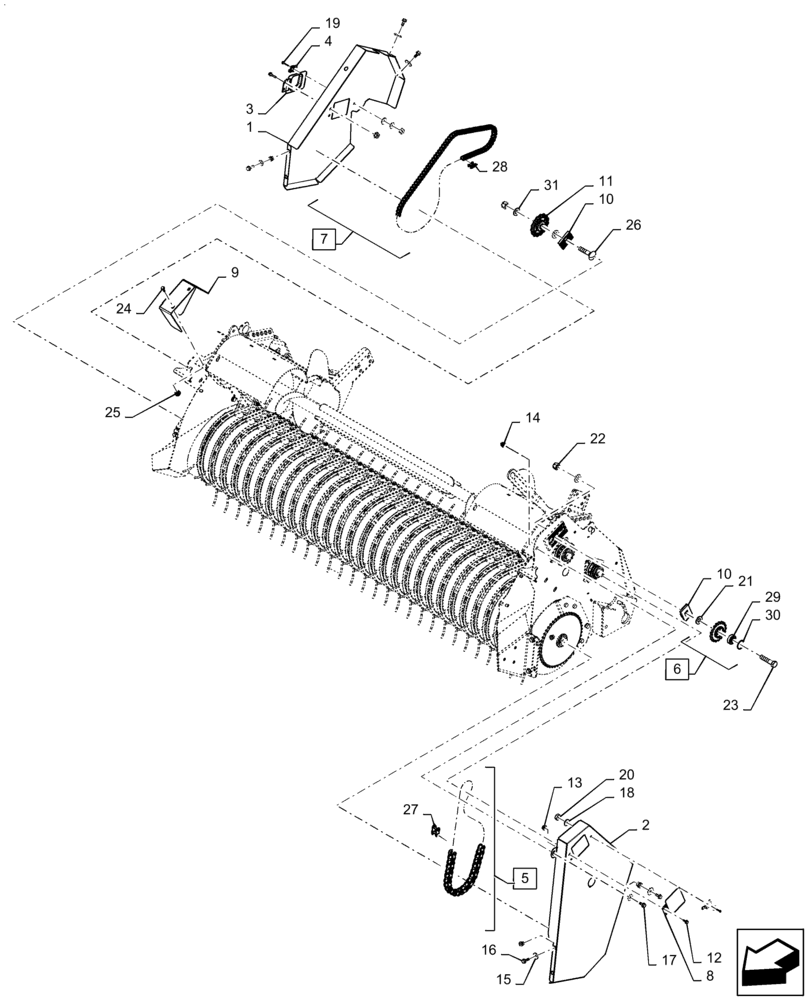

Запчасти Case IH RB465 (60.220.BD[09]) - VAR - 726926, 726959 - PICKUP DRIVE WITH TOP ASSIST ROLL (60) - PRODUCT FEEDING

1

47455602

SHIELD

RH

1шт.

2

47638748

SHIELD

LH

1шт.

3

84290564

COVER

1шт.

4

47325

CLIP

2шт.

5

84547340

CHAIN,RC50, 110 Links x 15.88mm = 1746.25mm

RC50, 110 Pitches, Inc 27

1шт.

6

84553965

GEAR

17T, RC50, Inc 29, 30

1шт.

7

133027

CHAIN

RC60, 82 Pitches, Inc 28

1шт.

8

84290571

PLATE

1шт.

9

84475446

COVER

Top

1шт.

10

47377066

PLATE

1шт.

11

84602660

IDLER

1шт.

12

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

4шт.

13

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

14

86610200

THREADED INSERT,M8 x 1.25

8шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

16

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

17

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

18

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

19

385683

BOLT,M4 x 0.7 x 12.92mm, Cl 8.8

2шт.

20

100012

NUT,M4 x 0.7, Cl 8

2шт.

21

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

4шт.

22

86000441

NUT,M16 x 2.0, Cl 8

2шт.

23

120092

BOLT,M16 x 70mm, Cl 8.8

1шт.

24

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

25

86610198

INSERT,M6 x 1

2шт.

26

47487761

CARRIAGE BOLT,Reg Sq Nk, M16 x 2 x 70mm, Cl 8.8

1шт.

27

84545610

CONNECTING LINK

1шт.

Not Illustrated

1шт.

28

84134452

CONNECTING LINK,RC60, 3/4" Pitch

1шт.

Not Illustrated

1шт.

29

66553

BALL BEARING,16.13mm ID x 40mm OD x 12.12mm W

1шт.

30

300644

SNAP RING,M40, Internal

1шт.

31

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.
