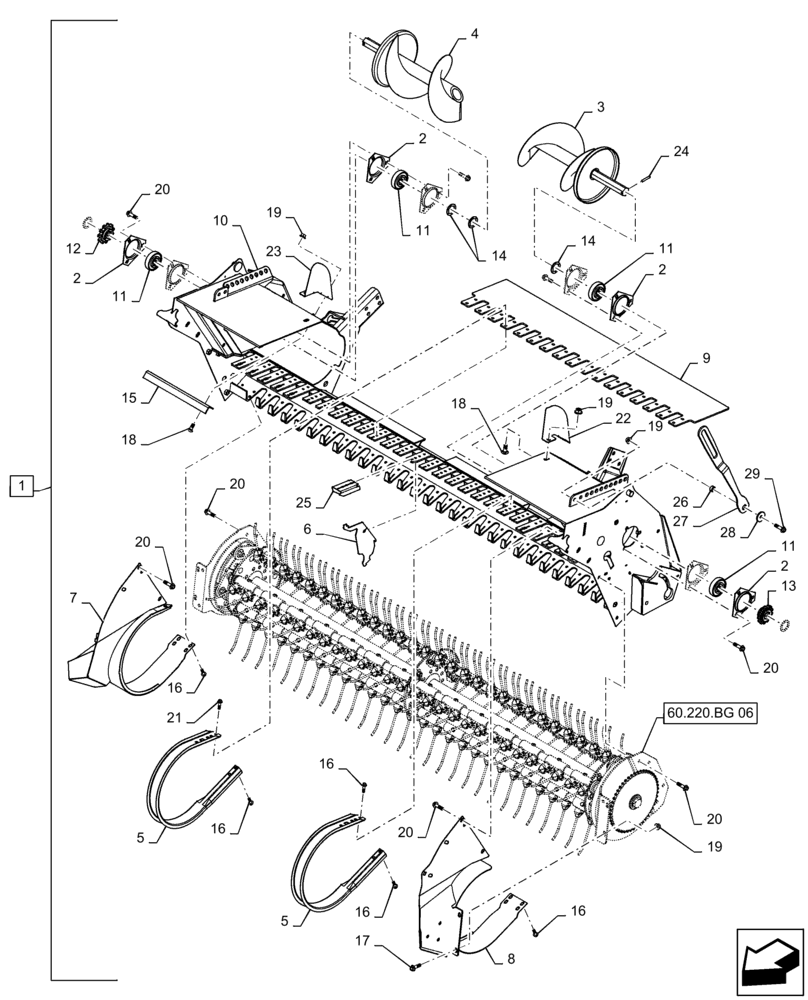

Запчасти Case IH RB465 (60.220.BD[07]) - VAR - 726918 - 1.8M NON ROTOR PICKUP ASSEMBLY (60) - PRODUCT FEEDING

1

47517967

PICK-UP

Service, 1.8M Service Non-Assist Roll

1шт.

2

578189

FLANGE

8шт.

3

84375533

AUGER

LH

1шт.

4

84375559

AUGER

RH

1шт.

5

84329282

GUARD

27шт.

6

84297360

DIVIDER

27шт.

7

84305031

GUIDE

RH

1шт.

Used with Gathering Wheels

1шт.

7

47847841

GUARD

RH

1шт.

Used without Gathering Wheels

1шт.

8

84305034

GUIDE

LH

1шт.

Used with Gathering Wheels

1шт.

8

47881435

GUARD

LH

1шт.

Used without Gathering Wheels

1шт.

9

47864510

FLOOR,260mm W x 1150mm L x 6.35mm Thk, Polyurethane

1шт.

10

84522950

FRAME

1.8M Pickup

1шт.

11

86594423

BEARING,28.6mm Hex x 72mm OD x 25mm W

4шт.

12

84297306

SPROCKET

11T, RC60

1шт.

13

87037892

SPROCKET

13T, RC50

1шт.

14

47447659

SPACER,44 mm OD x 2mm Thk

6шт.

15

84281955

ANGLE

2шт.

16

87039762

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

82шт.

17

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

18

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

6шт.

19

9804278

FLANGE NUT,M10 x 1.5, Cl 8

10шт.

20

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

24шт.

21

87577839

SELF-TAP SCREW,Hex Washer Hd, 5/16" - 18 x 7/8"

34шт.

22

84385892

SHIELD

LH Upper

1шт.

23

84385890

SHIELD

RH Upper

1шт.

24

86625115

PIN,M6 x 40mm OAL

2шт.

25

84404702

DIVIDER

27шт.

26

87020910

SPACER,10.4mm ID x 19mm OD x 8.9mm Thk

1шт.

27

84307932

LINK

1шт.

28

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

1шт.

29

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.
