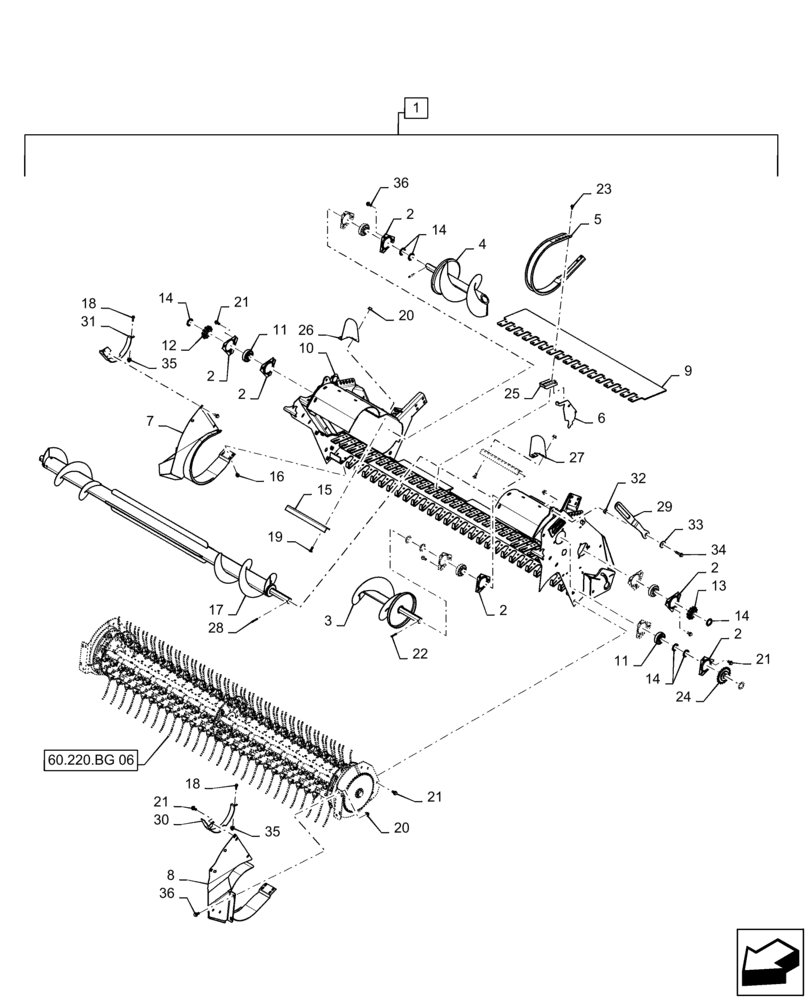

Запчасти Case IH RB465 (60.220.BD[06]) - VAR - 726989 - 1.8M ROTOR PICKUP ASSEMBLY (60) - PRODUCT FEEDING

1

47517973

PICK-UP

Service, 1.8M with Assist Roll

1шт.

2

578189

FLANGE

12шт.

3

84375530

AUGER

LH

1шт.

4

84375560

AUGER

RH

1шт.

5

84329282

GUARD

27шт.

6

84297360

DIVIDER

27шт.

7

84305031

GUIDE

RH

1шт.

Used with Gathering Wheels

1шт.

7

47847841

GUARD

RH

1шт.

Used without Gathering Wheels

1шт.

8

84305034

GUIDE

LH

1шт.

Used with Gathering Wheels

1шт.

8

47881435

GUARD

LH

1шт.

Used with Gathering Wheels

1шт.

9

47864510

FLOOR,260mm W x 1150mm L x 6.35mm Thk, Polyurethane

1шт.

10

84522982

FRAME

1.8M Rotor Pickup

1шт.

11

86594423

BEARING,28.6mm Hex x 72mm OD x 25mm W

6шт.

12

84297306

SPROCKET

11T, RC60

1шт.

13

87037892

SPROCKET

13T, RC50

1шт.

14

47447659

SPACER,44 mm OD x 2mm Thk

8шт.

15

84281955

ANGLE

2шт.

16

87039762

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

82шт.

17

47470834

ROLL

Assist

1шт.

18

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

19

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

6шт.

20

9804278

FLANGE NUT,M10 x 1.5, Cl 8

17шт.

21

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

24шт.

22

86625115

PIN,M6 x 40mm OAL

2шт.

23

87577839

SELF-TAP SCREW,Hex Washer Hd, 5/16" - 18 x 7/8"

34шт.

24

84546571

SPROCKET

19T, RC50

1шт.

25

84404702

DIVIDER

27шт.

26

84385890

SHIELD

RH, Upper

1шт.

27

84385892

SHIELD

LH, Upper

1шт.

28

88529

LOCK PIN,5.56mm OD x 44.45mm L, Slotted

2шт.

29

84596266

LINK

1шт.

30

84558469

PLATE

LH

1шт.

31

47453913

PLATE

RH

1шт.

32

87020910

SPACER,10.4mm ID x 19mm OD x 8.9mm Thk

1шт.

33

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

1шт.

34

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

35

86610198

INSERT,M6 x 1

2шт.

36

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

13шт.
