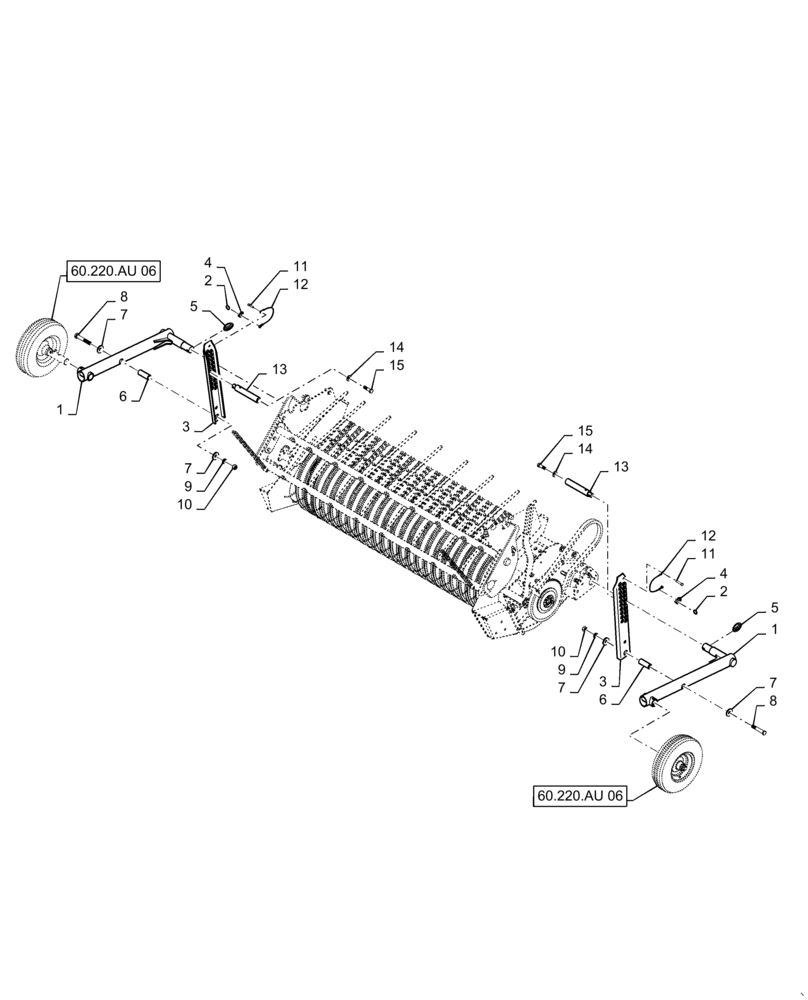

Запчасти Case IH RB465 (60.220.AU[04]) - PICK-UP WHEEL ASSY, NO TOOLS, OVERSHOT FEEDER PICKUP (60) - PRODUCT FEEDING

1

84193264

SUPPORT

2шт.

2

84012277

KEY RING

2шт.

3

84195093

CHANNEL

2шт.

4

270184

LINCH PIN,6.35mm OD

2шт.

5

87056822

PIN

2шт.

6

84220857

SPACER,12.7mm ID x 25.4mm OD x 70.5mm L

2шт.

7

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

4шт.

8

9837937

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

9

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

10

100038

NUT,M12 x 1.75, Cl 8

2шт.

11

80756

COTTER PIN,1/8" x 3/4"

2шт.

12

47431237

WIRE ROPE

2шт.

13

84479182

PIN,35mm OD x 207mm L

2шт.

14

14408

WASHER,0.56" ID x 1.25" OD x 0.13" Thk

2шт.

15

9509260

LOCK BOLT,Hex, M12 x 40mm, Cl 8.8

2шт.
