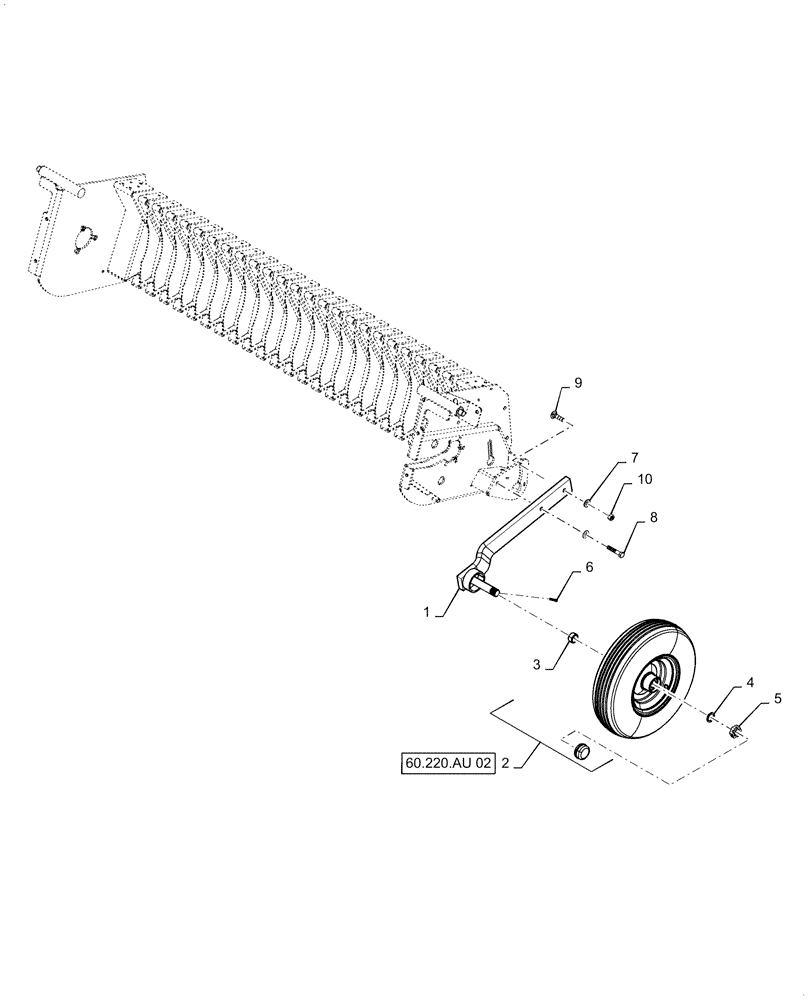

Запчасти Case IH RB465 (60.220.AU[01]) - VAR - 726821 - PICKUP WHEEL SUPPORT, BOLT ON (60) - PRODUCT FEEDING

1

84194676

SUPPORT

1шт.

2

86616347

WHEEL ASSY

Pickup

1шт.

3

714411

COLLAR

1шт.

4

26130

WASHER,26mm ID x 35mm OD x 1.7mm Thk

2шт.

5

603373

JAM NUT,Slotted, 1" - 14, Gr 2

1шт.

6

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

8

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

9

80043480

BOLT

1шт.

10

9706685

NUT,M12 x 1.75, Cl 8

1шт.
