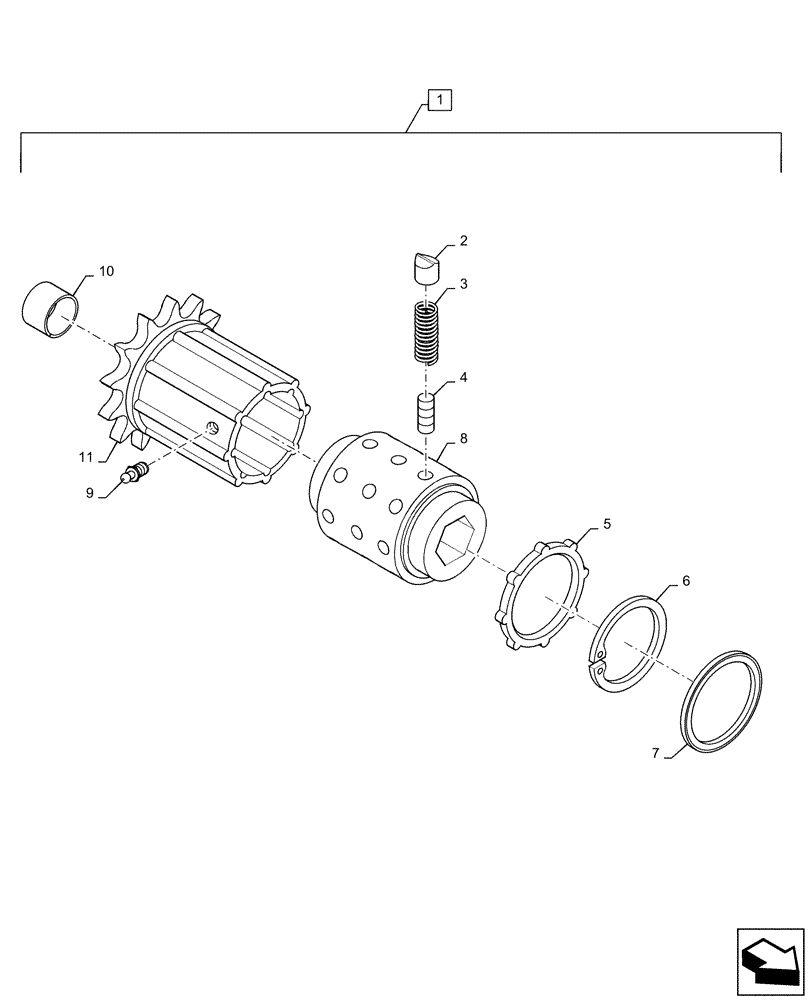

Запчасти Case IH RB465 (60.220.AN[05]) - RADIAL PIN CLUTCH ASSEMBLY (60) - PRODUCT FEEDING

1

47578545

CLUTCH

Radial Pin, Incl 2 - 11

1шт.

2

700703406

CAM

21шт.

3

386510

SPRING,Compression, 13mm OD X 13.2mm L

External

21шт.

4

386511

SPRING,Compression, 7mm OD x 13.2mm L

Internal

21шт.

5

86636027

DISC

1шт.

6

80300633

SNAP RING,M80, Int

1шт.

7

86634290

SEALING RING,58.5mm ID x 84mm OD x 6mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

Hub, Incl in 1

1шт.

9

84447449

LUBE NIPPLE,M8.2 x 1

2шт.

10

84182666

BUSHING

1шт.

11

NSS

NOT SOLD SEPARAT

Clutch Housing, Incl in 1

1шт.
