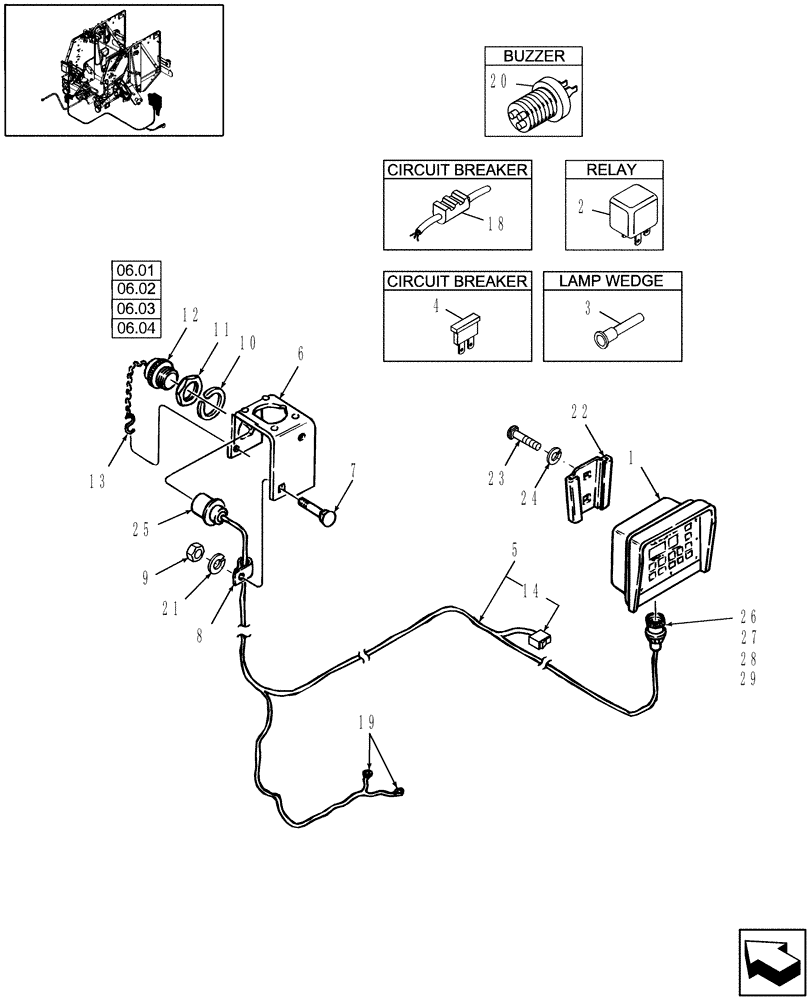

Запчасти Case IH RB464 (06.32) - ELECTRONIC CONTROL UNIT, NET-TWINE, NORTH AMERICA (06) - ELECTRICAL SYSTEMS

1

87036479

ALARM

Net-Twine, North America

1шт.

Refer to Repair Manual for Service Instructions

1шт.

2

86529089

RELAY

30A

1шт.

MAINTENANCE PART

1шт.

3

86502182

BULB

1шт.

4

86564681

FUSE

20A

1шт.

MAINTENANCE PART

1шт.

5

87010118

WIRE HARNESS

Tractor

1шт.

Refer to Repair Manual for Service Instructions

1шт.

6

787868

BRACKET

1шт.

7

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

8

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

1шт.

9

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

10

636665

LOCK WASHER,43.18mm ID x 52.68mm OD x 1.57mm Thk

1шт.

11

636666

NUT,1 11/16"-18

1шт.

12

767456

PLUG

Dust

1шт.

13

617887

HOOK

S

1шт.

14

86605661

SWITCH

Remote Override

1шт.

18

86517521

KIT

30A, Includes: Ref. 30 - 34

1шт.

MAINTENANCE PART

1шт.

19

48889

TERMINAL CONNECTOR,10 - 12

Ring, 5/16", 12-10 Ga.

2шт.

20

86507086

ALARM

1шт.

21

492-11025

LOCK WASHER,1/4"

1шт.

22

847590

BRACKET

Socket

1шт.

23

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

24

492-11031

LOCK WASHER,5/16"

2шт.

25

9861362

POWER SOCKET

18 Pin

1шт.

26

9622758

COUPLING RING

1шт.

27

9602128

KIT

1шт.

28

850072

COLLAR CLAMP

1шт.

29

9602122

KIT

1шт.

30

86513960

FUSE

30A, Sealed

1шт.

Not Illustrated

1шт.

31

767994

TERMINAL CONNECTOR,10 - 12 SAE

Ring, 1/2", 12-10 Ga.

1шт.

Not Illustrated

1шт.

32

59273

TERMINAL CONNECTOR,10 - 12 SAE

Ring, 3/8", 12-10 Ga.

1шт.

Not Illustrated

1шт.

33

59272

TERMINAL CONNECTOR,12 - 10

Ring, 1/4" Ring, 12-10 Ga.

1шт.

Not Illustrated

1шт.

34

48889

TERMINAL CONNECTOR,10 - 12

Ring, 5/16", 12-10 Ga.

1шт.

Not Illustrated

1шт.
