Запчасти Case IH RB464 (06.12) - LIGHTING, EUROPE & R.O.W. (06) - ELECTRICAL SYSTEMS

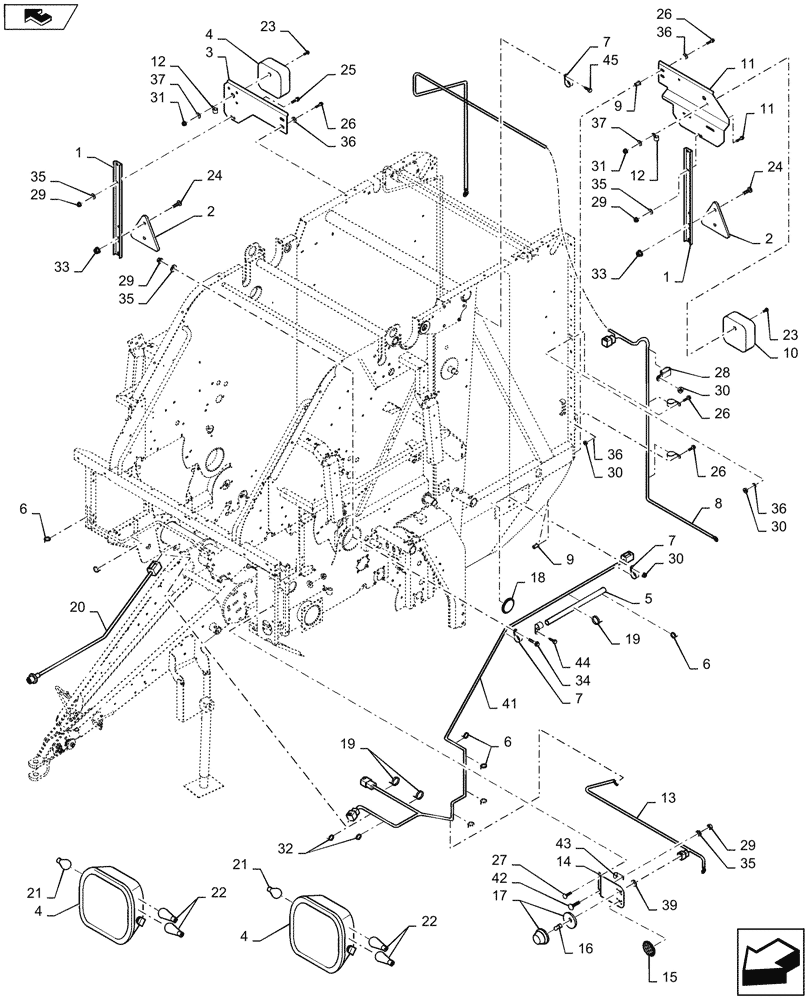

Схема запчастей Case IH RB464 - (06.12) - LIGHTING, EUROPE & R.O.W. (06) - ELECTRICAL SYSTEMS
36
2
9
35
36
29
12
4
22
24
43
28
30
24
35
6
21
29
25
35
26
15
19
26
37
34
4
30
37
5
22
8
19
23
9
30
36
1
7
14
39
11
36
5
29
26
18
7
12
33
30
33
7
4
17
44
32
26
1
16
41
21
45
home
10
29
3
31
2
42
6
35
27
23
11
31
6
20
13

Артикул

Название

Примечание

Количество

1

86631464

BRACKET

2шт.

2

BER746294

HYDRAULIC SYSTEM

Red

2шт.

3

86631462

BRACKET

1шт.

4

84037090

TAIL LAMP,12V, 21W, Amber/Red

Red

1шт.

5

258985

GROMMET

Plastic Tube

1шт.

6

9818147

CLAMP

12шт.

7

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

10шт.

8

86618111

WIRE HARNESS

Lighting

1шт.

9

86610201

INSERT,M8

Threaded, M8

4шт.

10

84037093

TAIL LAMP,12V, 21W, Amber/Red

Clear

1шт.

11

86631486

BRACKET

1шт.

12

84600729

SUPPORT

2шт.

13

86618112

WIRE HARNESS

LH Extension

1шт.

14

86615932

BRACKET

2шт.

15

799266

LAMP REFLECTOR

White

2шт.

16

470016

BULB

12V, 10W

2шт.

17

336483

POSITION LAMP

LIGHT, TAIL

2шт.

18

435895

REFLECTOR,80mm OD, Orange

Yellow, Pickup LH & RH

4шт.

Not Illustrated

1шт.

19

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

20

86614960

WIRE HARNESS

Main

1шт.

21

418870

BULB,12V, 10W

12V, 10W

2шт.

22

398877

BULB,12V, 21W

4шт.

23

86614960

WIRE HARNESS

4шт.

24

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

4шт.

25

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

26

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

8шт.

27

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

4шт.

28

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

3/4", 13/32" Bolt

2шт.

29

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

7шт.

30

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

9шт.

31

825-1404

NUT,M4, Cl 8

4шт.

32

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

2шт.

33

86511825

SCREW,Phillips Drive, Pan HD, M4 x 30mm, Cl 4.8

4шт.

34

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

2шт.

35

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

7шт.

36

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

37

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

4шт.

39

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

6шт.

41

86618113

WIRE HARNESS

1шт.

42

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

2шт.

43

9507807

CLAMP,8.3mm ID, 6.7mm Bolt Hole, P Type

6шт.

44

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4"-20 x 5/8"

1шт.

45

570821

SELF-TAP SCREW,Hex Flng, 5/16" - 18 x 5/8"

Flg, USR, 5/16"-18 x 5/8"

2шт.

Выбрано товаров: 44
