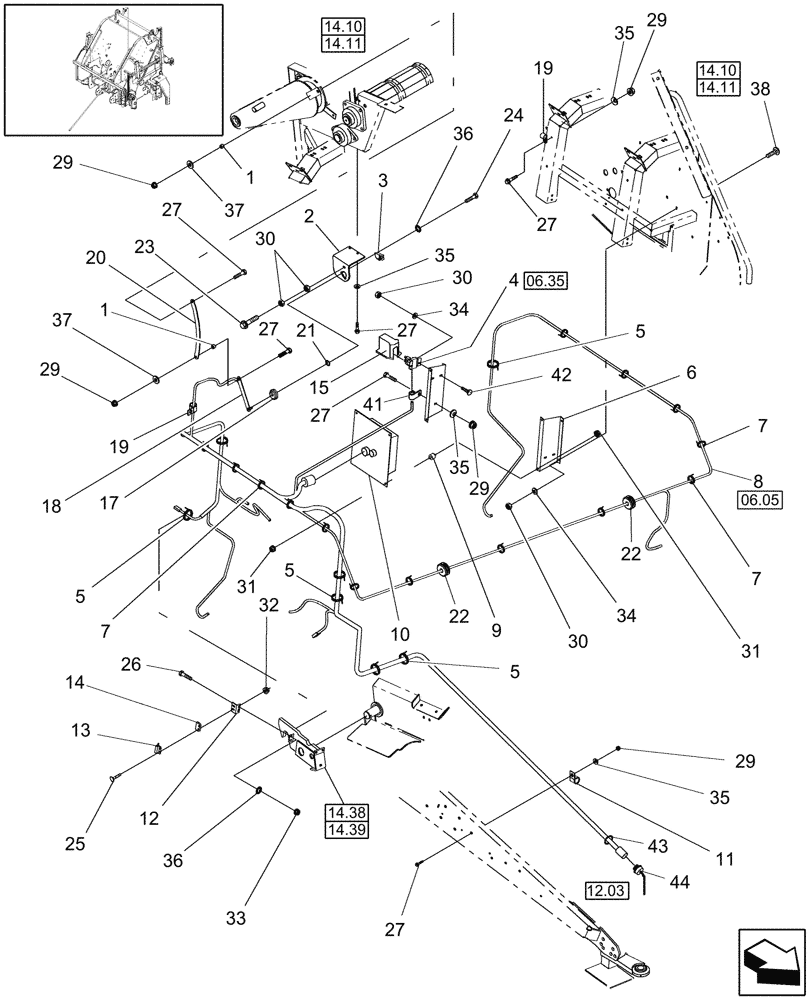

Запчасти Case IH RB464 (06.03) - ELECTRONICS, BALE SLICE™ & ROTOR CUTTER (06) - ELECTRICAL SYSTEMS

1

177822

SPACER,8.33mm ID x 12.7mm OD x 4.32mm Thk

21/64" ID x .500" OD x .170" Lg., Serial Range: -YBN046947

2шт.

NORTH AMERICA

1шт.

1

177822

SPACER,8.33mm ID x 12.7mm OD x 4.32mm Thk

21/64" ID x .500" OD x .170" Lg., Serial Range: -724850020

2шт.

EUROPE & R.O.W.

1шт.

1

84313651

BUSHING

, Start Serial: YBN046948

2шт.

NORTH AMERICA

1шт.

1

84313651

BUSHING

, Start Serial: 724850021

2шт.

EUROPE & R.O.W.

1шт.

2

84176297

ANGLE

, Serial Range: -YBN046947

1шт.

NORTH AMERICA

1шт.

2

84176297

ANGLE

, Serial Range: -724850020

1шт.

EUROPE & R.O.W.

1шт.

2

84327197

BRACKET, SUPPORTING

, Start Serial: YBN046948

1шт.

NORTH AMERICA

1шт.

2

84327197

BRACKET, SUPPORTING

, Start Serial: 724850021

1шт.

EUROPE & R.O.W.

1шт.

3

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

Tailgate

1шт.

MAINTENANCE PART

1шт.

4

84226853

KIT

Relay Conversion

1шт.

MAINTENANCE PART

1шт.

5

529070

CABLE TIE,368.3mm L

7шт.

6

86618546

SUPPORT

2шт.

7

263117

CABLE TIE,292.1mm L, Nylon, Black

18шт.

8

86622152

WIRE HARNESS

Main

1шт.

86520117

ELEC CONNECTOR,Male, 16 - 8 SAE

18 Pin, Attaches to Tractor

1шт.

Not Illustrated

1шт.

9

264795

ELECTRIC INSULATION

4шт.

10

87035276

ECU

Bale Slice™ & Rotor Cutter, Includes Ref. 39

1шт.

10

87035276R

REMAN ELECT CONTROL

REMAN-MONITOR ECU - Bale Slice & Rotor Cutter

1шт.

10

87035276C

CORE-ELECTRONIC CONT

ECU - Bale Slice & Rotor Cutter

1шт.

11

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

12

86611813

ANGLE

1шт.

Non-Adjustable Tailgate Latch

1шт.

12

87709056

CHANNEL

1шт.

Adjustable Tailgate Latch

1шт.

13

86594422

SENSOR

Tailgate

1шт.

MAINTENANCE PART

1шт.

14

86624468

SPACER,1.65" L x 5/16” Thk

Switch, Nylon

1шт.

15

9612631

COVER

1шт.

17

87034842

HUB

, Serial Range: -YBN046947

1шт.

17

87034842

HUB

, Serial Range: -724850020

1шт.

17

84308004

HUB

, Start Serial: YBN046948

1шт.

Components are N.S.S.

1шт.

17

84308004

HUB

, Start Serial: 724850021

1шт.

Components are N.S.S.

1шт.

18

86614361

ARM

, Serial Range: -YBN046947

1шт.

18

86614361

ARM

, Serial Range: -724850020

1шт.

18

84312184

ARM

, Start Serial: YBN046948

1шт.

18

84312184

ARM

, Start Serial: 724850021

1шт.

19

9507807

CLAMP,8.3mm ID, 6.7mm Bolt Hole, P Type

1шт.

20

86617869

LINK

, Serial Range: -YBN046947

1шт.

20

86617869

LINK

, Serial Range: -724850020

1шт.

20

84312187

ARM

, Start Serial: YBN046948

1шт.

20

84312187

ARM

, Start Serial: 724850021

1шт.

21

86613601

WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk

Urethane

1шт.

22

173011

GROMMET,1” ID x 1.750” OD x .500” Tk

1-3/4" OD x 1" ID

2шт.

23

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

1шт.

24

412255

BOLT,Hex, M4 x 20mm, Cl 8.8

2шт.

25

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

Pan Hd, Stainless Steel, #10-24 x 3/4"

2шт.

26

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

Non-Adjustable Tailgate Latch

1шт.

27

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

28

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

29

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

30

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

8шт.

31

523282

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

32

86900323

NUT,#10 - 24

Lock, Washer Hd, Stainless, #10-24

2шт.

33

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

Non-Adjustable Tailgate Latch

1шт.

34

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

Non-Adjustable Tailgate Latch

1шт.

34

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

Adjustable Tailgate Latch

1шт.

35

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

36

9672521

LOCK WASHER,Ext Tooth, #10

2шт.

37

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

38

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

6шт.

39

86529089

RELAY

30 Amp

1шт.

Not Illustrated

1шт.

MAINTENANCE PART

1шт.

41

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

42

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

2шт.

43

792026

LOCKING RING,1.06" ID x 1.25" OD x 0.13" Thk

Split, Int, 1.00"

1шт.

44

788614

PROTECTING COVER,2" OD x 1.7" Long

1шт.
