Запчасти Case IH RB464 (06.02) - ELECTRONICS, NET-TWINE (06) - ELECTRICAL SYSTEMS

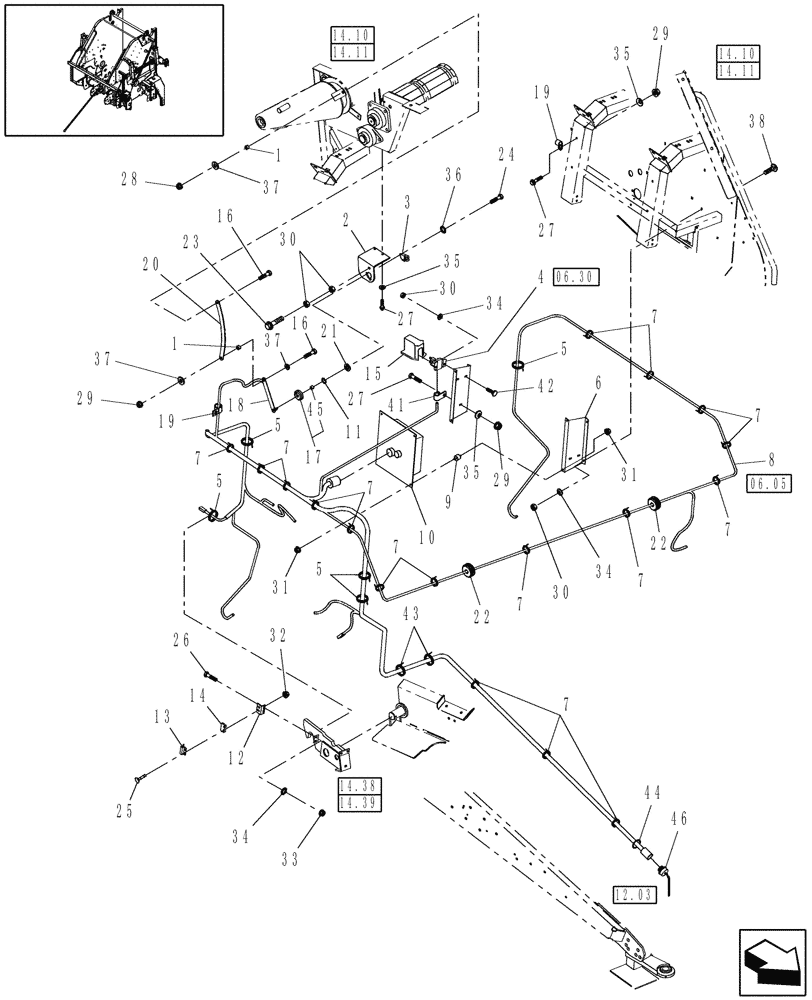

Схема запчастей Case IH RB464 - (06.02) - ELECTRONICS, NET-TWINE (06) - ELECTRICAL SYSTEMS
06.30
7
11
20
7
7
4
34
2
37
35
10
38
45
1
31
12
35
30
36
16
26
5
24
5
15
7
30
46
29
22
13
35
3
44
22
37
18
31
30
7
21
16
1
7
7
9
27
37
42
5
6
7
19
34
32
19
29
7
17
25
28
34
5
43
29
27
14
7
27
23
41
33
8
14.11
14.11
14.39
12.03
14.10
14.10
06.05
14.38

Артикул

Название

Примечание

Количество

1

177822

SPACER,8.33mm ID x 12.7mm OD x 4.32mm Thk

21/64" ID x .500" OD x .170" Lg., Serial Range: -YBN046947

1шт.

NORTH AMERICA

1шт.

1

177822

SPACER,8.33mm ID x 12.7mm OD x 4.32mm Thk

, Serial Range: -724850020

1шт.

EUROPE & R.O.W.

1шт.

1

84313651

BUSHING

, Start Serial: YBN046948

1шт.

NORTH AMERICA

1шт.

1

84313651

BUSHING

, Start Serial: 724850021

1шт.

EUROPE & R.O.W.

1шт.

2

84176297

ANGLE

, Serial Range: -YBN046947

1шт.

NORTH AMERICA

1шт.

2

84176297

ANGLE

, Serial Range: -724850020

1шт.

EUROPE & R.O.W.

1шт.

2

84327197

BRACKET, SUPPORTING

, Start Serial: YBN046948

1шт.

NORTH AMERICA

1шт.

2

84327197

BRACKET, SUPPORTING

, Start Serial: 724850021

1шт.

EUROPE & R.O.W.

1шт.

3

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

Tailgate

1шт.

MAINTENANCE PART

1шт.

4

84226853

KIT

Relay Conversion, Serial Range: -Y9N043084

1шт.

MAINTENANCE PART

1шт.

4

82017871

RELAY,12V, 20A

, Start Serial: Y9N043085

1шт.

MAINTENANCE PART

1шт.

5

529070

CABLE TIE,368.3mm L

CABLE STRAP

7шт.

6

86618546

SUPPORT

2шт.

7

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

17шт.

8

86622152

WIRE HARNESS

Main, Serial Range: -Y9N043084

1шт.

8

84214838

HARNESS

WIRE, Main, Start Serial: Y9N043085

1шт.

9

264795

ELECTRIC INSULATION

4шт.

10

86976107

ECU

Includes: Ref. 39

1шт.

10

87035280R

REMAN ELECT CONTROL

REMAN-MONITOR RB464, RB564, Reman For New P/N 86976107

1шт.

10

87035280C

CORE-ELECTRONIC CONT

Return Number

1шт.

11

100-3437

SNAP RING,#37, Ext

2шт.

12

86611813

ANGLE

1шт.

12

87709056

CHANNEL

1шт.

13

86594422

SENSOR

1шт.

MAINTENANCE PART

1шт.

14

86624468

SPACER,1.65" L x 5/16” Thk

Switch, Nylon

1шт.

15

9612631

COVER

1шт.

16

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

17

86643172

ASSEMBLY

Pivot Mount, Serial Range: -YBN046947

1шт.

NORTH AMERICA

1шт.

17

86643172

ASSEMBLY

Pivot Mount, Serial Range: -724850020

1шт.

EUROPE & R.O.W.

1шт.

17

84308004

HUB

, Start Serial: YBN046948

1шт.

Components are N.S.S.

1шт.

NORTH AMERICA

1шт.

17

84308004

HUB

, Start Serial: 724850021

1шт.

Components are N.S.S.

1шт.

EUROPE & R.O.W.

1шт.

18

86614361

ARM

, Serial Range: -YBN046947

1шт.

NORTH AMERICA

1шт.

18

86614361

ARM

, Serial Range: -724850020

1шт.

EUROPE & R.O.W.

1шт.

18

84312184

ARM

, Start Serial: YBN046948

1шт.

NORTH AMERICA

1шт.

18

84312184

ARM

, Start Serial: 724850021

1шт.

EUROPE & R.O.W.

1шт.

19

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

20

86617869

LINK

, Serial Range: -YBN046947

1шт.

NORTH AMERICA

1шт.

20

86617869

LINK

, Serial Range: -724850020

1шт.

EUROPE & R.O.W.

1шт.

20

84312187

ARM

, Start Serial: YBN046948

1шт.

NORTH AMERICA

1шт.

20

84312187

ARM

, Start Serial: 724850021

1шт.

EUROPE & R.O.W.

1шт.

21

86613601

WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk

Urethane

1шт.

22

173011

GROMMET,1” ID x 1.750” OD x .500” Tk

1-3/4" OD x 1" ID

2шт.

23

844-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

1шт.

24

412255

BOLT,Hex, M4 x 20mm, Cl 8.8

2шт.

25

86613601

WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk

Urethane

2шт.

26

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

2шт.

Non-Adjustable Tailgate Latch

1шт.

27

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

28

126712A1

TUBE,3" OD, 1962 mm Length

Prevailing Torque, CL 9, M8 x 1.25

1шт.

29

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

30

825-1406

NUT,M6, Cl 8

8шт.

31

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

32

86900323

NUT,#10 - 24

#10-24, Lock Washer Hd, Stainless

2шт.

33

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

Non-Adjustable Tailgate Latch

1шт.

34

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

Non-Adjustable Tailgate Latch

1шт.

34

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

Adjustable Tailgate Latch

1шт.

35

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

36

493-41020

LOCK WASHER,Ext Tooth, #10

2шт.

37

495-21038

WASHER,5/16"

2шт.

38

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

6шт.

39

86529089

RELAY

1шт.

Not Illustrated

1шт.

MAINTENANCE PART

1шт.

41

84137881

STRAP,7.6mm W x 760mm L - Black

1шт.

42

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

2шт.

43

87034173

CABLE TIE,774.7mm L

CABLE STRAP Tie, .50" x 28.3"

2шт.

44

792026

LOCKING RING,1.06" ID x 1.25" OD x 0.13" Thk

Split, Int, 1.00"

1шт.

45

84024794

BUSHING

1шт.

46

788614

PROTECTING COVER,2" OD x 1.7" Long

1шт.

Выбрано товаров: 98
