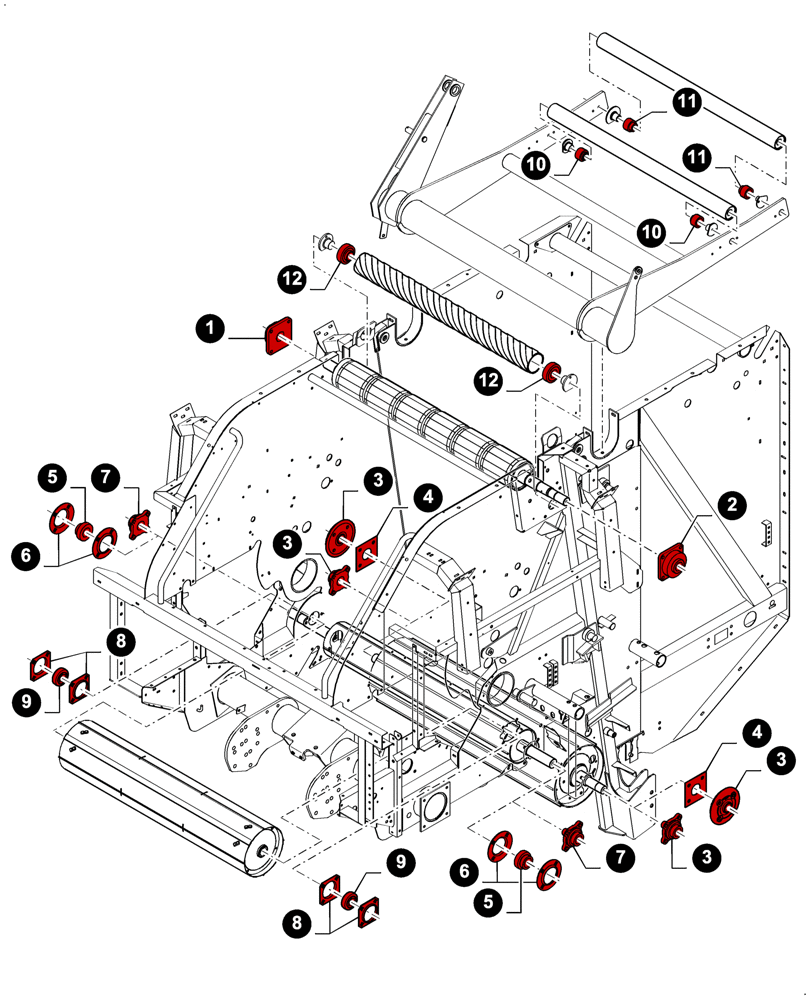

Запчасти Case IH RB464 (00.00RB216) - MAINTENANCE PARTS, MAIN FRAME ROLLS (00) - GENERAL

1

86609558

BEARING ASSY,45mm ID

1.772" ID, RH, Drive roll

1шт.

2

86978595

BEARING ASSY

1.969" ID, LH, Drive roll

1шт.

FOR RB454 ONLY

1шт.

2

86590752

BEARING ASSY

1.969" ID, LH, Drive roll

1шт.

FOR RB464 ONLY

1шт.

3

86590753

BEARING ASSY

1.575" ID, Floor roll, Rotor

2шт.

3

87027838

BEARING ASSY

40 mm ID, Round, Floor roll, Stuffer feeder

2шт.

BEARING & HOUSING ARE SELECT-FIT. BEARING IS NSS

1шт.

4

87660306

WEAR PLATE

4шт.

FOR RB454 ONLY

1шт.

5

86978603

BEARING ASSY,45mm ID x 85mm OD x 22mm W

& Collar, Starter roll

2шт.

STANDARD PICK-UP

1шт.

STUFFER FEEDER

1шт.

6

86837676

FLANGED BEARING

Starter roll

4шт.

STANDARD PICK-UP

1шт.

STUFFER FEEDER

1шт.

7

86610638

BEARING ASSY,45mm ID

1.772" ID, Starter roll

2шт.

8

86837676

FLANGED BEARING

Fixed roll

4шт.

9

286909

BALL BEARING,38.11mm Hex x 84.99mm OD x 30mm W

1-1/2" Hex Bore, Fixed roll

2шт.

10

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

Belt tension, Front serpentine roller

2шт.

11

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

Belt tension, Rear serpentine roller

2шт.

FOR RB454 ONLY

1шт.

11

86500662

BEARING ASSY

Belt tension, Rear serpentine roller

2шт.

BEARING & HOUSING ARE SELECT-FIT. BEARING IS NSS

1шт.

FOR RB464 ONLY

1шт.

12

9845576

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

Backwrap roller

2шт.
