Запчасти Case IH RB464 (18.98) - DIA KIT, HYDRAULIC ROTOR FEEDER REVERSE (18) - ACCESSORIES

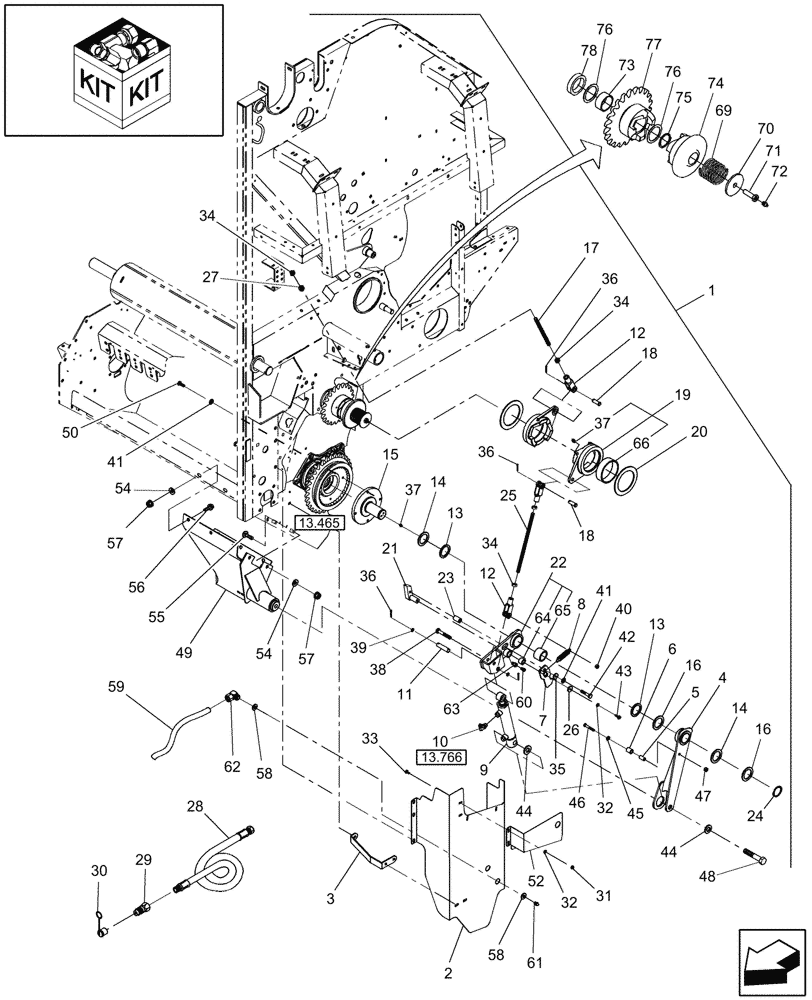

Схема запчастей Case IH RB464 - (18.98) - DIA KIT, HYDRAULIC ROTOR FEEDER REVERSE (18) - ACCESSORIES
13.465
54
76
4
66
58
50
55
38
18
25
1
46
64
34
32
3
30
31
19
62
9
14
17
13
56
34
36
11
36
40
37
14
44
63
21
72
36
49
69
32
26
54
33
52
75
29
47
57
71
27
60
18
12
35
77
42
34
61
13
41
70
78
57
76
37
41
44
59
23
8
24
45
22
15
39
43
2
16
73
28
7
74
48
6
5
58
65
12
10
20
16
13.766

Артикул

Название

Примечание

Количество

1

84193514

HOSE KIT

Hydraulic Rotor Feeder Reverse, Includes: Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87055153

SHIELD

1шт.

3

47378061

STRAP

1шт.

4

87012903

SUPPORT

Includes: Bushing 65553

1шт.

5

86634543

SPACER

1шт.

6

87023405

SPACER,13.64mm ID x 19.18mm OD x 22.9mm L

1шт.

7

87394426

ARM

1шт.

8

32306

SPRING

1шт.

9

87029395

CYLINDER ASSY.,Double Acting, 19.05mm Rod, 119.89mm Stroke

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

10

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

11

142823

CLEVIS PIN

5/8" x 2-9/16"

1шт.

12

86627455

CLEVIS,1/2" - 20

3шт.

13

72022

WASHER

Special

2шт.

14

762217

WASHER

2шт.

15

87013009

HUB

1шт.

16

87652388

WASHER,45.24mm ID x 56.36mm OD x 1.52mm Thk

1шт.

17

87013009

HUB

1шт.

18

76877

CLEVIS PIN,12.6mm OD x 34.52mm L

2шт.

19

86705574

HUB

Outer

2шт.

20

86630617

WASHER

2шт.

21

87394424

SUPPORT

1шт.

22

87012838

ARM

1шт.

23

87394427

SHAFT

1шт.

24

11487

SNAP RING,#175, Ext

1шт.

25

86705723

THREADED ROD

1шт.

26

213137

WASHER,6.76mm ID x 25.4mm OD x 3.17mm Thk

.266" ID x 1.00" OD x .123" Thk.

1шт.

27

29790

NUT,1/2" - 20

Hub Bolt, 1/2"-20

1шт.

28

86635085

HOSE

2шт.

29

9801618

QUICK MALE COUPLING,1/2" - 14

Male, 1/2"-14 NPTF

2шт.

30

87017808

DUST CAP

Blue

2шт.

31

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

32

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

33

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

34

87309

JAM NUT,Jam, 1/2"-20, G2

4шт.

35

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

1шт.

36

80755

COTTER PIN,1/8" OD x 1" L

4шт.

37

87414

LUBE NIPPLE,1/4" - 28

4шт.

38

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

39

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

40

100038

NUT,M12 x 1.75, Cl 8

1шт.

41

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

42

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

43

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

4шт.

44

87362

WASHER,5/16" SAE

1шт.

45

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

46

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

47

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

1шт.

48

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

5шт.

49

87013660

SUPPORT

1шт.

50

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

5шт.

52

87026972

CAP

Stater Roll, RH

1шт.

53

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

54

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

5шт.

55

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

3шт.

56

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

57

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

58

87014413

TUBE,4.80 mm OD x 1850 mm L

1шт.

59

11787

FITTING,3/8"-24 Fem x 1/8" NPT

1шт.

60

84303

LUBE NIPPLE,1/8"-27 NPT x 1" lg, Fem

1шт.

61

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

1шт.

62

86580291

ADAPTER,1/8" - 27 x 1/4" - 28

1шт.

Not Illustrated

1шт.

63

13367

NUT,3/8" - 24

1шт.

Not Illustrated

1шт.

64

619248

BUSHING

1шт.

65

65553

BUSHING,44.53mm ID x 47.65mm OD x 31.75mm L

1шт.

66

86577603

BUSHING,98.6mm ID x 103.18mm OD x 25.4mm L

1шт.

67

620019

CLAMP

2шт.

Not Illustrated

1шт.

68

87034173

CABLE TIE,774.7mm L

CABLE STRAP

1шт.

Not Illustrated

1шт.

69

86640119

SPRING,Compression, 2.438" OD x 4.5" L

1шт.

70

9829364

CAP COVER

1шт.

71

86618213

SPECIAL BOLT,M12 x 40mm, Drilled

1шт.

72

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

1шт.

73

86977429

BUSHING,44.62mm ID x 50.93mm OD x 22.2mm L

2шт.

74

87660581

HUB

1шт.

75

45440

SNAP RING,#162, Ext

1шт.

76

87644681

SHIM,46mm ID x 60mm OD x 1.50mm Thk

3шт.

77

87660578

SPROCKET

Includes: (2) Ref. 79

1шт.

78

87660303

SPACER

1шт.

69

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

6шт.

Not Illustrated

1шт.

Выбрано товаров: 85
