Запчасти Case IH RB464 (18.92) - DIA KIT, CHAIN OILER (18) - ACCESSORIES

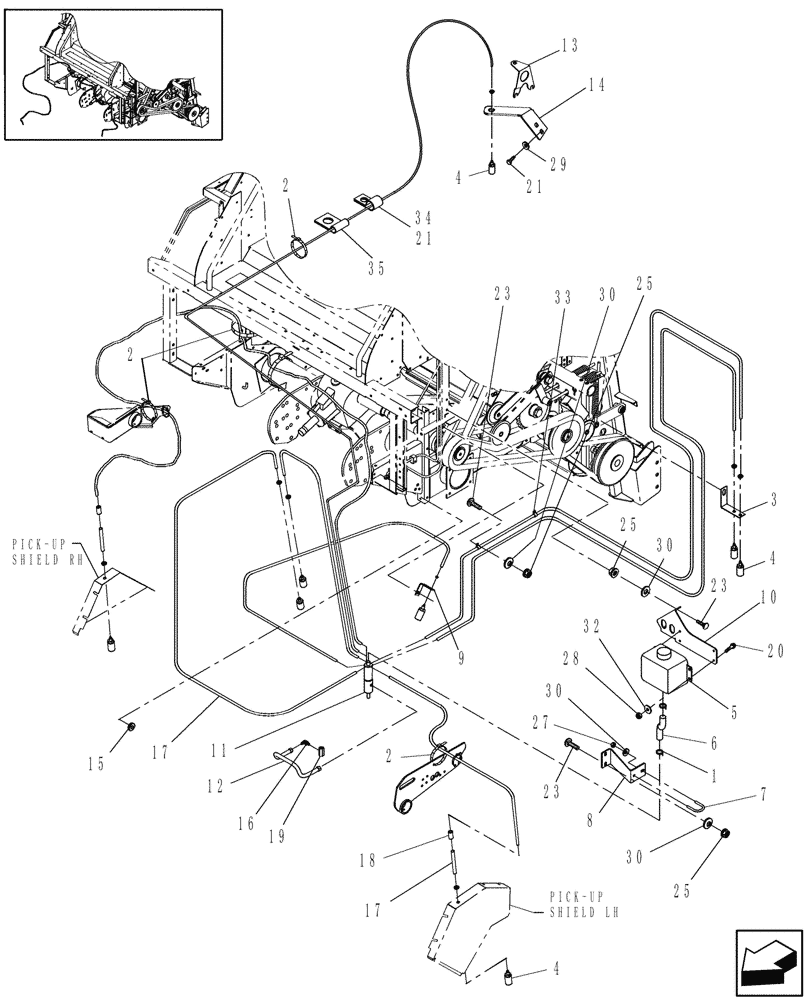

Схема запчастей Case IH RB464 - (18.92) - DIA KIT, CHAIN OILER (18) - ACCESSORIES
25
23
30
30
27
29
33
6
20
34
25
13
4
15
2
16
30
23
25
32
23
2
4
21
18
35
17
12
8
14
5
1
2
21
4
9
10
7
30
3
19
28
17
11

Артикул

Название

Примечание

Количество

1

87588787

DIA KIT, HARVESTER

Chain Oiler

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

249730

SECURING STRAP,8" L

14шт.

3

86631455

ANGLE

1шт.

Use Existing Hardware

1шт.

3

87013976

ANGLE

Offset

1шт.

Offset Bracket Used Only on Balers Equipped with a Standard Pickup

1шт.

4

9822519

COMMUTATOR BRUSH

8шт.

5

87721915

TANK

1шт.

6

87037450

HOSE

5/8" OD x 12"

1шт.

7

86977434

U-BOLT,5/16" - 20 x 1.94" W x 2.50" L

5/16"-18 x 1.94" x 2.50"

1шт.

8

87541725

MOUNTING PLATE

1шт.

9

86618552

ANGLE

1шт.

Use Existing Hardware

1шт.

10

87541724

MOUNTING PLATE

Tank

1шт.

11

87040807

PUMP

Chain Oiler

1шт.

12

850420

FLEXIBLE HOSE

1шт.

13

87023512

BRACKET

Offset

1шт.

Rotor Units Only

1шт.

14

87586930

BRACKET

1шт.

Stuffer Units Only

1шт.

15

625670

GROMMET

1шт.

16

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

1/4" Tube, Includes: O-Ring

1шт.

17

9848970

PLASTIC-RUBBER TUBE,3.96mm OD x 10973mm L

Lube Line, .156" OD x 10' (approx. 41' required)

1шт.

Cut to Size Required

1шт.

18

86521981

REDUCER,5/32" Hose Barb x 5/32" Hose Barb

Dbl, Barbed

2шт.

19

87656363

HYD CONNECTOR,3/4" - 16 x 3/4" - 16 x 7/16" - 20 x 2-1/8" L

Straight Thread

1шт.

20

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

21

87667

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

5шт.

23

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

5шт.

25

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

27

9635082

NUT,5/16" - 18, Gr 5

2шт.

28

353308

NUT,M6 x 1.0, Cl 8

4шт.

29

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

30

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

32

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

4шт.

33

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

34

86050346

CLAMP,9.5mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

35

675162

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

36

86618630

ANGLE

1шт.

Use on Balers Built with P.I.N. Y7N020454 & Prior

1шт.

37

87023511

MOUNTING PARTS

1шт.

Use on Balers Built with P.I.N. Y7N020454 & Prior

1шт.

38

86618553

ANGLE

1шт.

Use on Balers Built with P.I.N. Y7N020454 & Prior

1шт.

Выбрано товаров: 45
