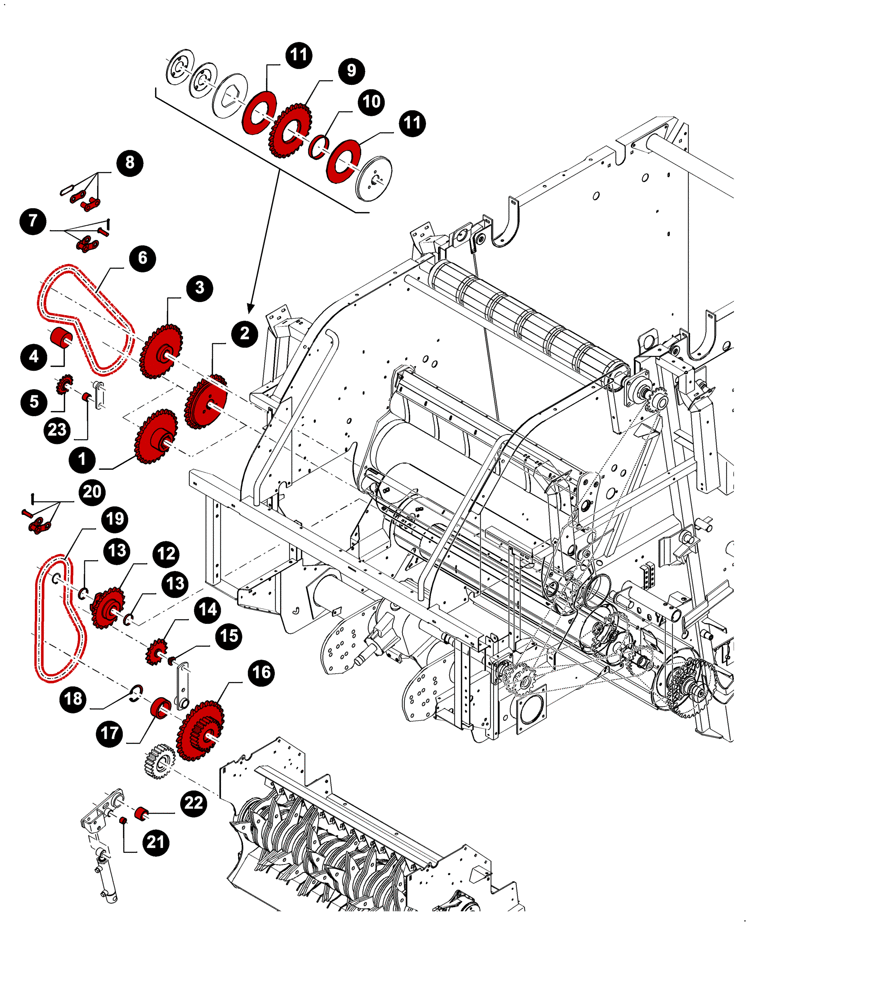

Запчасти Case IH RB464 (00.00RB214) - MAINTENANCE PARTS, MAIN DRIVE RH (00) - GENERAL

1

87056511

SPROCKET

28T, RC 60, Fixed roll, Stuffer feeder

1шт.

FOR RB454 ONLY

1шт.

1

87660324

SPROCKET

15T, RC 80, Fixed roll, Stuffer feeder

1шт.

FOR RB464 ONLY

1шт.

2

9621054

CLUTCH ASSEMBLY

Slip, Fixed roll, Rotor, (9, 11)

1шт.

3

86610109

SPROCKET

28T, Rotor, RC 60

1шт.

3

87660330

SPROCKET

28T, Stuffer feeder

1шт.

FOR RB454 ONLY

1шт.

3

87660325

SPROCKET,15T

Stuffer feeder

1шт.

FOR RB464 ONLY

1шт.

4

86514717

IDLER WHEEL

Nylon

1шт.

5

624618

DRIVEN SPROCKET

Idler, Rotor

1шт.

5

86627639

SPROCKET,15T

15T, Idler, (23)

1шт.

6

86621149

CHAIN,60, 57 Links x 19.05mm = 1085.85mm

RC 60, 57 total links, (7, 8)

1шт.

6

87627269

CHAIN (AG),80, 38 Links x 25.4mm = 965.2mm

Stuffer feeder, (7)

1шт.

FOR RB464 ONLY

1шт.

7

86595275

OFFSET LINK

1шт.

8

165590

CONNECTING LINK

1шт.

9

87017555

DRIVEN SPROCKET

28T, Slip clutch, (10)

1шт.

10

9825987

BUSHING,76.2mm ID x 82.68mm OD x 9.86mm L

1шт.

11

127434

DISC,77.7mm ID x 146mm OD x 3.56mm Thk

Friction, Slip clutch

2шт.

12

86705498

SPROCKET

22T, Standard mechanical rotor feeder reverse clutch, (13)

1шт.

12

87045574

CLUTCH

24T, Optional mechanical rotor feeder reverse clutch, (13)

1шт.

INCREASES ROTOR SPEED BY 5%

1шт.

NORTH AMERICA

1шт.

12

87660578

SPROCKET

Hydraulic rotor feeder & rotor cutter reverse clutch, (13)

1шт.

EUROPE & R.O.W.

1шт.

13

86977429

BUSHING,44.62mm ID x 50.93mm OD x 22.2mm L

2шт.

14

NS

NOT SERVICED

SPROCKET 13T, PN. 87050058, Plastic, Production only, (15)

1шт.

Steel service sprocket (66614) & plastic production sprocket ( 87050058) are interchangable

1шт.

14

66614

SPROCKET,RC80, 13T

13T, Steel, Service only, (15)

1шт.

Steel service sprocket (66614) & plastic production sprocket ( 87050058) are interchangable

1шт.

15

66553

BALL BEARING,16.13mm ID x 40mm OD x 12.12mm W

1шт.

16

87609664

SPROCKET

23T/33T, (17, 18)

1шт.

17

86635027

TAPERED BEARING,49mm ID x 84mm OD x 48mm W

1шт.

18

100-21334

SNAP RING,3.346", Int, #334

1шт.

19

84246881

CHAIN,#80, 60 Links x 25.4mm = 1506mm

RC 80, RH rotor drive

1шт.

P.I.N. Y9N043085 & AFTER

1шт.

19

86611956

CHAIN,RC 80, 59 Links x 25.4mm = 1498.6mm

RC 80, Includes (20) & connecting link, RH rotor drive

1шт.

20

86977428

CONNECTING LINK

RC 80, offset

1шт.

21

619248

BUSHING

1шт.

EUROPE & R.O.W.

1шт.

22

65553

BUSHING,44.53mm ID x 47.65mm OD x 31.75mm L

1шт.

EUROPE & R.O.W.

1шт.

23

66553

BALL BEARING,16.13mm ID x 40mm OD x 12.12mm W

1шт.
