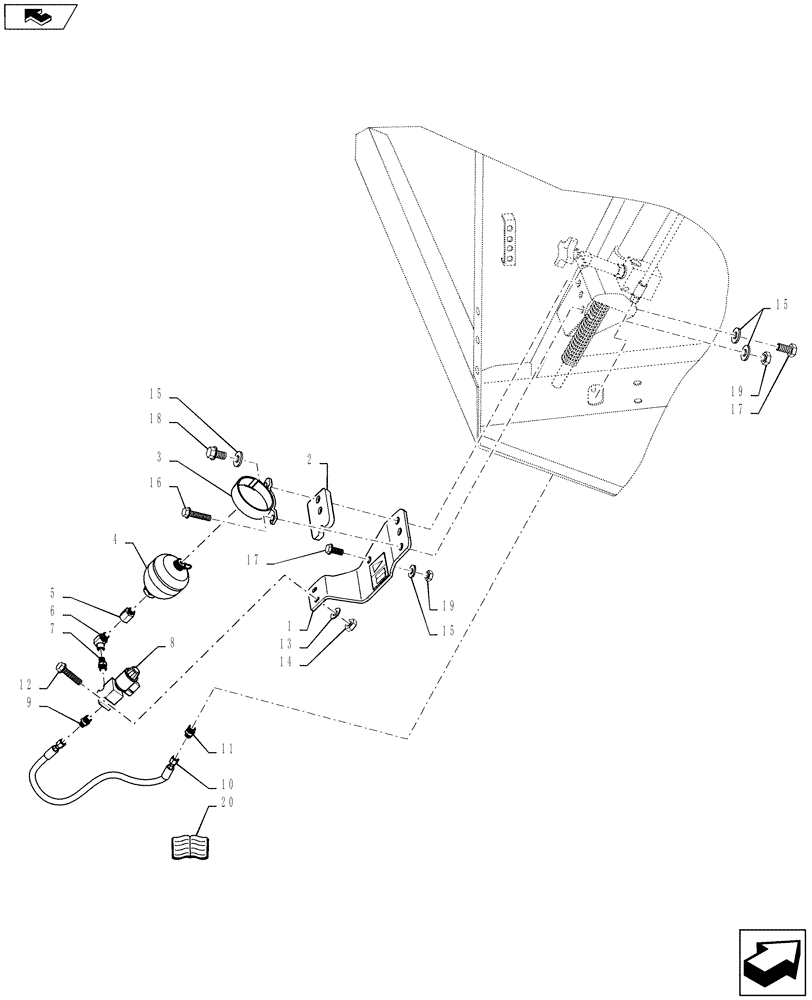

Запчасти Case IH RB464 (18.86[2]) - DIA KIT, DENSITY CYLINDER SYSTEM PRE-CHARGE (18) - ACCESSORIES

1

84548403

SUPPORT

1шт.

2

84533319

MOUNT

1шт.

3

87750434

CLAMP

1шт.

4

84532089

ACCUMULATOR

Diaphragm, 0.32L

1шт.

5

195492

ADAPTER,3/4" - 16 ORB x 9/16" - 18

1шт.

6

86836953

ELBOW,9/16" - 18 ORB x 9/16" - 18 ORB

90°, -6 ORB. Female

1шт.

7

9846669

HYD CONNECTOR,9/16" - 18 Male x 9/16" - 18 Male

Union, Straight Thread

1шт.

8

84563959

MANIFOLD

8SZ, 2-Way, 2-Pos.

1шт.

9

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

10

86643513

HOSE,0.38" ID x 24.00", SAE 100R17

1шт.

11

87267034

ORIFICE,9/16" - 18 Male JIC x 9/16" - 18 Female JIC, 1.91mm ID

6FJ x 6MJ w/ 1,91 Orifice

1шт.

12

86511840

BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8

2шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

14

353308

NUT,M6 x 1.0, Cl 8

2шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

16

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

1шт.

17

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

18

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

19

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

20

84532081

INSTRUCTION

Density Pre-Charge Kit

1шт.
