(18.85[5]) - DIA KIT, DENSITY CYLINDER SYSTEM BYPASS, HYDRAULIC MANIFOLD

Запчасти Case IH RB464 (18.85[5]) - DIA KIT, DENSITY CYLINDER SYSTEM BYPASS, HYDRAULIC MANIFOLD (18) - ACCESSORIES

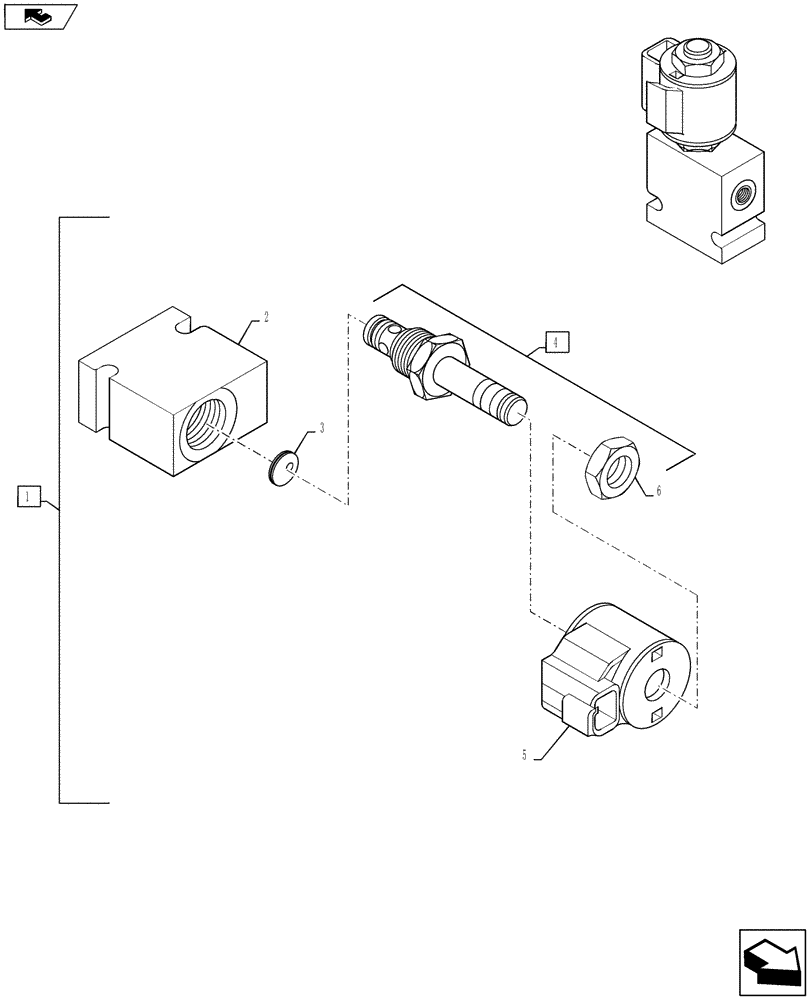

Схема запчастей Case IH RB464 - (18.85[5]) - DIA KIT, DENSITY CYLINDER SYSTEM BYPASS, HYDRAULIC MANIFOLD (18) - ACCESSORIES
5
home
1
2
4
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84493051

HYDRAULIC MANIFOLD

Hydraulic Manifold

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

277548A2

ORIFICE

0.93" Dia.

1шт.

4

87692445

VALVE

NC, Solenoid Cartridge, Includes: Ref. 6

1шт.

5

87640493

COIL

2 Pin, 12V

1шт.

6

NSS

NOT SOLD SEPARAT

Cartridge Nut

1шт.
