Запчасти Case IH RB464 (18.85[3]) - DIA KIT, DENSITY CYLINDER SYSTEM BYPASS, HYDRAULIC CONTROL WIRE HARNESS (18) - ACCESSORIES

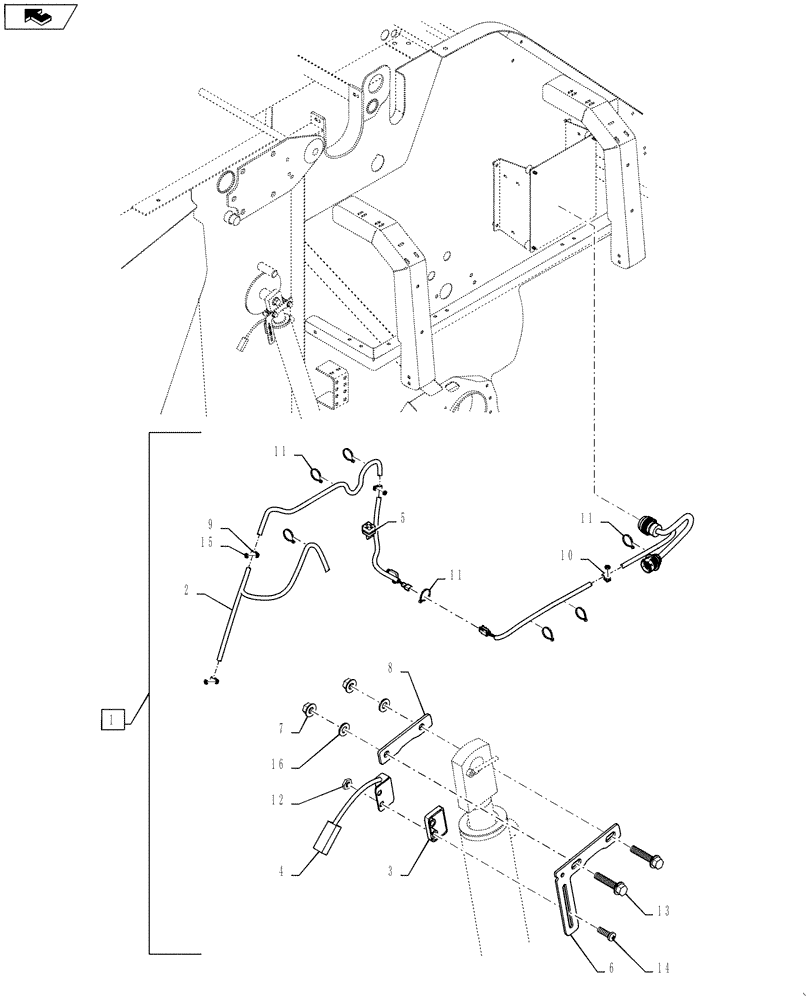

Схема запчастей Case IH RB464 - (18.85[3]) - DIA KIT, DENSITY CYLINDER SYSTEM BYPASS, HYDRAULIC CONTROL WIRE HARNESS (18) - ACCESSORIES
5
11
3
home
9
15
10
6
11
12
13
16
7
2
11
4
14
1
8

Артикул

Название

Примечание

Количество

1

84493501

DIA KIT, HARVESTER

Density Cylinder System Bypass, Hydraulic Control Wire Harness

1шт.

2

84483760

WIRE HARNESS

Hydraulic Control

1шт.

3

86624468

SPACER,1.65" L x 5/16” Thk

1шт.

4

86594422

SENSOR

1шт.

MAINTENANCE PART

1шт.

5

82017871

RELAY,12V, 20A

1шт.

MAINTENANCE PART

1шт.

6

84483530

SUPPORT

1шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

8

84483528

SUPPORT

1шт.

9

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

8шт.

10

700514

CLAMP,3.8mm, Coat, M8 Bolt

1шт.

11

86566989

CABLE TIE,208mm L

CABLE STRAP

11шт.

12

86900323

NUT,#10 - 24

2шт.

13

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

2шт.

14

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

2шт.

15

380426

SCREW,Flng, M6 x 10mm

6шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

Выбрано товаров: 18
