Запчасти Case IH RB464 (18.85[2]) - DIA KIT, DENSITY CYLINDER SYSTEM BYPASS, HYDRAULIC VALVE & PIPES (18) - ACCESSORIES

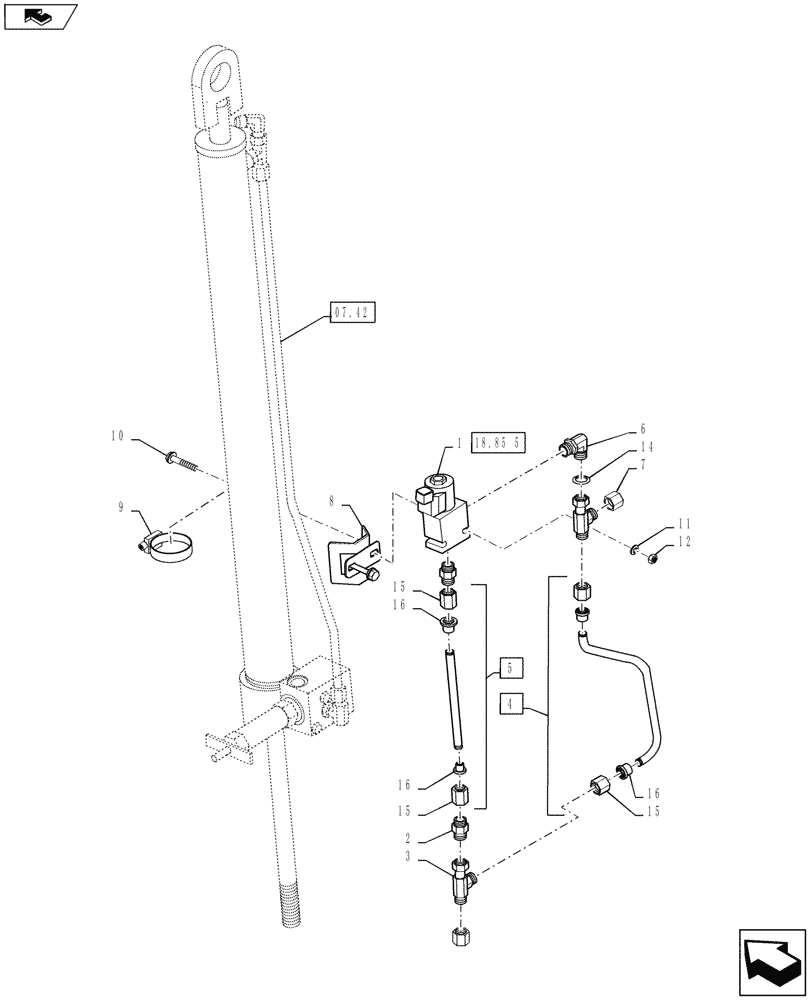

Схема запчастей Case IH RB464 - (18.85[2]) - DIA KIT, DENSITY CYLINDER SYSTEM BYPASS, HYDRAULIC VALVE & PIPES (18) - ACCESSORIES
07.42
6
14
16
5
15
3
16
11
7
16
9
4
home
1
15
2
15
8
10
12
18.85 5

Артикул

Название

Примечание

Количество

1

84493051

HYDRAULIC MANIFOLD

1шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Includes: Ref. 14

2шт.

3

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

3шт.

4

84488921

HYD TUBE

Includes: (2) Ref. 15 & (2) Ref. 16

1шт.

5

84488923

HYD TUBE

Includes: (2) Ref. 15 & (2) Ref. 16

1шт.

6

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

7

574342

CAP,9/16" - 18 JIC

1шт.

8

84483532

SUPPORT

1шт.

9

82012728

COLLAR,50mm - 65mm, Worm Gear

1шт.

10

86511840

BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8

2шт.

11

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

12

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

13

84484161

INSTRUCTION

1шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

136658

TUBE NUT,0.72" Length

4шт.

16

235670

SLEEVE,37 Degree, 3/8" Tube

4шт.

Выбрано товаров: 16
