Запчасти Case IH RB464 (18.75) - DIA KIT, 1.8M ROTOR WINDGUARD ROLLER (18) - ACCESSORIES

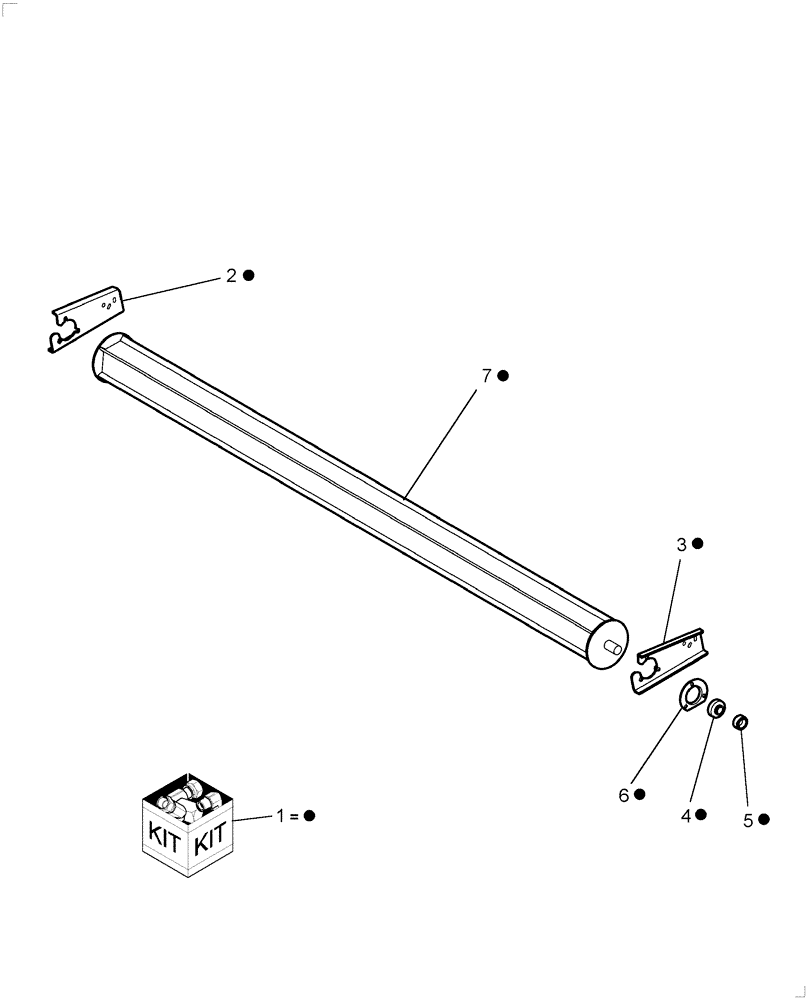

Схема запчастей Case IH RB464 - (18.75) - DIA KIT, 1.8M ROTOR WINDGUARD ROLLER (18) - ACCESSORIES
3
1
7
5
6
4
2

Артикул

Название

Примечание

Количество

1

87758317

DIA KIT, HARVESTER

1.8M Rotor Windguard Roller

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87039204

END PLATE

RH

1шт.

3

87039203

ARM

LH

1шт.

4

574844

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

2шт.

5

38260

COLLAR

Locking, Includes: Set Screw

2шт.

6

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

4шт.

7

87532588

ROLLER,146mm OD x 2109.3mm L

1шт.

8

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

Not Illustrated

1шт.

9

9706690

NUT,M8 x 1.25, Cl 8

6шт.

Not Illustrated

1шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

Not Illustrated

1шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

12шт.

Not Illustrated

1шт.

12

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

Not Illustrated

1шт.

Выбрано товаров: 18
