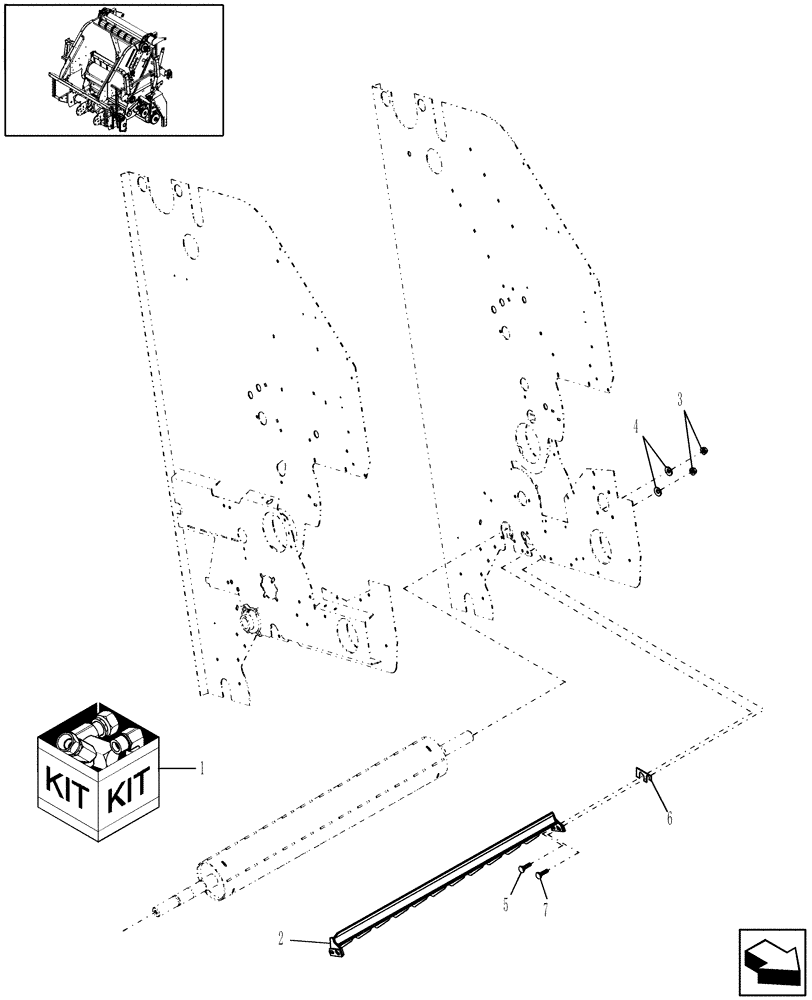

Запчасти Case IH RB464 (18.65) - DIA KIT, STARTER ROLL RAKE (18) - ACCESSORIES

1

87665289

DIA KIT, HARVESTER

Starter Roll Rake, Includes: Ref. 2 - 7 & Installations Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87042113

RAKE

1шт.

3

825-1410

NUT,M10, Cl 8

4шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

5

811-10040

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8

2шт.

6

87020987

SHIM

4шт.

7

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.
