Запчасти Case IH RB464 (18.60) - DIA KIT, CROP SAVER WHEEL (18) - ACCESSORIES

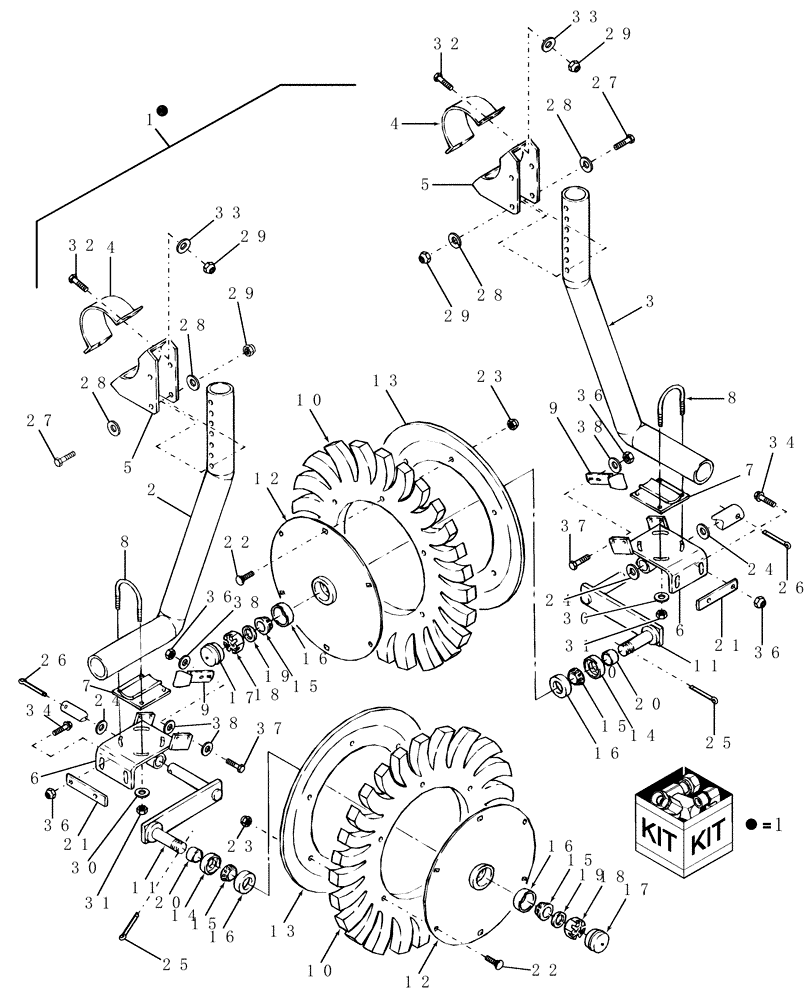

Схема запчастей Case IH RB464 - (18.60) - DIA KIT, CROP SAVER WHEEL (18) - ACCESSORIES
16
30
34
24
21
8
17
30
19
36
38
37
3
23
8
1
31
28
16
9
33
15
13
18
1
15
2
4
33
26
29
20
34
29
5
17
25
37
6
30
29
14
11
28
20
13
18
26
27
6
16
22
31
32
10
22
24
4
36
21
23
12
10
38
14
38
25
24
27
29
15
16
5
12
28
32
9
7
11
1
28
15
7
36
36
19

Артикул

Название

Примечание

Количество

1

87016424

DIA KIT, HARVESTER

Crop Saver Wheel, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

86625972

TUBE

1шт.

3

86625973

TUBE

1шт.

4

86636578

SECURING STRAP

Clamp

2шт.

5

86625978

SUPPORT ASSY.

2шт.

6

86625979

CHANNEL

2шт.

7

796772

MOUNTING PLATE

2шт.

8

850056

U-BOLT

G5, 3/8"-16 x 3-1/2"

4шт.

9

86636984

LATCH

2шт.

10

9845426

WHEEL

Wheel

2шт.

11

86636995

BAR

2шт.

12

86636747

DISC

2шт.

13

86625976

RING ASSY.

2шт.

14

136376

SEAL,31.75mm ID x 50.42mm OD x 6.75mm Thk

2шт.

15

D29266

ROLLER BEARING,1" ID x 0.58"

4шт.

16

572564R1

BEARING CUP

4шт.

17

200734

HUB CAP

Plated

2шт.

18

603373

JAM NUT,Slotted, 1" - 14, Gr 2

Jam, G2, 1"-14

4шт.

19

26301

WASHER

1-1/2" OD, Special

2шт.

20

86634544

SEALING RING COLLAR

2шт.

21

9842022

BAR

2шт.

22

433-528

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 3/4", Gr 5

12шт.

23

232-4145

LOCK NUT,5/16"-18, GC

12шт.

24

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

6шт.

25

432-1220

COTTER PIN,3/16" x 1 1/4"

2шт.

26

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

27

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

4шт.

28

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

12шт.

29

232-4148

NUT,1/2"-13, GC

8шт.

30

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

8шт.

31

232-4146

NUT,3/8"-16, GC

8шт.

32

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

33

122432

WASHER,17mm ID x 41mm OD x 6mm Thk

5/8", Hardened

4шт.

34

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

4шт.

35

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

36

231-4144

NUT,1/4"-20, GB

4шт.

37

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

38

495-11028

WASHER,1/4", SAE

6шт.

Выбрано товаров: 39
