(18.58) - DIA KIT, DUCKBILL TRASH BAFFLE

Запчасти Case IH RB464 (18.58) - DIA KIT, DUCKBILL TRASH BAFFLE (18) - ACCESSORIES

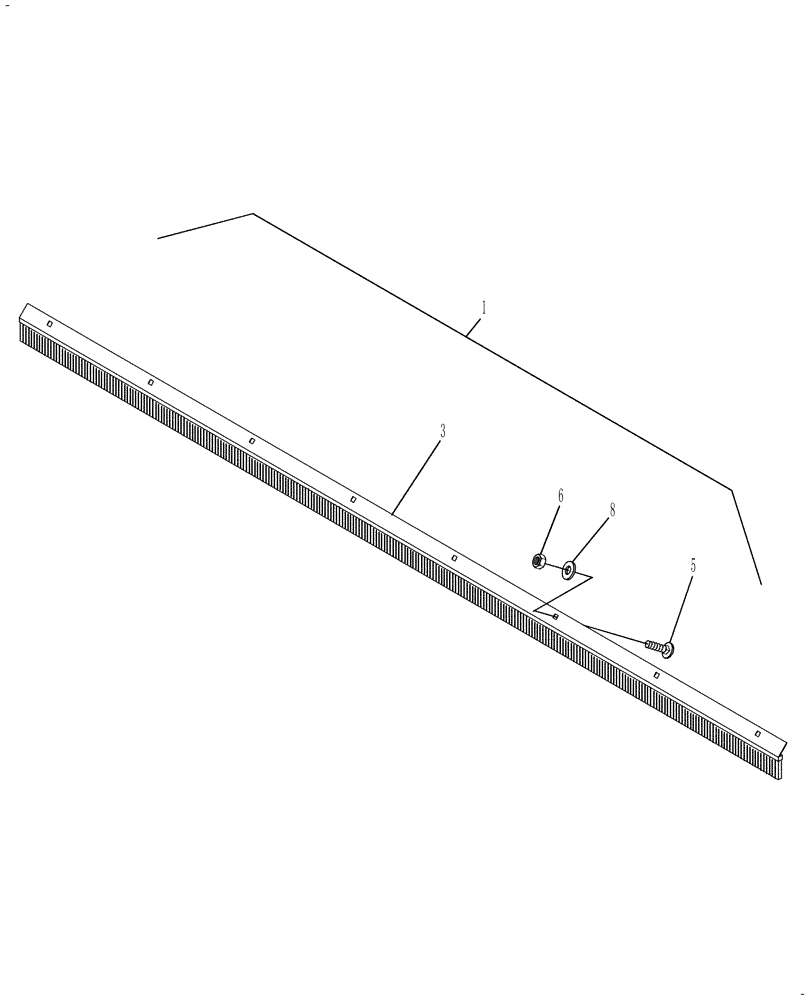

Схема запчастей Case IH RB464 - (18.58) - DIA KIT, DUCKBILL TRASH BAFFLE (18) - ACCESSORIES
6
3
8
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87736316

DIA KIT, HARVESTER

Duckbill Trash Baffle, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

3

87735808

BRUSH

1шт.

5

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

8шт.

6

825-1406

NUT,M6, Cl 8

8шт.

8

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.
