Запчасти Case IH RB464 (18.49) - DIA KIT, SCRAPER, SERPENTINE ROLLERS (18) - ACCESSORIES

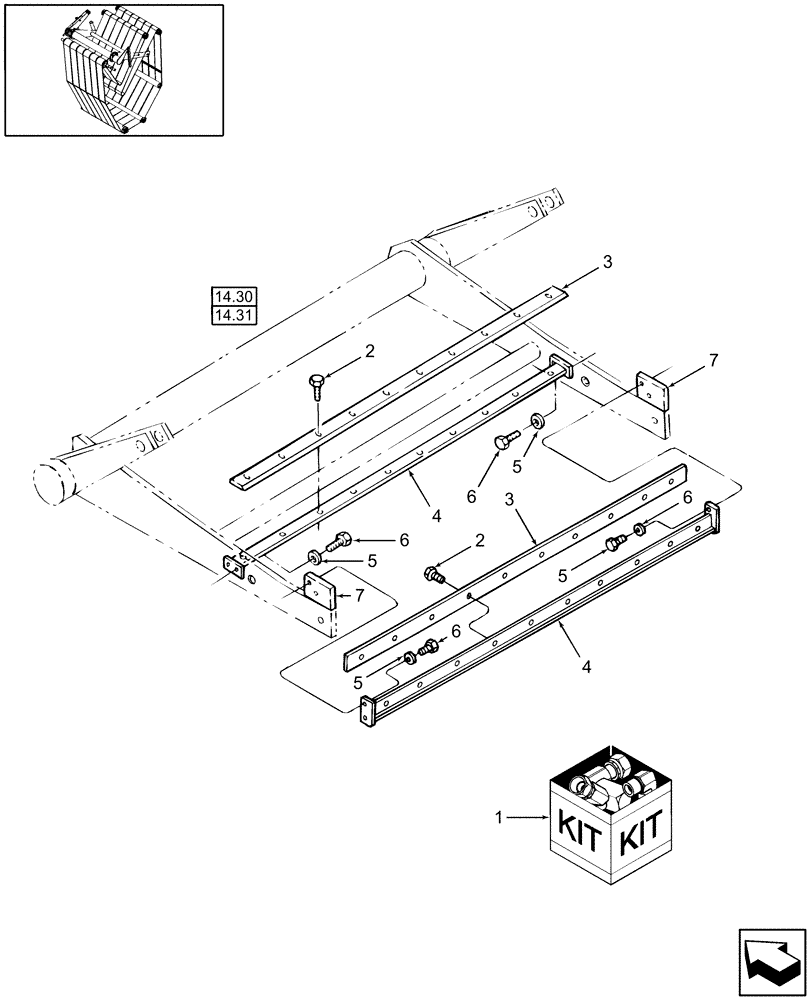

Схема запчастей Case IH RB464 - (18.49) - DIA KIT, SCRAPER, SERPENTINE ROLLERS (18) - ACCESSORIES
6
4
5
7
3
3
14.30
14.31
4
6
1
5
2
2
6
5
6
5
7

Артикул

Название

Примечание

Количество

1

86643782

DIA KIT, HARVESTER

Serpentine Scraper, Includes: Ref. 2 - 7 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

905-8020

BOLT,Hex Flg, M8 x 20mm

16шт.

3

9845575

SCRAPER BLADE

2шт.

4

87010760

ANGLE

2шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

6

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

8шт.

7

86637019

SUPPORT

2шт.

Выбрано товаров: 8
