Запчасти Case IH RB464 (18.37) - DIA KIT, DECLUTCH, NORTH AMERICA (18) - ACCESSORIES

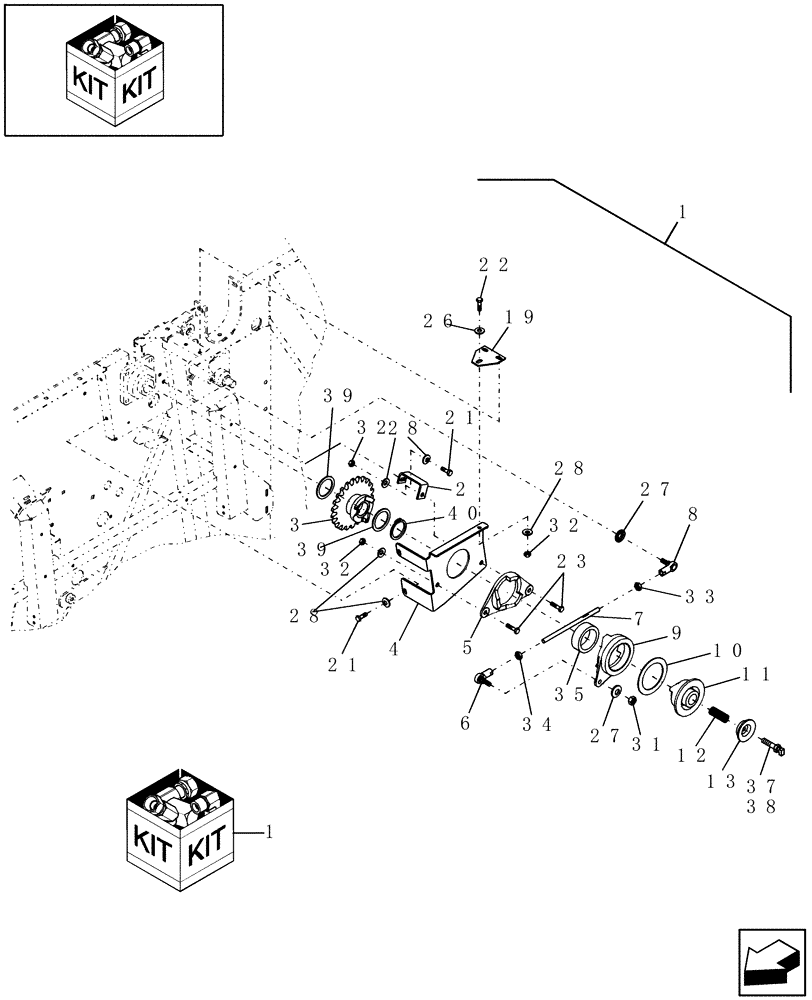

Схема запчастей Case IH RB464 - (18.37) - DIA KIT, DECLUTCH, NORTH AMERICA (18) - ACCESSORIES
11
28
21
3
23
13
32
19
12
39
21
37
32
9
1
33
6
10
28
39
1
32
26
8
28
31
4
40
7
35
38
34
22
27
5
2
27

Артикул

Название

Примечание

Количество

1

87012422

DIA KIT, HARVESTER

Declutch, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

86631542

SUPPORT

1шт.

3

86563108

SPROCKET

1шт.

4

86633039

SUPPORT

1шт.

5

86565352

HUB

Inner

1шт.

6

86978072

ROD

1шт.

7

86558631

ROD

1шт.

8

86978073

ROD

1шт.

9

86630841

HUB

Outer, Includes: Ref. 35

1шт.

10

86630617

WASHER

1шт.

11

86630729

CLUTCH

Half

1шт.

12

86836941

SPRING

Compression

1шт.

13

86836940

CAP

1шт.

18

86579369

BUSHING

Installation Fixture

1шт.

Not Illustrated

1шт.

19

86631541

PLATE

1шт.

21

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

3шт.

22

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

3шт.

23

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

26

9820489

WASHER

M10

3шт.

27

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

2шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

31

425-118

NUT,1/2"-20, G5

1шт.

32

825-1410

NUT,M10, Cl 8

8шт.

33

88722

JAM NUT,Jam, 1/2"-20, G2, LH

1шт.

34

87309

JAM NUT,Jam, 1/2"-20, G2

1шт.

35

86577603

BUSHING,98.6mm ID x 103.18mm OD x 25.4mm L

1шт.

37

86618213

SPECIAL BOLT,M12 x 40mm, Drilled

Cap, HH, M12 x 1.75 x 40, W/ Hole Drilled Lenghwise

1шт.

38

691873

ELBOW,90 Degree Elbow, 1/8" Male NPT x 1/8" Female NPT

90°, Swivel

1шт.

39

9808110

WASHER,46mm ID x 60mm OD x 1.64mm Thk

1шт.

40

100-11162

SNAP RING,#162, Ext

1шт.

Выбрано товаров: 32
