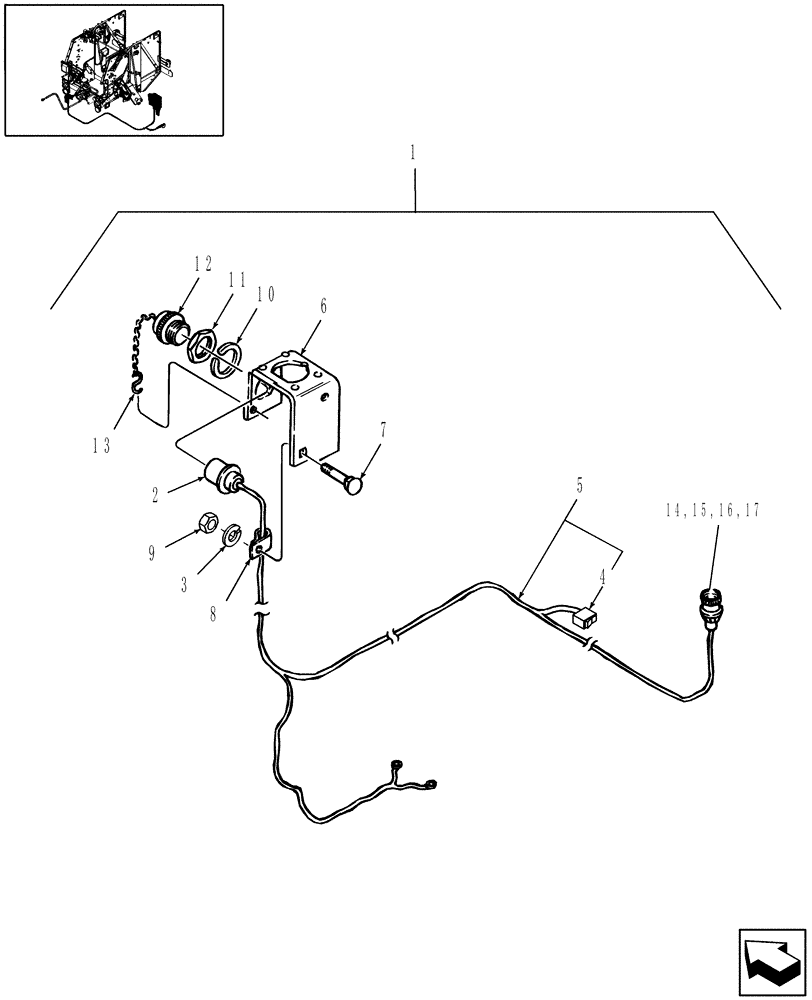

Запчасти Case IH RB464 (18.25) - DIA KIT, MAIN CAB HARNESS (18) - ACCESSORIES

1

87023029

DIA KIT, HARVESTER

Main Cab Harness, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

9861362

POWER SOCKET

18 Pin

1шт.

3

492-11025

LOCK WASHER,1/4"

1шт.

4

86605661

SWITCH

Remote Override

1шт.

5

87010118

WIRE HARNESS

Tractor

1шт.

6

787868

BRACKET

1шт.

7

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

8

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

1шт.

9

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

10

636665

LOCK WASHER,43.18mm ID x 52.68mm OD x 1.57mm Thk

1шт.

11

636666

NUT,1 11/16"-18

1шт.

12

767456

PLUG

Dust

1шт.

13

617887

HOOK

S

1шт.

14

9622758

COUPLING RING

1шт.

15

9602128

KIT

Contacts

1шт.

16

850072

COLLAR CLAMP

1шт.

17

9602122

KIT

Connector

1шт.
