Запчасти Case IH RB464 (18.12) - DIA KIT, LARGE TIRE (18) - ACCESSORIES

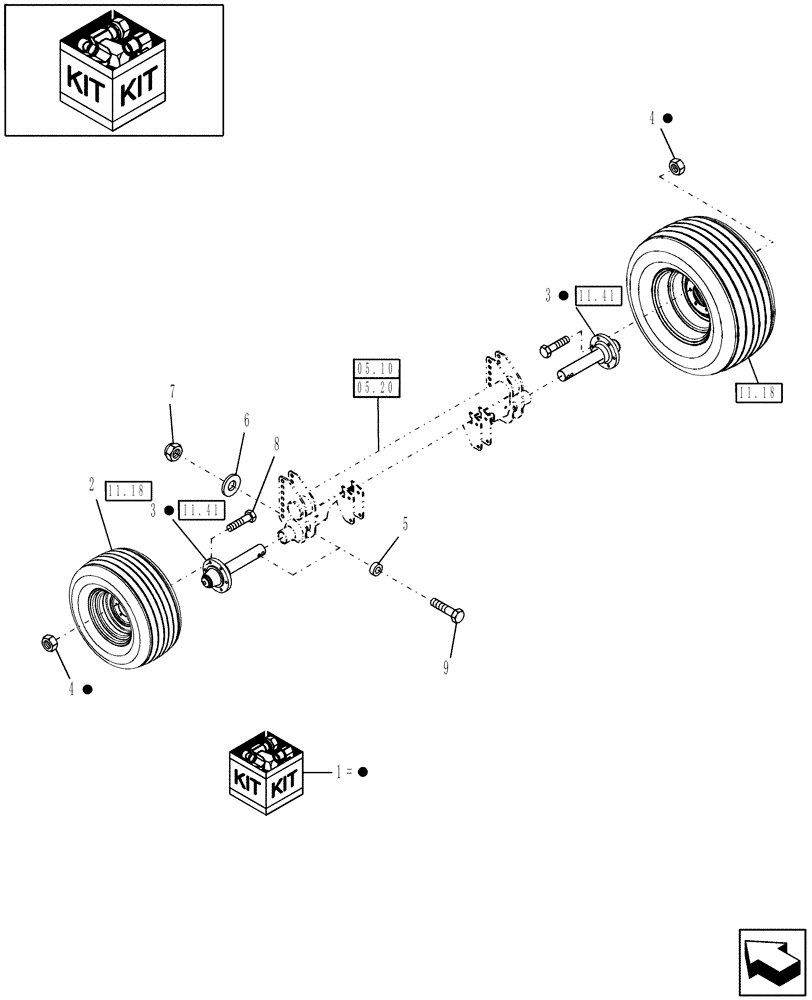

Схема запчастей Case IH RB464 - (18.12) - DIA KIT, LARGE TIRE (18) - ACCESSORIES
2
3
9
5
4
7
6
11.18
11.41
05.20
05.10
11.41
4
8
11.18
3

Артикул

Название

Примечание

Количество

1

87045058

DIA KIT, HARVESTER

Large Tire

1шт.

2

0C

ORDER COMPONENTS

Tire & Wheel

2шт.

3

0C

ORDER COMPONENTS

Wheel & Spindle, Heavy Duty, Dk. Gray, Refer to Fig. 11.41

2шт.

4

86625632

WHEEL NUT,Hex, M18 x 1.5

Wheel, M18 x 1.5 UNF

12шт.

5

86641937

SPACER,16.6mm ID x 31.75mm OD x 12.7mm Thk

2шт.

Not Included in Kit. Use Existing Part. Refer to Installation Instructions.

1шт.

6

122432

WASHER,17mm ID x 41mm OD x 6mm Thk

Hardened, 5/8"

2шт.

Not Included in Kit. Use Existing Part. Refer to Installation Instructions.

1шт.

7

832-46416

NUT,M16 x 2, Cl 8

2шт.

Not Included in Kit. Use Existing Part. Refer to Installation Instructions.

1шт.

8

87018139

BOLT

Wheel, M18 x 1.5

12шт.

Not Included in Kit. Shown for Reference Only.

1шт.

9

814-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

2шт.

Not Included in Kit. Use Existing Part. Refer to Installation Instructions.

1шт.

Выбрано товаров: 14
