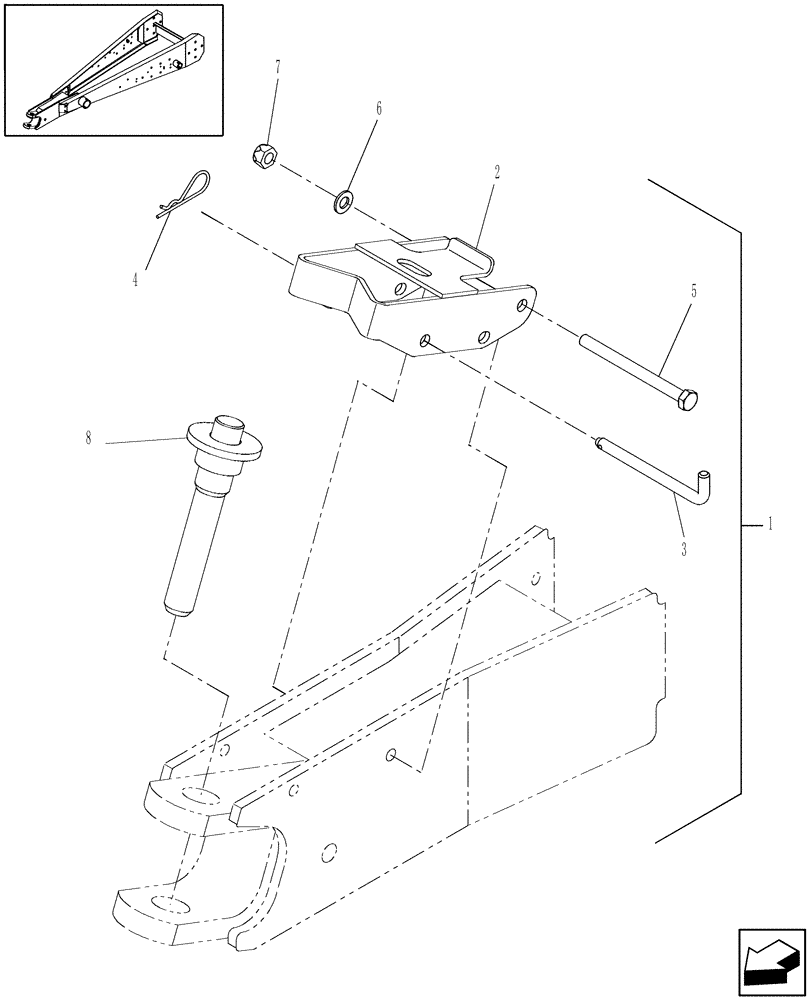

Запчасти Case IH RB464 (18.08) - DIA KIT, LOCKING HITCH PIN (18) - ACCESSORIES

1

84131631

KIT

Locking Hitch Pin, Includes: Installation instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87715252

SUPPORT

1шт.

3

87706664

PIN,9.5mm OD

1шт.

4

129365

COTTER PIN

1шт.

5

86508574

BOLT,Hex, M10 x 120mm, Cl 8.8

1шт.

6

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

7

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

8

87666884

PIN

1шт.
